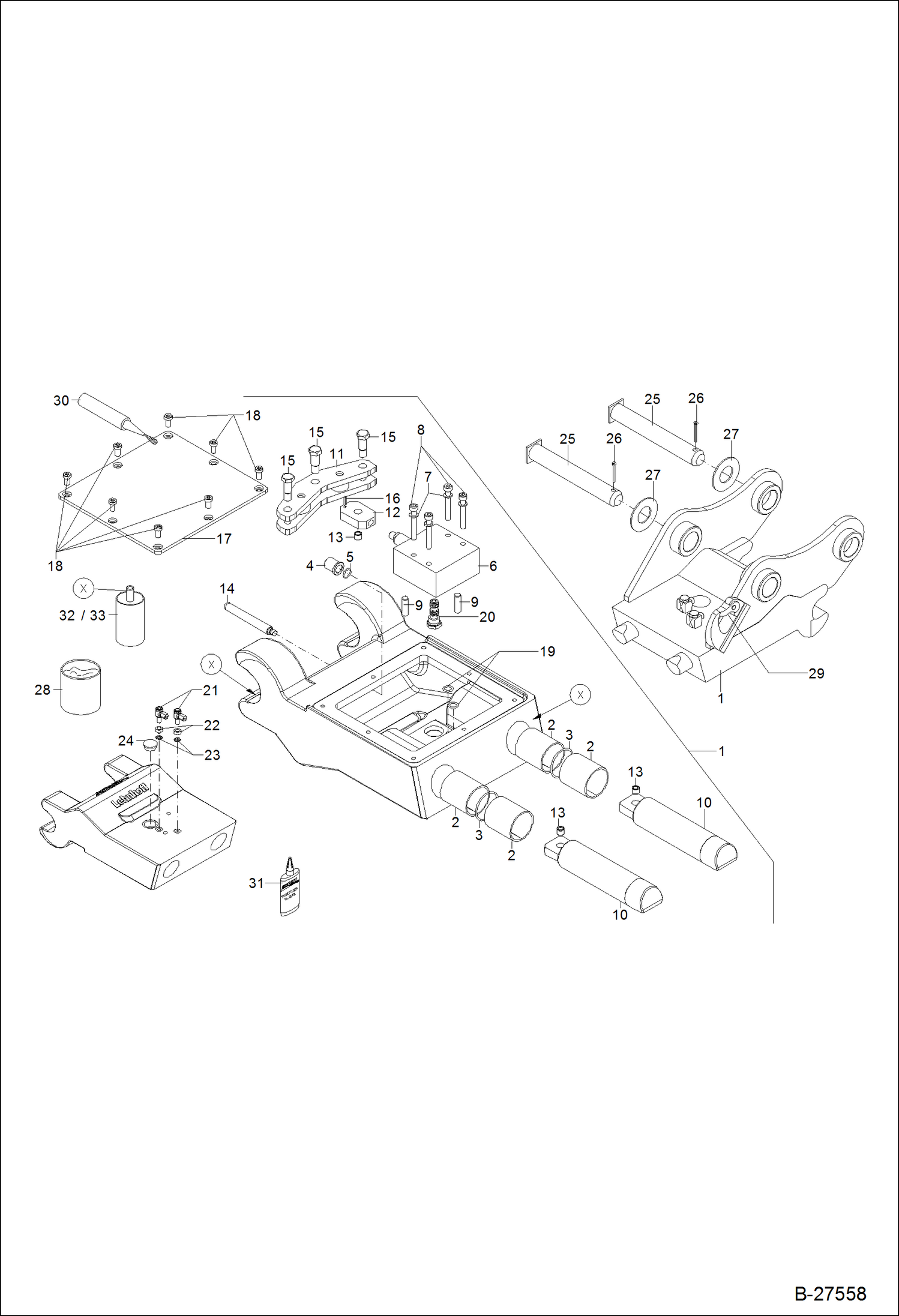

Запчасти Bobcat ZX125 HYDRAULIC QUICK MOUNT HITCH - HS08 ACCESSORIES & OPTIONS

1

5455660761

HITCH, QUICK MOUNT CPL.

2

5455660493

BUSHING

3

5455660497

O-RING

4

5455660818

BUSHING

5

5455660499

O-RING

6

5455660769

HYDRAULIC CYLINDER

7

5455660502

SPRING WASHER

8

5455660819

BOLT

9

5455660820

PIN

10

5455700079

PIN

11

5455700080

PIVOTED LEVER

12

5455700081

CILINDER EYE

13

5455700082

BUSHING

14

5455700083

STUD INDCIATOR

15

5455700084

BOLT

16

5455700085

PIN ROLL

17

5455660817

COVER, PLATE

18

5455660821

BOLT

19

5455700086

O-RING

20

5455660770

CHECK VALVE

21

5455700076

FITTING

22

5455700077

SPACER RING

23

5455700078

SEAL RING

24

5455660822

PLUG

25

0211005045

PIN

26

1395707642

COTTER PIN

27

1309412430

WASHER

28

4315005053

GREASE, TUBE

29

5455700037

KIT, REPAIR hook

30

MCS001041A

SEAL JOINT

31

MCS001035A

GLUE

32

MCS005003A

SPRAY

33

MCS005002A

CLEANER, MOUNT QUICK
