Запчасти Bobcat ZX125 EVAPORATOR UNIT - G55S ACCESSORIES & OPTIONS

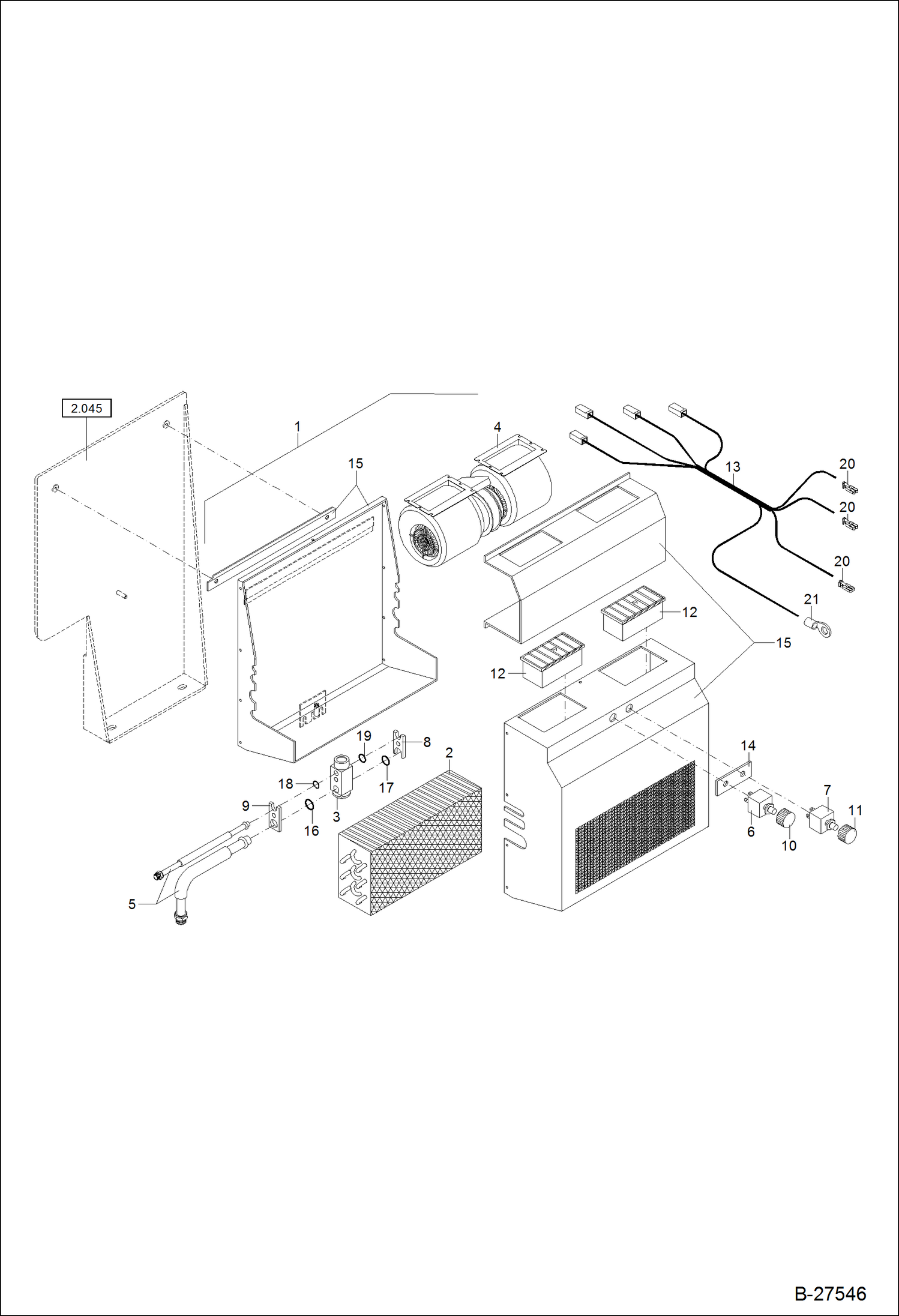

Схема запчастей Bobcat ZX125 - EVAPORATOR UNIT - G55S ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

5436662033

EVAPORATOR Ref. 2-19

2

5436662019

EVAPORATOR COIL

3

5436662022

VALVE

4

5436662028

BLOWER

5

5436662039

TUBING KIT

6

5436662008

THERMOSTAT W/Ref. 10

7

5436662027

SWITCH W/Ref. 11

8

5436662024

PLATE

9

5436662023

VACUUM ELEMENT

10

5436662029

BUTTON

11

5436662030

BUTTON

12

5436662018

AIR NOZZLE

13

5436662026

WIRE HARNESS

14

5436662031

COVER

15

5436662020

HOUSING

16

5436662117

O-RING

17

5821662084

O-RING

18

5821662083

O-RING

19

7031516

O-RING Was 5436662098

20

5350249552

CONNECTOR

21

5350246610

CABLE CONNECTOR

Выбрано товаров: 21
