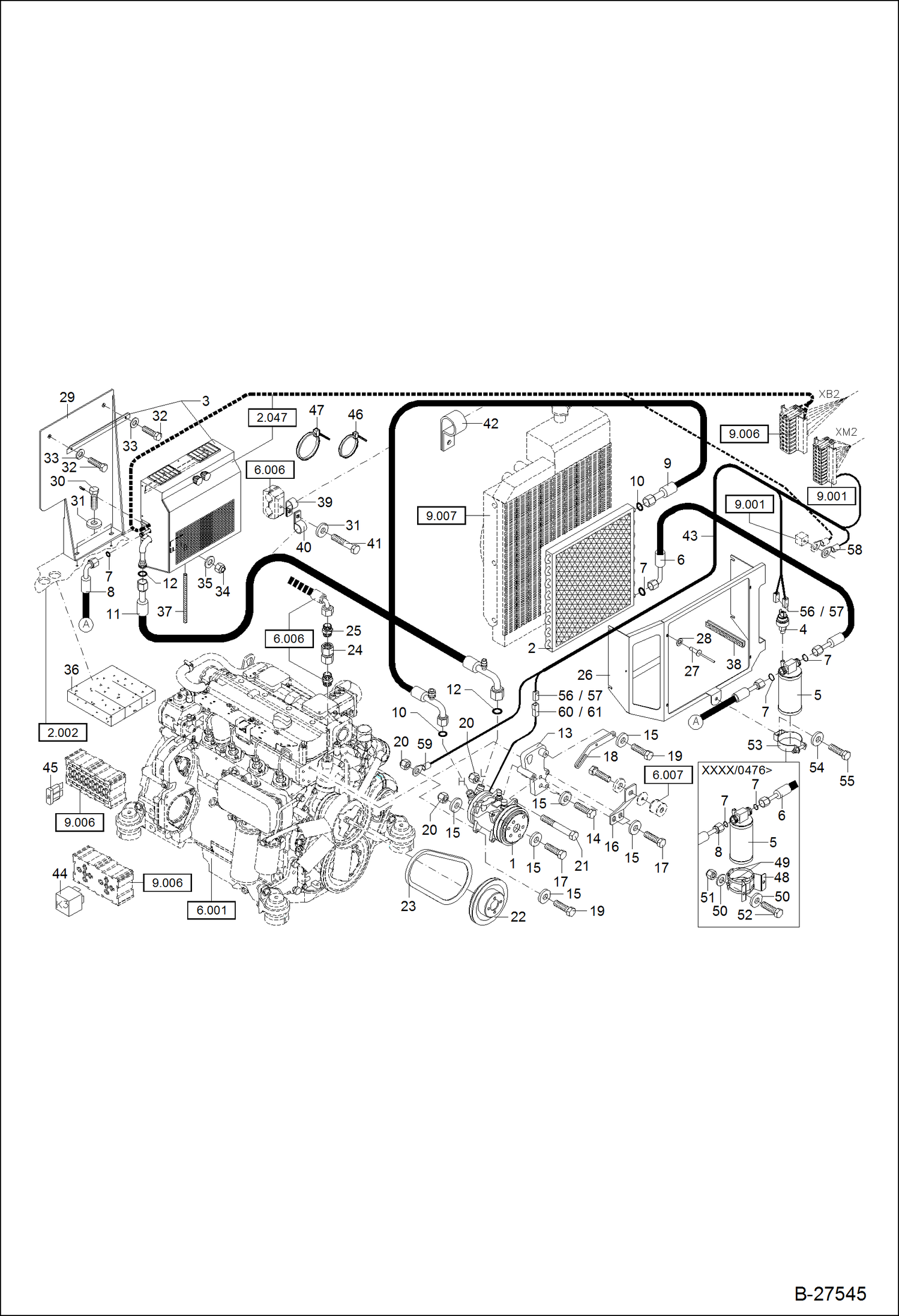

Запчасти Bobcat ZX125 AIR CONDITIONER ACCESSORIES & OPTIONS

1

5436662003

COMPRESSOR, A/C

2

5436662036

CONDENSER, A/C

3

7022922

EVAPORATOR Was 5436662033 - A

4

5436662006

PRESSURE SWITCH

5

5436662004

DRIER, A/C ASSY

6

5436662010

HOSE W/Ref. 7

7

5436662099

O-RING

8

5436662011

HOSE W/Ref. 7

9

5436662012

HOSE W/Ref. 10

10

7031516

O-RING Was 5436662098

11

5436662013

HOSE W/Ref. 12

12

5821662084

O-RING

13

6209771020

BRACKET

14

1008707324

BOLT

15

1343707059

WASHER

16

0209771010

BRACKET

17

1008707424

BOLT

18

6190271010

LEVER

19

1008707923

BOLT

20

1212251013

NUT

21

1007707625

BOLT

22

6209771007

V-BELT DRIVE CPL.

23

1490953883

V-BELT

24

1915060161

FITTING

25

1915060858

FITTING

26

0207772030

BRACKET

27

1940000939

RIVET

28

1307707012

WASHER

29

6183772012

BRACKET

30

1008707018

BOLT

31

1343707057

WASHER

32

1008707213

BOLT

33

1290707014

WASHER

34

1212251009

NUT

35

1343707055

WASHER

36

0190371015

INSULATION

37

0465515052

HOSE

38

5354600010

RUBBER PROFILE

39

5000136820

HOSE CLIP

40

5000210400

HOSE CLIP

41

1007707719

BOLT

42

5000210450

HOSE CLIP

43

0190272020

HARNESS W/Ref. 56-59

44

5050247318

MICRO RELAY

45

5050650266

FUSE

46

5653093560

BINDER

47

5350650280

BINDER

48

6207772040

SUPPORT BRACKET

49

5603320370

HOSE CLIP

50

1290707018

WASHER

51

1212251011

NUT

52

1008707018

BOLT

53

5436662005

BRACKET

54

1343707057

WASHER

55

1008707318

BOLT

56

5350249536

HOUSING

57

5350246815

FEM TERMINAL

58

5350249597

CABLE CONNECTOR

59

5350246600

CABLE CONNECTOR

60

5350249537

CONNECTOR MALE

61

5350247311

TERMINAL MALE
