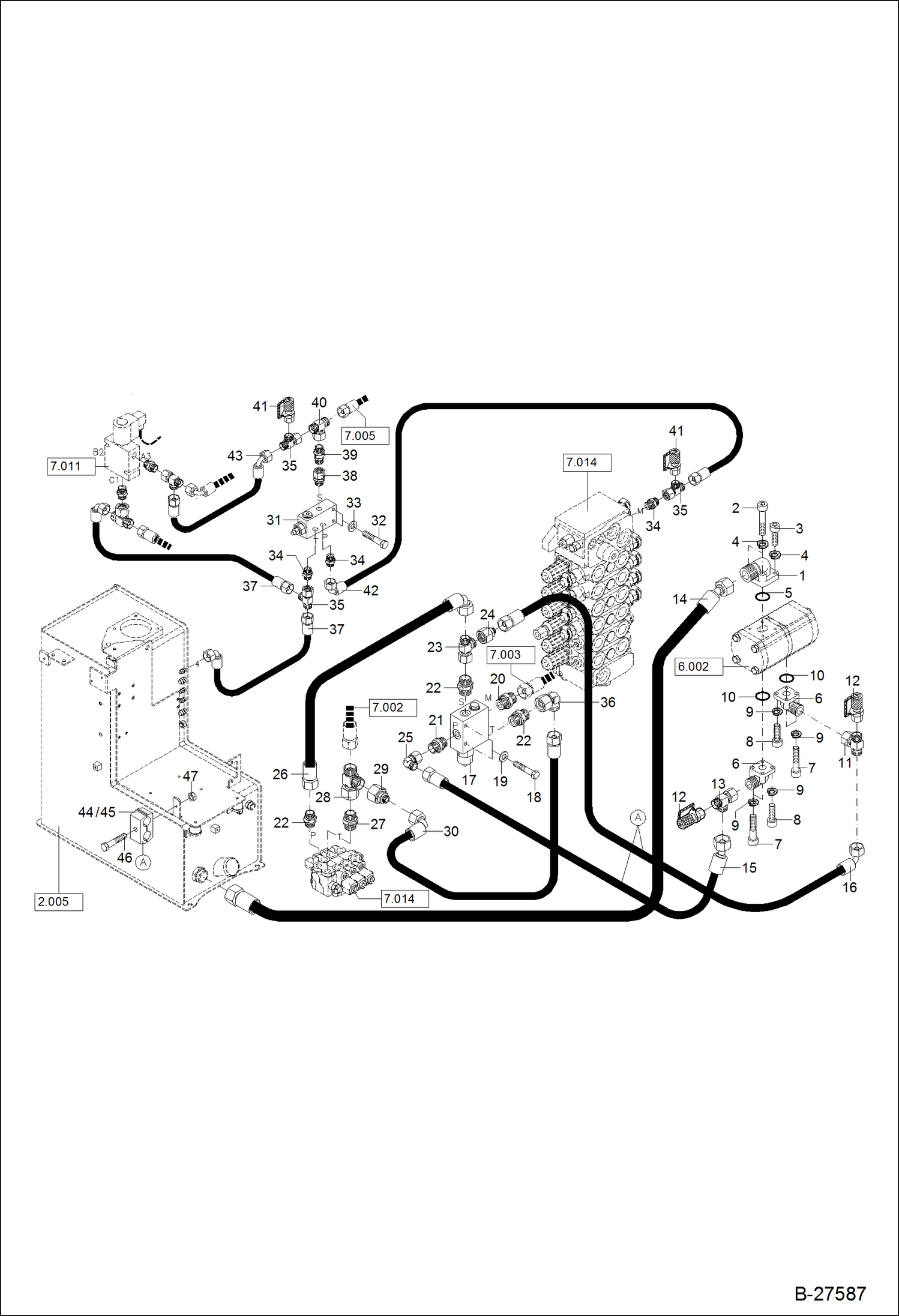

Запчасти Bobcat ZX125 HYDRAULIC INSTALLATION VALVE PLATE POWER UNIT

1

1938060314

FITTING W.Ref. 2-5

2

1045707919

BOLT

3

1045707318

BOLT

4

1321707018

SPRING WASHER

5

1970956621

O-RING

6

1938060303

FITTING W/Ref. 7-10

7

1045707813

BOLT

8

1045707313

BOLT

9

1321707014

SPRING WASHER

10

1970956120

O-RING

11

1919060154

FITTING

12

5066234220

METER CONNECTION

13

1919060354

FITTING

14

4140088203

HOSE

15

4262108368

HOSE

16

4262166375

HOSE

17

5260310212

DELIVERY VALVE

18

1007707719

BOLT

19

1290707018

WASHER

20

1915060555

FITTING

21

1915060264

FITTING

22

1915060265

FITTING

23

1919060355

FITTING

24

1934060164

FITTING

25

1924060154

ELBOW FITTING

26

4266063408

HOSE

27

1915060266

FITTING

28

1919060356

SOCKET

29

1934060170

FITTING

30

4118055156

HOSE

31

5520656620

PRESSURE REDUCER

32

1007707314

BOLT

33

1290707014

WASHER

34

1915060255

FITTING

35

1919060351

FITTING

36

1924060155

FITTING

37

4506047351

HOSE

38

1938060151

SCREW NECK

39

1915991752

ONE-WAY VALVE

40

1919060151

FITTING

41

5066234200

METER CONNECTION

42

4256071371

HOSE

43

4506060351

HOSE

44

5660199783

CLIP

45

5660200230

COVER PLATE

46

1007707619

BOLT

47

1212251011

NUT
