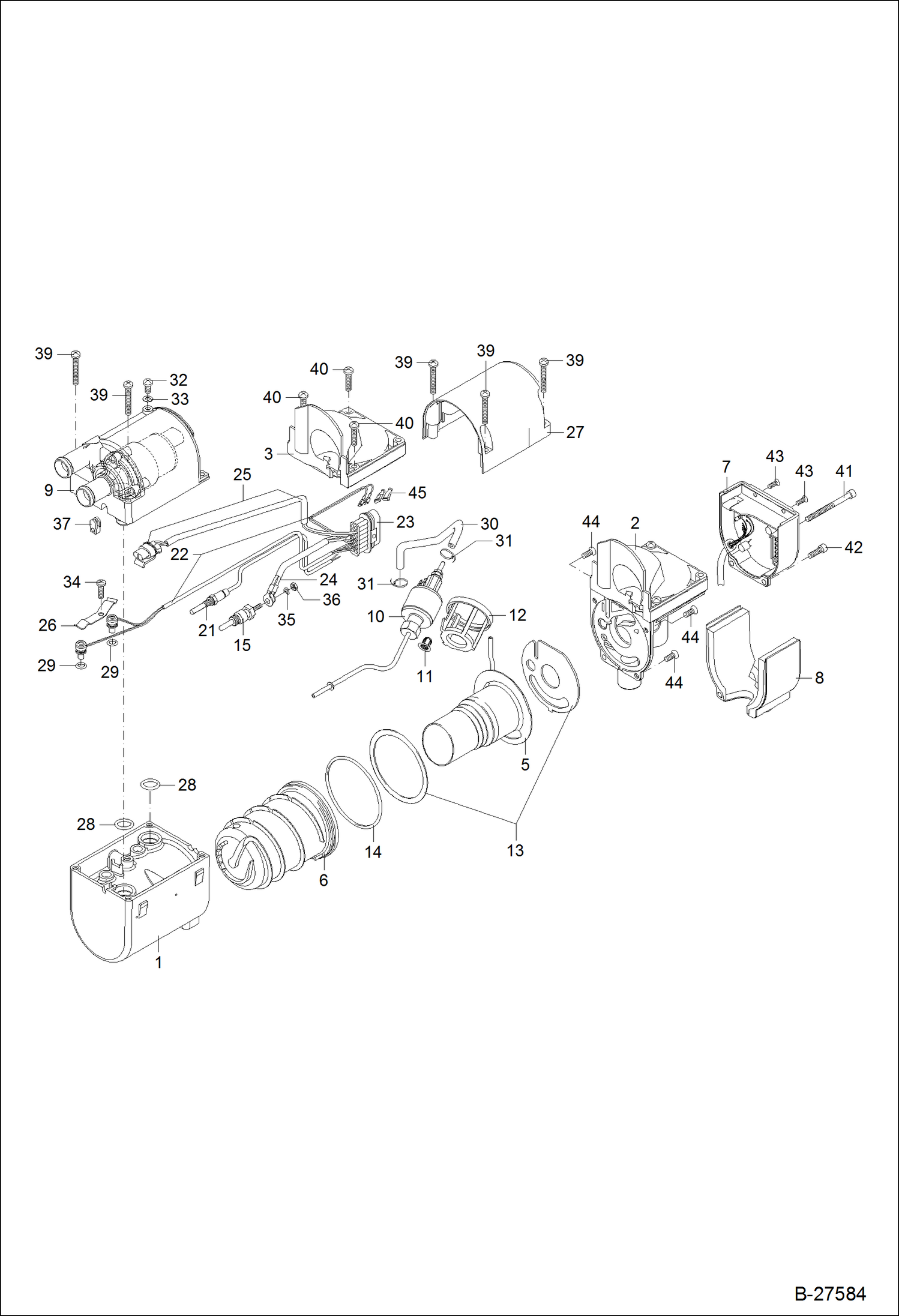

Запчасти Bobcat ZX125 DIESEL OPERATED HEATING HEATER POWER UNIT

1

5206660458

CASING

2

5206660459

FAN

3

5206660460

COVER

5

5206660461

BURNER

6

5206660326

EXCHANGER, HEAT

7

5206660462

UNIT, CONTROL

8

5206660463

COVER

9

5206660464

PUMP, MOUNTED

10

5206660465

PUMP, METERING

11

5206660356

CUP, SIEVE

12

5206660466

BRACKET

13

5206660342

SEAL, SET

14

5206660343

O-RING

15

5206660467

GLOW PLUG

21

5206660345

SENSOR, FLAME

22

5206660468

CABLE, HEATER

23

5206660341

PLUG, UNIT CONTROL

24

5206660469

CABLE, GLOW PLUG

25

5206660470

CABLE, WATER PUMP

26

5206660329

SPRING, COMPRESSION

27

5206660471

COVER

28

5206660472

O-RING

29

5206660330

O-RING

30

5206660473

HOSE

31

5206660474

BINDER

32

5206660475

SCREW, M4X10

33

5206660476

O-RING

34

5206660332

SCREW, M5X12

35

5206660333

WASHER, SPRING B4

36

5206660334

NUT, M4

37

5206660477

SLEEVE

39

5206660478

SCREW, M5X35

40

5206660335

SCREW, M5X25

41

5206660336

SCREW, M5X65

42

5206660337

SCREW, M5X16

43

5206660339

SCREW, M4X10

44

5206660340

SCREW, M5X12

45

5206660373

SLEEVE
