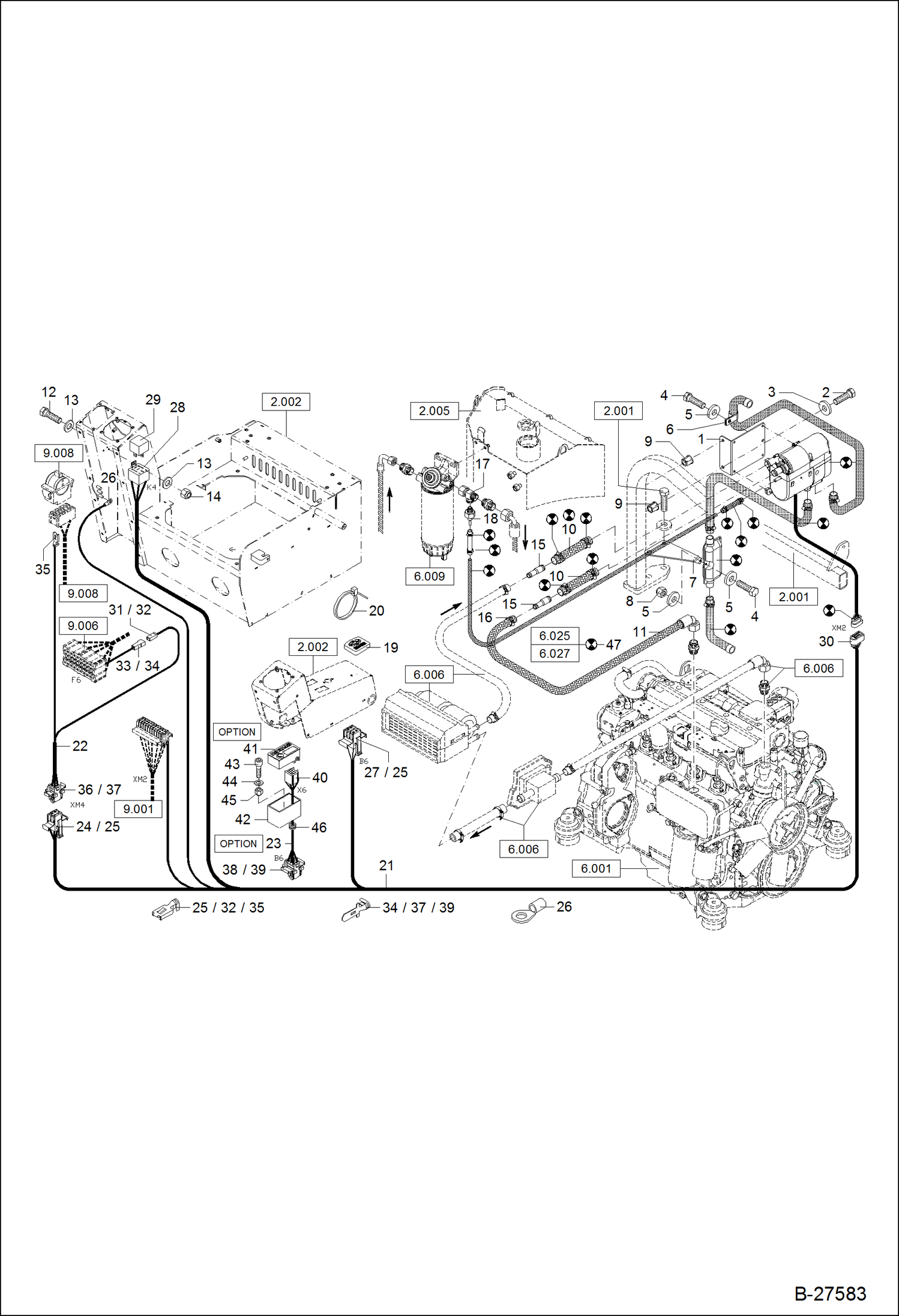

Запчасти Bobcat ZX125 DIESEL OPERATED HEATING INSTALLATION POWER UNIT

1

6207739010

BRACKET

2

1008707318

BOLT

3

1343707057

WASHER

4

1008707213

BOLT

5

1343707055

WASHER

6

5000210400

HOSE CLIP

7

6207739020

BRACKET

8

1212251009

NUT

9

1940707009

NUT, M6

10

6209230009

HOSE, PART

11

0207739040

HOSE

12

1008707909

BOLT

13

1290707012

WASHER

14

1212251007

NUT

15

0209230012

REDUCTION, PIECE

16

5660200090

CLAMP

17

1919060353

FITTING

18

6203388014

ADAPTER

19

5206660101

CLOCK

20

5653093560

BINDER

21

0207739031

HARNESS, WIRE ADDITIONAL HEATING W/Ref. 24-30

22

0207739032

HARNESS, WIRE SET W/Ref. 31-37

23

6207739033

HARNESS, WIRE TIME SWITCH W/Ref. 38-40

24

5350249682

HOUSING, FEMALE

25

5350249552

CONNECTOR

26

5350249597

CABLE CONNECTOR

27

5350249683

HOUSING (FEMALE)

28

5050247335

RELAY

29

5050336119

RELAY, 12V 20/30A

30

5050650497

HOUSING, FEMALE

31

5350249536

HOUSING

32

5350246805

TERMINAL FEMALE

33

5350249537

CONNECTOR MALE

34

5350247311

TERMINAL MALE

35

5350249552

CONNECTOR

36

5350249688

HOUSING, MALE

37

5350249695

MAL TERMINAL

38

5350249689

HOUSING(MALE)

39

5350249695

MAL TERMINAL

40

5350249755

HOUSING (FEMALE)

41

5206660170

TIME SWITCH

42

5206660279

HOUSING

43

1041707909

PAN HEAD SCREW

44

1307707012

WASHER

45

1212251007

NUT

46

CABLE COUPLING NLA - Was 5354285500 - A

47

5206660183

HEATER, CPL. (D5WSC/12V)
