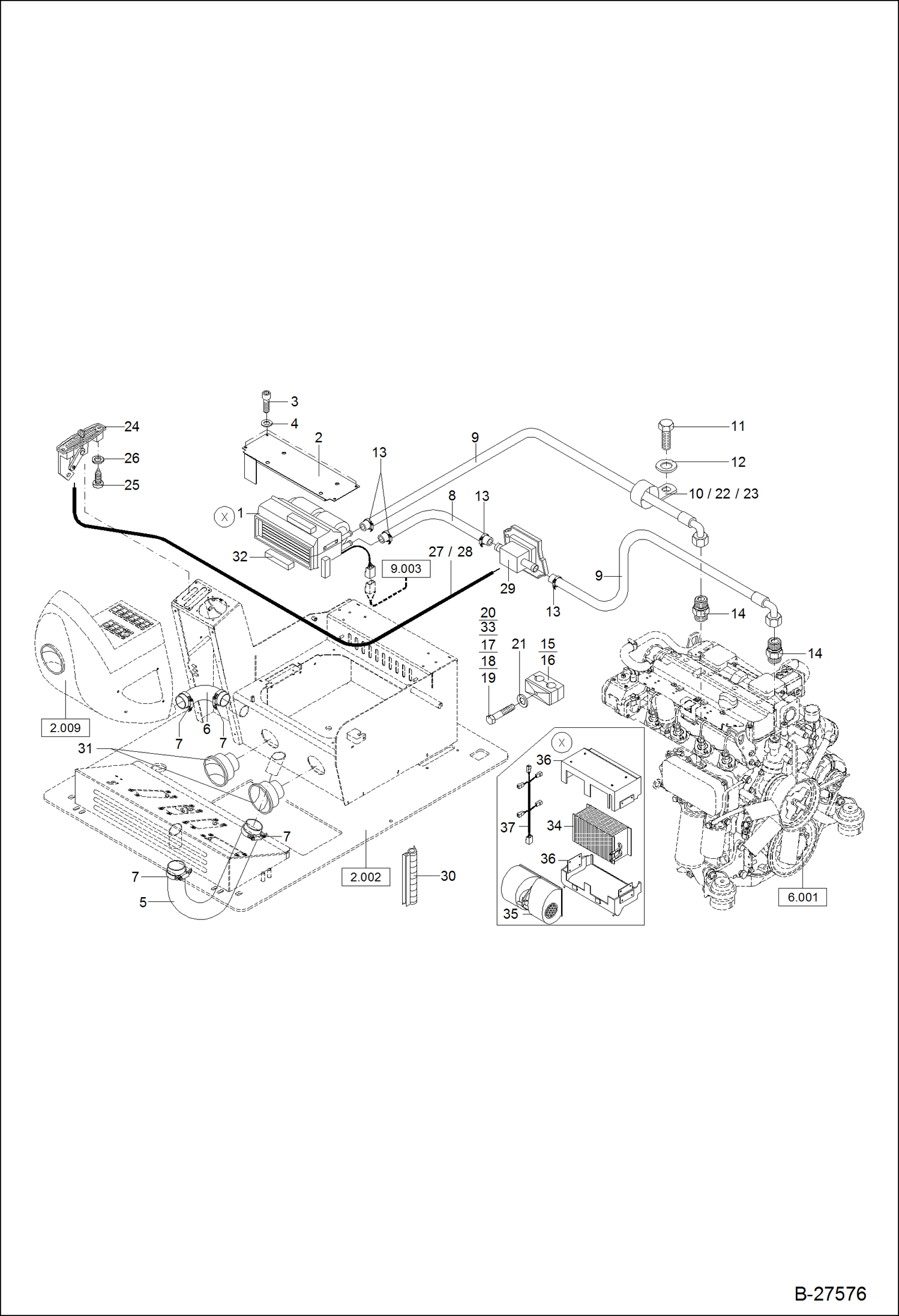

Запчасти Bobcat ZX125 HEATING S/N XXXX/0280 & Abv POWER UNIT

1

5169010010

HEATING W/Ref. 32 & 33

2

6190018004

COVER

3

1045707213

BOLT

4

1290707014

WASHER

5

5367628905

HOSE

6

7024567

HOSE, AIR - A

7

5660095300

HOSE CLIP

8

6398018004

HOSE Was 0398018004 - A

9

0209018010

HOSE

10

5000210420

HOSE CLIP

11

1008707018

BOLT

12

1343707057

WASHER

13

5660200090

CLAMP

14

1915060666

FITTING

15

5660199785

HOSE CLIP

16

5660200230

COVER PLATE

17

1007707319

BOLT

18

1007707619

BOLT

19

1007707719

BOLT

20

1007707220

BOLT

21

1290707018

WASHER

22

5000136820

HOSE CLIP

23

5000136700

HOSE CLIP

24

5388662385

REGULATOR

25

1090707742

SCREW

26

1307707012

WASHER

27

5388662389

BOWDEN CABLE

28

1290707012

WASHER

29

5388662602

HEATER VALVE

30

5354255965

SEALING SECTION

31

5688329382

NOZZLE

32

5354640128

NEOPRENE STRIP

33

1007707519

BOLT

34

5169100027

HEAT EXCHANGE

35

5169010007

FAN Ws 5169100028 - A

36

5169010010

HEATING Was 5169100029 - A

37

5169100030

WIRE HARNESS
