Запчасти Bobcat ZX125 ELECTRIC INSTALLATION BOOM HEIGHT LIMITATION - MONO BOOM ELECTRICAL SYSTEM

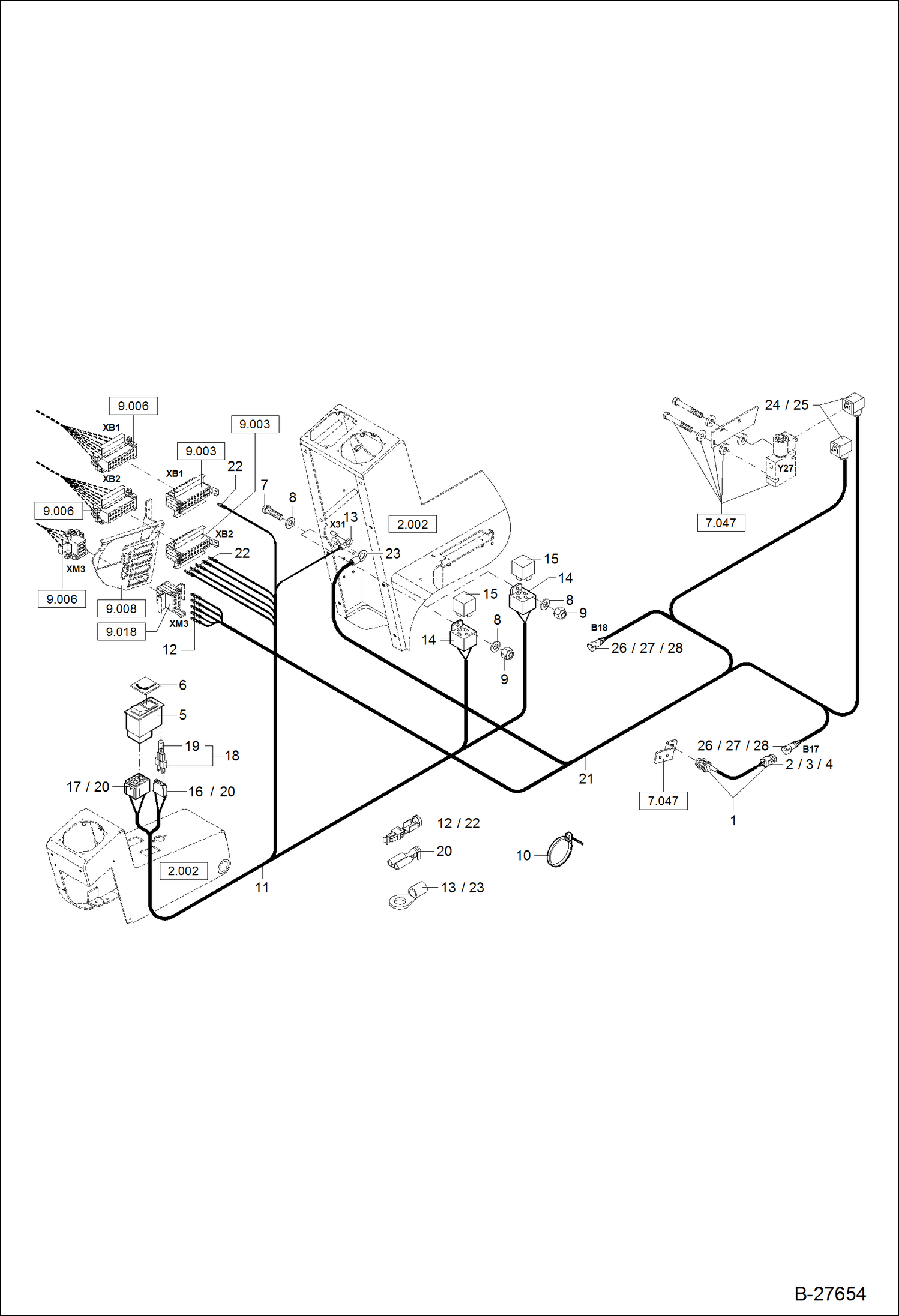

Схема запчастей Bobcat ZX125 - ELECTRIC INSTALLATION BOOM HEIGHT LIMITATION - MONO BOOM ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

5350639017

SWITCH W/Ref. 2-4

2

5350555315

HOUSING (MALE)

3

5350555307

LOCK

4

5350555321

MALE TERMINAL

5

5050651363

ROCKER SWITCH

6

5358650266

SYMBOL

7

1008707909

BOLT

8

1290707012

WASHER

9

1212251007

NUT

10

5653093560

BINDER

11

0207741030

HARNESS, WIRE Ref. 12-20

12

5350249552

CONNECTOR

13

5350246610

CABLE CONNECTOR

14

5050093090

RELAY BRACKET

15

5050247335

RELAY

16

5050650231

HOUSING

17

5050650225

HOUSING

18

5050650226

LAMP

19

1813000021

ROUND BULB

20

5350246805

TERMINAL FEMALE

21

0207741031

HARNESS, WIRE Ref. 22-28

22

5350249552

CONNECTOR

23

5350249597

CABLE CONNECTOR

24

5552659550

BOX W/Ref. 25

25

5552659513

SEAL

26

5350555317

HOUSING (FEMALE)

27

5350555308

LOCK

28

5350555325

FEMALE TERMINAL

Выбрано товаров: 28
