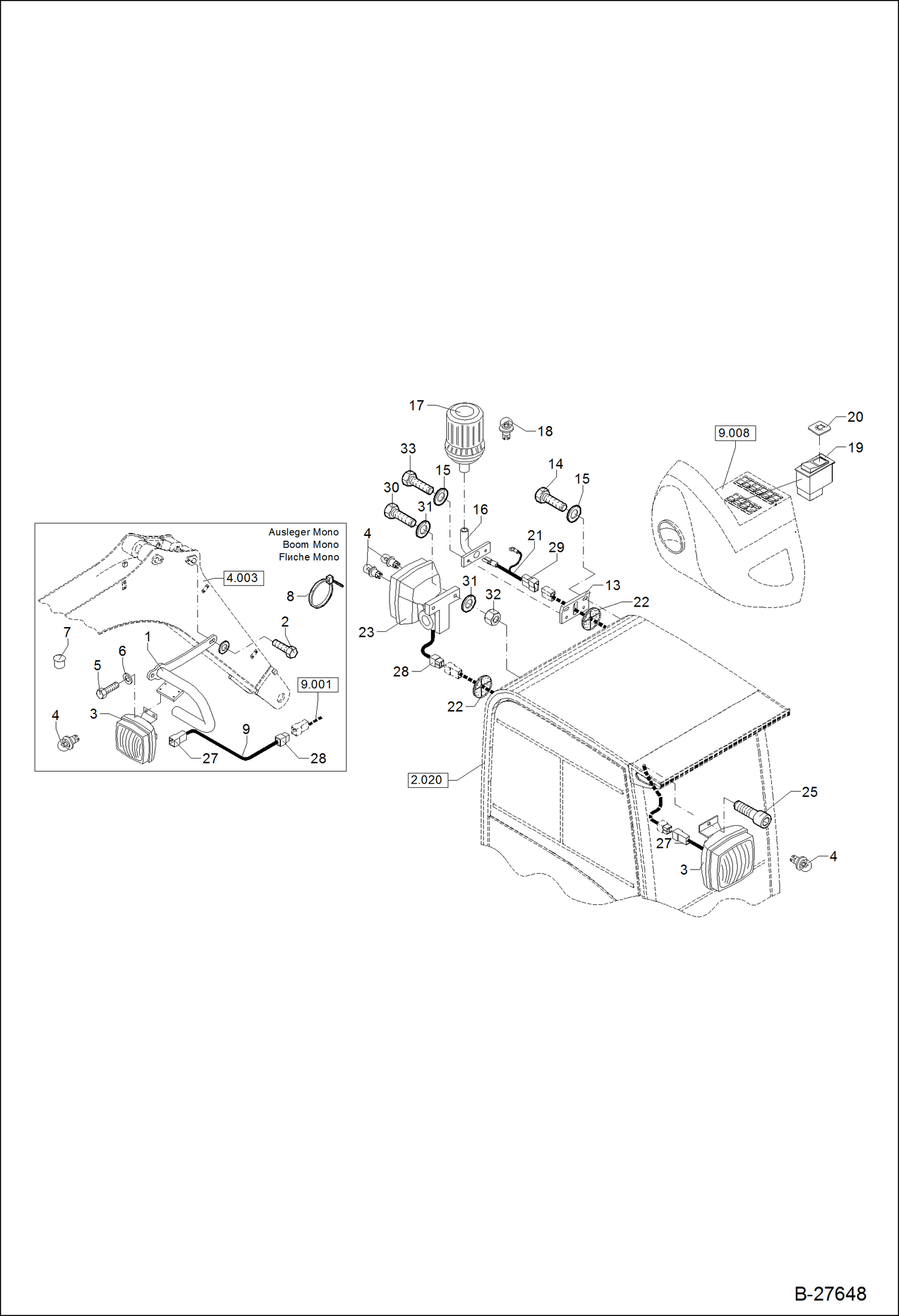

Запчасти Bobcat ZX125 ELECTRIC INSTALLATION WORKING LIGHT ELECTRICAL SYSTEM

1

6190311002

BRACKET

2

1008707230

BOLT

3

5350661223

WORKING LIGHT Was 5350661215 - A

4

1813000035

BULB

5

1008707512

BOLT

6

1290707014

WASHER

7

5558248123

PLUG

8

5350650294

BINDER

9

0190311010

WIRE HARNESS W/Ref. 27 & 28

13

0190265005

BRACKET

14

1008707018

BOLT

15

1343707057

WASHER

16

5350637545

PIPE

17

5050022294

LIGHT, BEACON

18

5350642339

BULB

19

5050651363

ROCKER SWITCH

20

5358650237

SYMBOL OCC. LIGHT

21

0190265010

WIRE HARNESS W/Ref. 29

22

5653095530

RUBBER GROMMET

23

5350658675

WORKING LIGHT

25

1045707623

BOLT

27

5350249513

PLUG

28

5350249534

FLAT PLUG

29

5350249539

PLUG

30

1008707623

BOLT

31

1290707020

WASHER

32

1212251013

NUT

33

1008707817

BOLT
