Запчасти Bobcat ZX125 ELECTRIC INSTALLATION DASH CONSOLE S/N XXXX/0210 & Bel ELECTRICAL SYSTEM

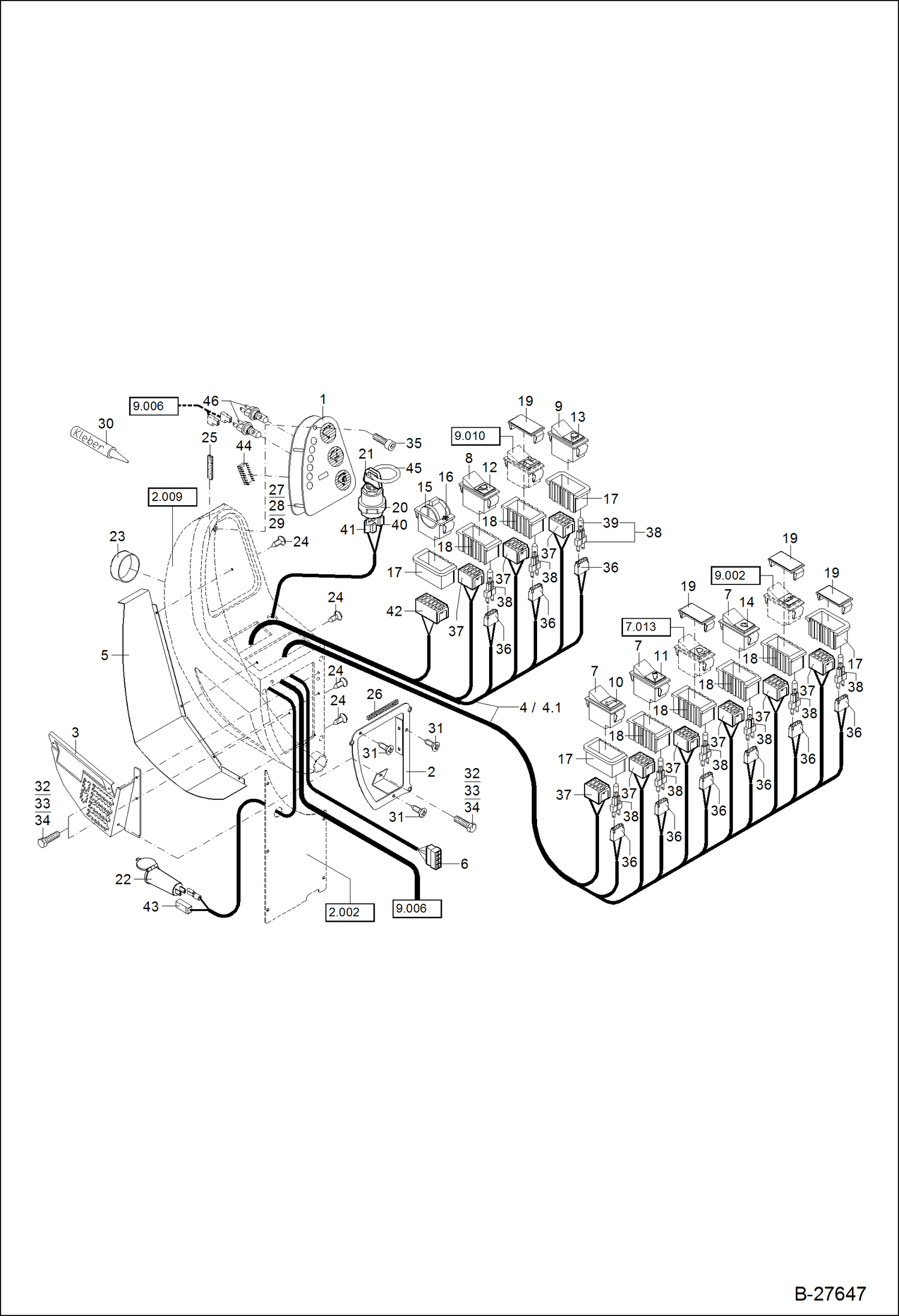

Схема запчастей Bobcat ZX125 - ELECTRIC INSTALLATION DASH CONSOLE S/N XXXX/0210 & Bel ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

MODULE, CONTROL NLA - W/E-Prom - Order 5821661076 display panel and 0190132015 decal - Was 5821661064 - A

1

7023525

PANEL, DASH W/ O E-Prom - Was 5821661076

2

5821662101

ADAPTER

3

5821662102

BRACKET

4

5821662103

CABLE SET

4

5821662241

CABLE SET

5

5821662104

AIR BAFFLE

6

5350249505

HOUSING

7

5050651363

ROCKER SWITCH

8

5050651338

SWITCH

9

5050651333

SWITCH TOGGLE

10

5821662108

SYMBOL DECAL

11

5358650269

SYMBOL DECAL

12

5821662110

SYMBOL DECAL

13

5358650296

SYMBOL

14

5821662112

SYMBOL DECAL

15

5050650311

SWITCH

16

5821662114

SYMBOL DECAL

17

5821662088

CAP

18

5821662089

SPACER

19

5050650230

COVER

20

5050655525

IGNITION LOCK W/Ref. 21

21

5050650256

KEY, IGN

22

5821662144

PLUG, RECEPTACLE

23

5821662130

MOZZLE

24

5821662129

SCREW

25

5821662131

SEAL

26

5821662132

SEAL

27

5821662133

CROWN GEAR

28

5821662134

WASHER

29

5821662135

KIT

30

5821662137

GLUE KIT

31

5821662123

SCREW

32

1008707609

BOLT

33

5821662127

CROWN GEAR

34

5821662126

WASHER

35

1045707510

SCREW

36

5050650231

HOUSING

37

5050650225

HOUSING

38

5050650226

LAMP W/Ref. 39

39

1813000021

ROUND BULB

40

5050650261

PLUG

41

5050650262

PLUG

42

5050650287

PLUG

43

5350249536

HOUSING

44

45

1557909026

RING

46

5755656003

KIT BULB & SOCKET

Выбрано товаров: 48
