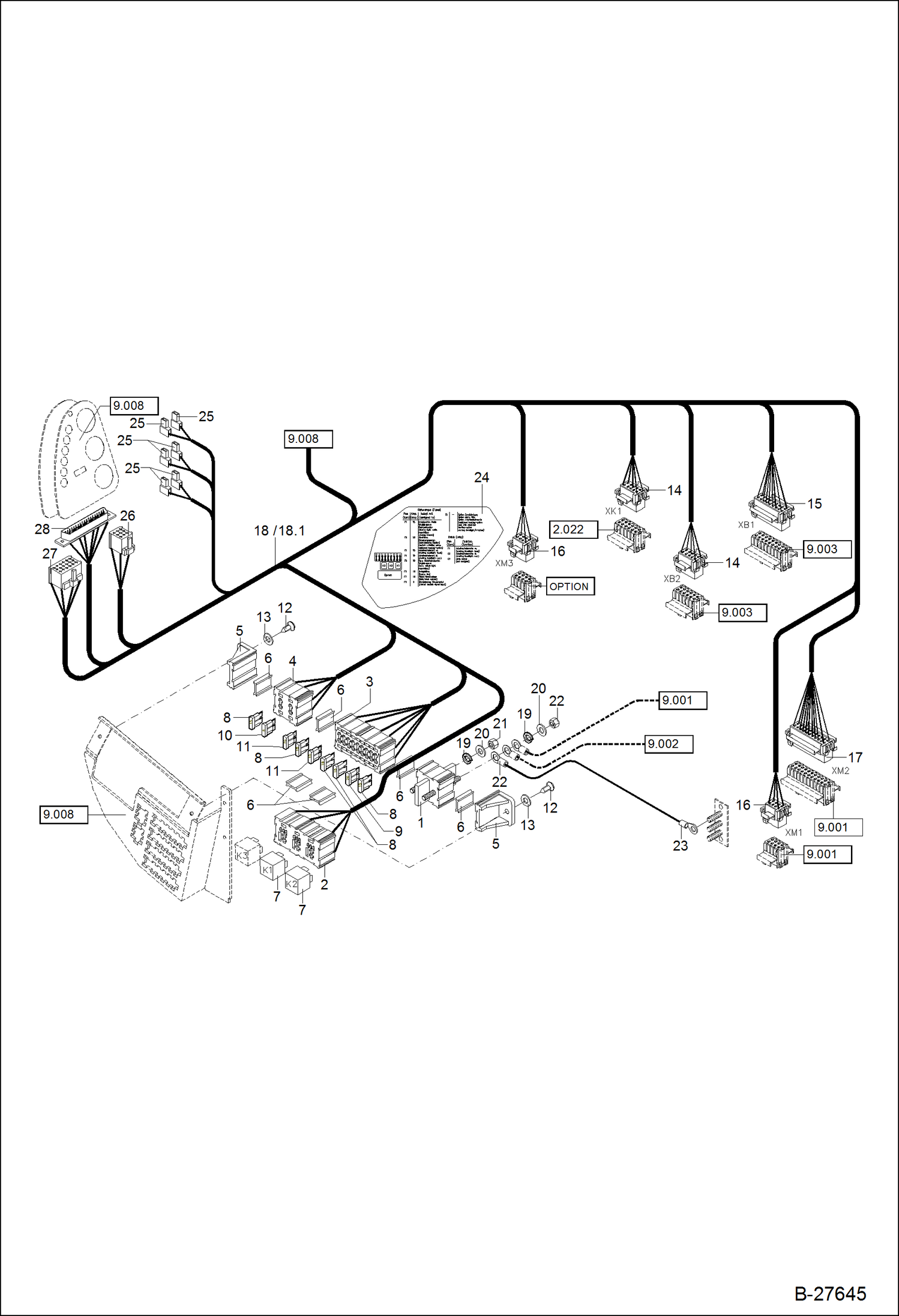

Запчасти Bobcat ZX125 ELECTRIC INSTALLATION FUSE PANEL AND RELAY PANEL ELECTRICAL SYSTEM

1

5050650466

MODULE

2

5050650467

RELAY MODULE

3

5050650473

FUSE MODULE

4

5050650469

FUSE MODULE

5

5050650468

MOUNT

6

5050650470

CONNECTOR

7

5821662118

RELAY

8

5050650271

15A FUSE

9

5050650266

FUSE

10

5050650301

5A FUSE

11

5050650264

10A FUSE

12

5821662125

SCREW

13

5821662126

WASHER

14

5350249692

CONNECTOR

15

5350249693

CONNECTOR

16

5350249690

CONNECTOR

17

5350249694

CONNECTOR

18

5821662103

CABLE SET

18

5821662241

CABLE SET

19

5821662133

CROWN GEAR

20

5821662134

WASHER

21

5821662135

KIT

22

5350249600

CABLE CONNECTOR

23

5350249597

CABLE CONNECTOR

24

0190027030

DECAL

25

CONNECTOR (FEM) NLA - Was 5350249776 - A

26

5350249778

CONNECTOR

27

5350249753

CONNECTOR

28

5350249780

CONNECTOR
