Запчасти Bobcat ZX125 ELECTRIC INSTALLATION FLOOR FRAME ELECTRICAL SYSTEM

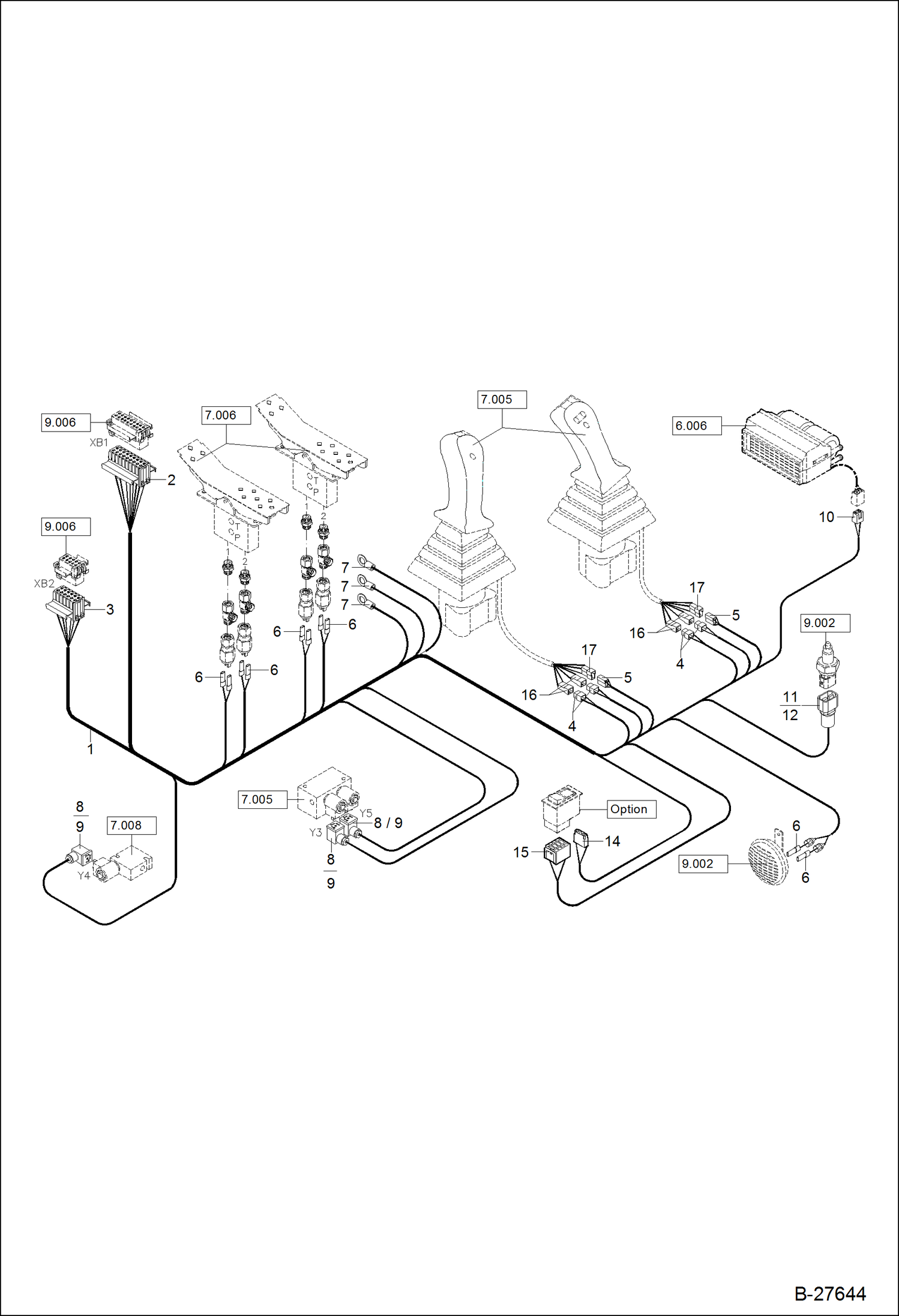

Схема запчастей Bobcat ZX125 - ELECTRIC INSTALLATION FLOOR FRAME ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

0207507070

WIRE HARNESS CPL.

2

5350249686

CONNECTOR

3

5350249685

CONNECTOR

4

5350249513

PLUG

5

5350249541

HOUSING

6

5350246815

FEM TERMINAL

7

5350246610

CABLE CONNECTOR

8

5552659550

BOX

9

5552659513

SEAL

10

5350249508

PLUG

11

5350249545

HOUSING

12

5350249546

RUBBER GRAMMET

14

5050650231

HOUSING

15

5050650225

HOUSING

16

5350249534

FLAT PLUG

17

5350249542

PLUG

Выбрано товаров: 16
