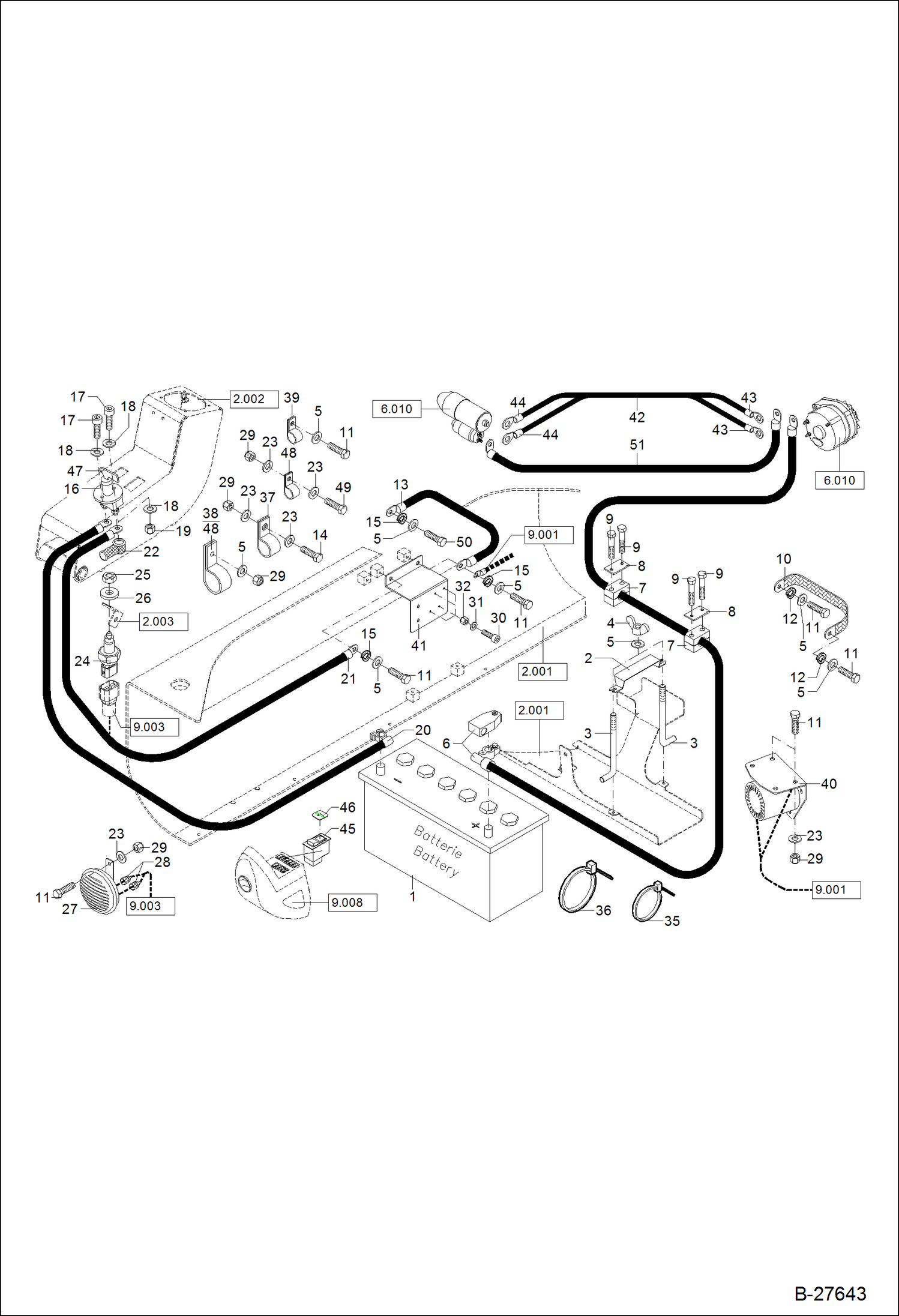

Запчасти Bobcat ZX125 ELECTRIC INSTALLATION UPPER CARRIAGE ELECTRICAL SYSTEM

1

5272600005

BATTERY

2

6207506060

BATTERY BRACKET

3

0207506061

STUD

4

1245707011

WING NUT

5

1343707057

WASHER

6

0209007034

BATTERY CABLE

7

5660199615

HOSE CLIP

8

5660200122

COVER PLATE

9

1007707813

BOLT

10

5653246930

EARTH CABLE

11

1008707018

BOLT

12

1327707022

TOOTHED LOCK WASHER

13

0073657067

CABLE, GROUND

14

1008707817

BOLT

15

1327707018

TOOTHED LOCK WASHER

16

5522655660

SWITCH INTERRUPTER W/Ref. 47

17

1045707213

BOLT

18

1290707014

WASHER

19

1212251009

NUT

20

0190007135

BATTERY CABLE

21

0190007136

CABLE, GROUND

22

5050580450

RUBBER

23

1290707018

WASHER

24

5050650295

SWITCH hyd controls lockout, left console

25

1208707614

NUT

26

1290707022

WASHER

27

5050022200

HORN

28

5653095570

CAP

29

1212251011

NUT

30

1041707210

BOLT

31

1290707012

WASHER

32

1210707007

NUT

35

5653093560

BINDER

36

5350650280

BINDER

37

5000210400

HOSE CLIP

38

5000210410

HOSE CLIP

39

5000095800

HOSE CLIP

40

5755627342

BACK UP BUZZER

41

6190007010

BRACKET

42

0209515055

WIRE HARNESS W/Ref. 43 & 44

43

5350249597

CABLE CONNECTOR

44

5350246600

CABLE CONNECTOR

45

5050651363

ROCKER SWITCH

46

5358650337

SYMBOL ''HORN RUECK

47

5522655651

KEY INTERRUPTER

48

5000136800

HOSE CLIP

49

1008707618

BOLT

50

1008707517

BOLT

51

0209515055

WIRE HARNESS
