Запчасти Bobcat ZX125 ELECTRIC INSTALLATION MACHINE ELECTRICAL SYSTEM

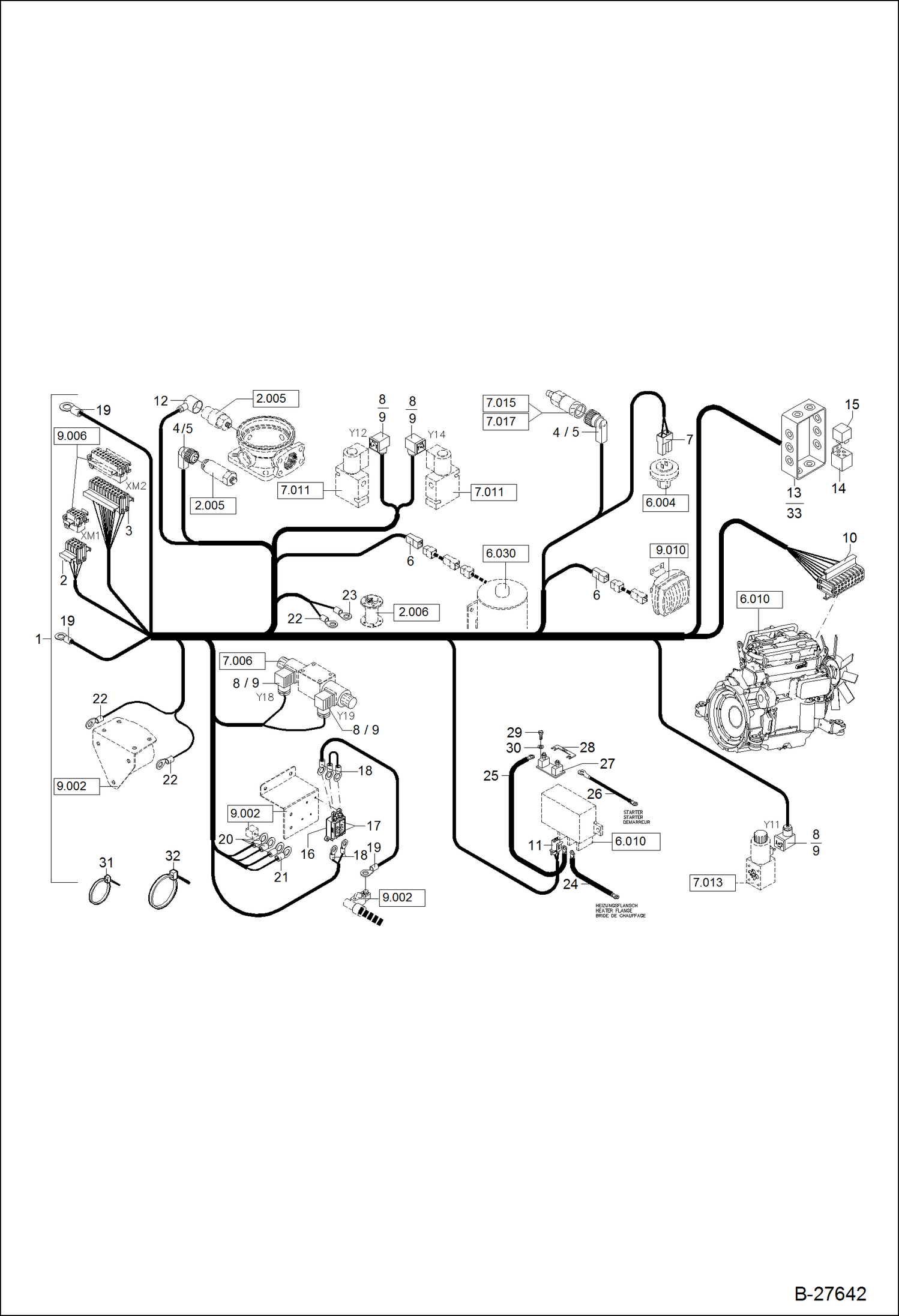

Схема запчастей Bobcat ZX125 - ELECTRIC INSTALLATION MACHINE ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

0207507060

WIRE HARNESS CPL. Ref. 2-24

2

5350249684

CONNECTOR

3

5350249687

CONNECTOR

4

5350249655

SOCKET HOUSING

5

5350249661

CAP 90GRAD

6

5350249513

PLUG

7

5350249576

HOUSING

8

5552659550

BOX

9

5552659513

SEAL

10

5350249686

CONNECTOR

11

5350249663

SOCKET HOUSING

12

5380660826

PLUG CONNECTION

13

5208640228

BOX

14

5050247815

BRACKET RELAY

15

5050247810

RELAY

16

5050650450

HOLDER

17

5050650480

40A FUSE

18

5350249590

CABLE CONNECTOR

19

5350249600

CABLE CONNECTOR

20

5350249597

CABLE CONNECTOR

21

5350246610

CABLE CONNECTOR

22

5350241104

CABLE CONNECTOR

23

5350246820

CABLE CONNECTOR

24

0207507037

CABLE

25

0207507038

CABLE

26

0207507039

CABLE

27

5050650476

HOLDER

28

5050650477

BLADE TYPE FUSE

29

1008707912

BOLT

30

1290707014

WASHER

31

5653093560

BINDER

32

5350650280

BINDER

33

5208640226

CLIP

Выбрано товаров: 33
