Запчасти Bobcat ZX125 ROTARY TRANSFER HYDRAULIC SYSTEM

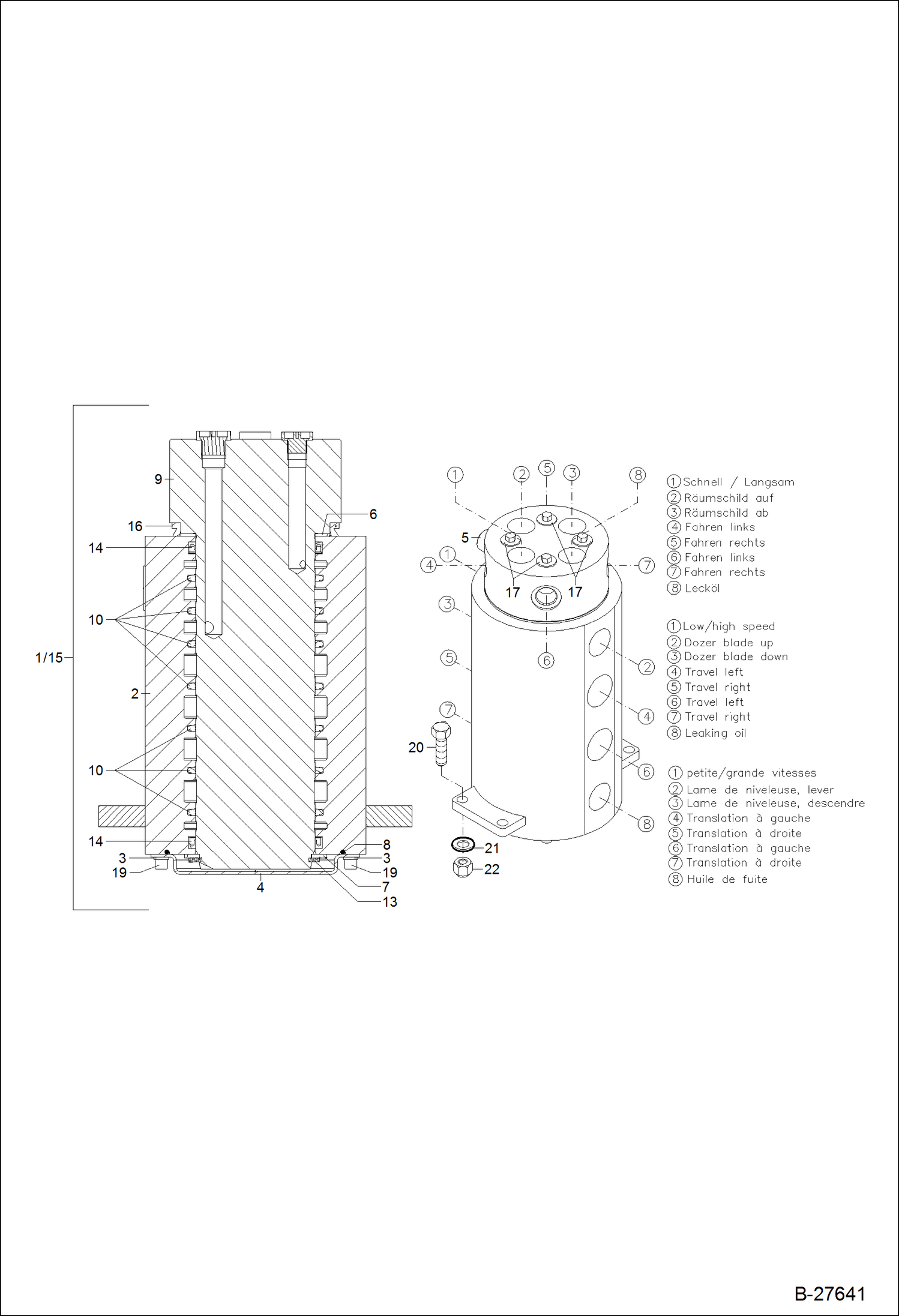

Схема запчастей Bobcat ZX125 - ROTARY TRANSFER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

5383670019

ROTARY TRANSFER

2

5383662044

HOUSING

3

1321707013

WASHER

4

5383662043

COVER

5

5383662050

STUD

6

5383662045

SPACER RING

7

5383662046

SPACER RING

8

5383662051

O-RING

9

5383662047

ROTATOR

10

5383662048

SEAL

13

1455622363

CIRCLIP

14

5383662052

SEAL

15

5383662056

SEAL KIT

16

5383662053

V-RING

17

1146201618

SCREW

19

1045707612

BOLT

20

1008707424

BOLT

21

1290707020

WASHER

22

1212251013

NUT

Выбрано товаров: 19
