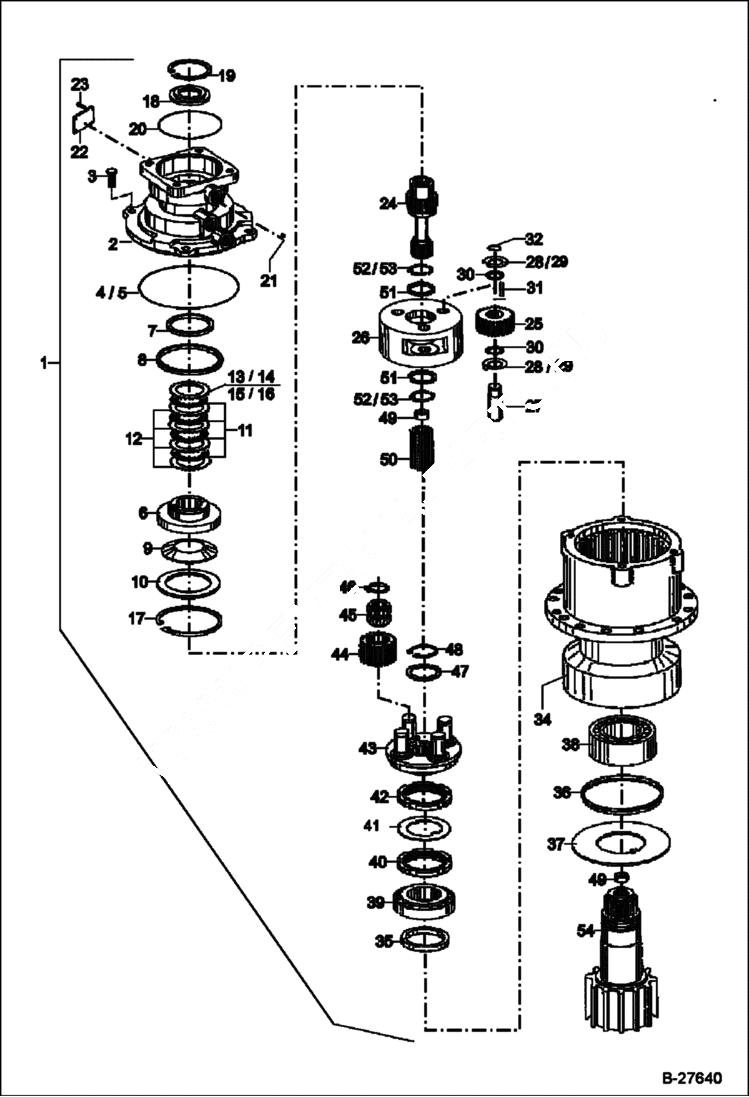

Запчасти Bobcat ZX125 SLEW GEAR HYDRAULIC SYSTEM

1

5904670005

SLEW GEAR

2

5904658719

BRAKE CASING

3

5904658118

BOLT

4

5904657853

O-RING

5

5904658116

O-RING

6

5904658720

PISTON

7

5904658721

LIP SEAL

8

5904658722

NUTRING

9

5904658723

BELLEVILLE SPRING

10

5904658724

SUPPORTING RING

11

5904658725

INNER DISC

12

5904658726

OUTER DISC

13

5904658727

OUTER DISC

14

5904658725

INNER DISC

15

5904658728

OUTER DISC

16

5904658729

OUTER DISC

17

5904658730

CIRCLIP

18

5904658731

BUSHING

19

1455622369

CIRCLIP

20

1970956336

O-RING

21

5904658732

COVER

22

5904658409

IDENTIFICATION PLATE

23

5904658272

GROOVED DRIVE STUD

24

5904658733

DRIVE SHAFT

25

5904658734

PLANETARY WHEEL

26

5904658735

PLANETARY SUPPORT

27

5904658736

PIN

28

5904658737

WASHER

29

5904658738

WASHER

30

5904658739

WASHER

31

5904658740

NEEDLE ROLLER

32

5904658741

CIRCLIP

34

5904658743

DRIVE CASING

35

5904658744

SCRAPER RING

36

5904658745

SEAL

37

5904658746

WASHER

38

5904658747

ROLLER BEARING

39

5904658748

BEARING

40

5904658749

SLOTTED ROUND NUT

41

5904658750

LOCK PLATE

42

5904658751

SLOTTED ROUND NUT

43

5904658752

PLANETARY SUPPORT

44

5904658753

PLANETARY WHEEL

45

5904658754

ROLLER BEARING

46

5904658755

CIRCLIP

47

5904658762

SHIM

48

1455622250

CIRCLIP

49

5904658756

AXIAL BALL BEARING

50

5904658757

SUN WHEEL

51

5904658758

SUPPORTING RING

52

5904658759

CIRCLIP

53

5904658760

CIRCLIP

54

5904658761

DRIVE SHAFT
