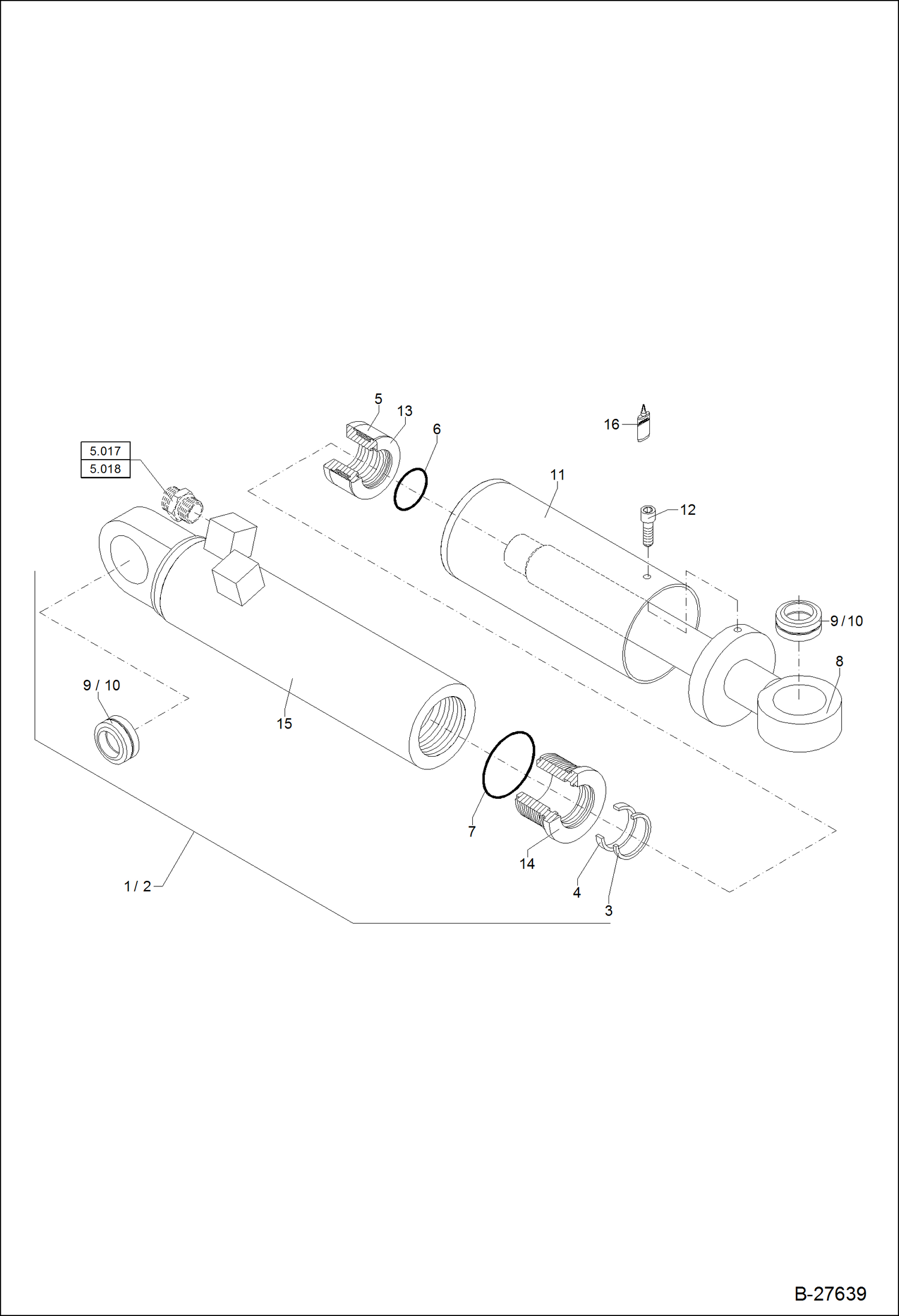

Запчасти Bobcat ZX125 HYDRAULIC CYLINDER - SWIVELLING BUCKET HYDRAULIC SYSTEM

1

5018001009

HYDR. CYLINDER Ref. 2-16

2

5018001010

SEAL KIT Ref. 3-7

3

5018001029

SCRAPER RING

4

5018001030

GROOVE RING

5

5018001031

PISTON SEAL

6

5018001032

O-RING

7

5018001033

O-RING

8

5018001011

PISTON ROD

9

5018001012

BEARING

10

5018001022

SB-RING

11

5018001013

PIPE

12

1045707817

BOLT

13

5018001035

PISTON

14

5018001034

PIERCING BUSHING

15

5018001023

CYLINDER BARREL

16

GLUE NLA - Was MCS001036A - A
