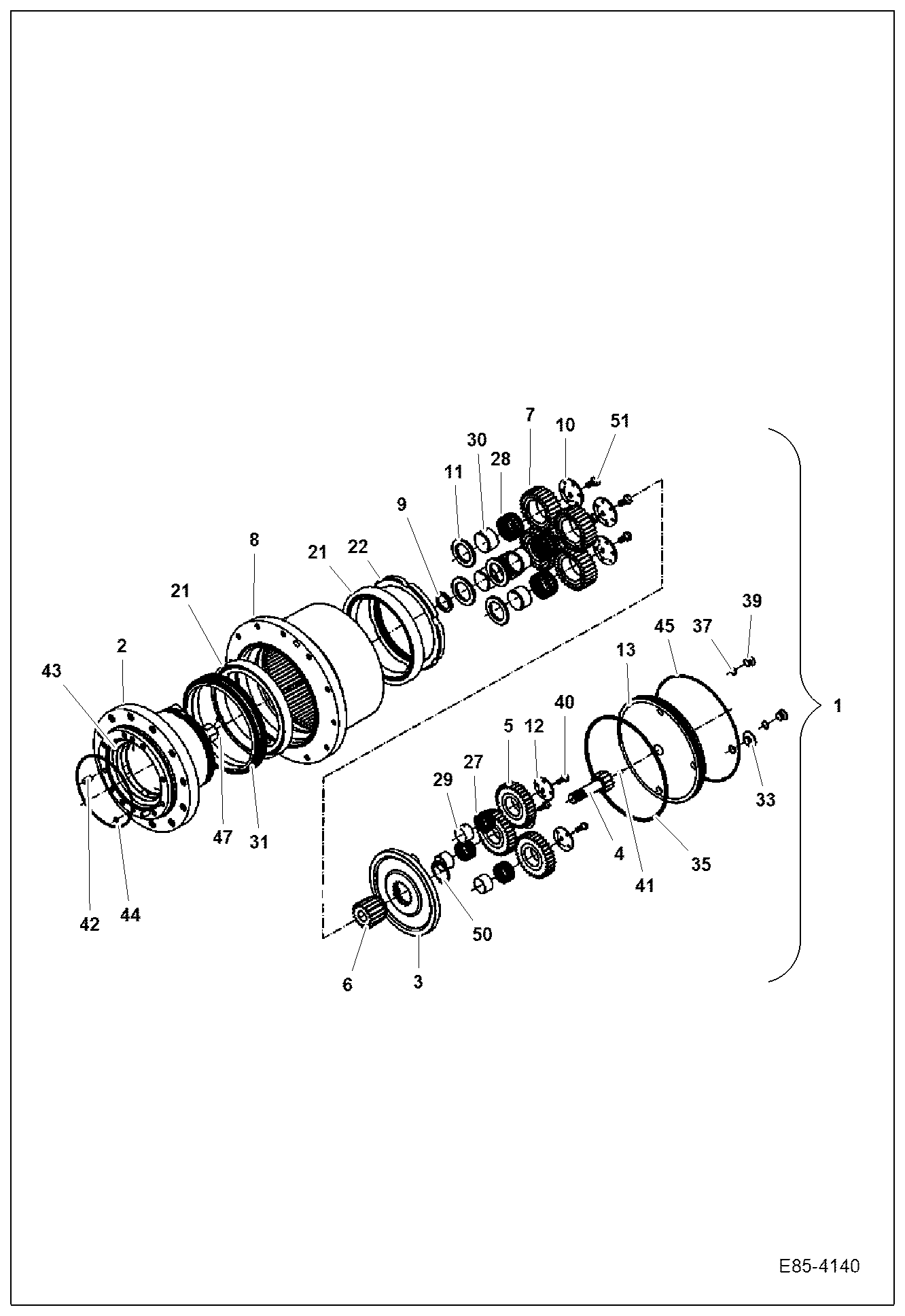

Запчасти Bobcat E85 DRIVE MOTOR (Reduction Gear) HYDRAULIC SYSTEM

1

7029548

GEAR, REDUCTION

2

7029407

HOUSING, GEAR

3

7007473

CARRIER

4

7007474

GEAR SUN 1

5

7007475

GEAR PLANETARY 1

6

7007476

GEAR SUN 2

7

7007477

GEAR PLANETARY 2

8

7007456

HUB

9

7007490

COLLAR THRUST

10

7007457

WASHER THRUST

11

7007458

WASHER THRUST

12

7007493

WASHER THRUST

13

7007459

COVER

21

7028691

BEARING BALL

22

7007460

NUT RING

27

7007462

BEARING NEEDLE ROLLER

28

7007463

BEARING NEEDLE ROLLER

29

7007464

RING INNER

30

7007465

RING INNER

31

7028833

SEAL OIL RUBBER

33

7007492

PLUG

35

7007957

O-RING

37

7007909

O-RING

39

7004303

PLUG

40

7007617

BOLT

41

7007872

BALL STEEL

42

7004168

PIN PARALLEL

43

7007902

O-RING

44

7004221

O-RING

45

7007496

RING

47

7007497

SCREW SET

50

7007877

RING RETAINING

51

7007626

BOLT
