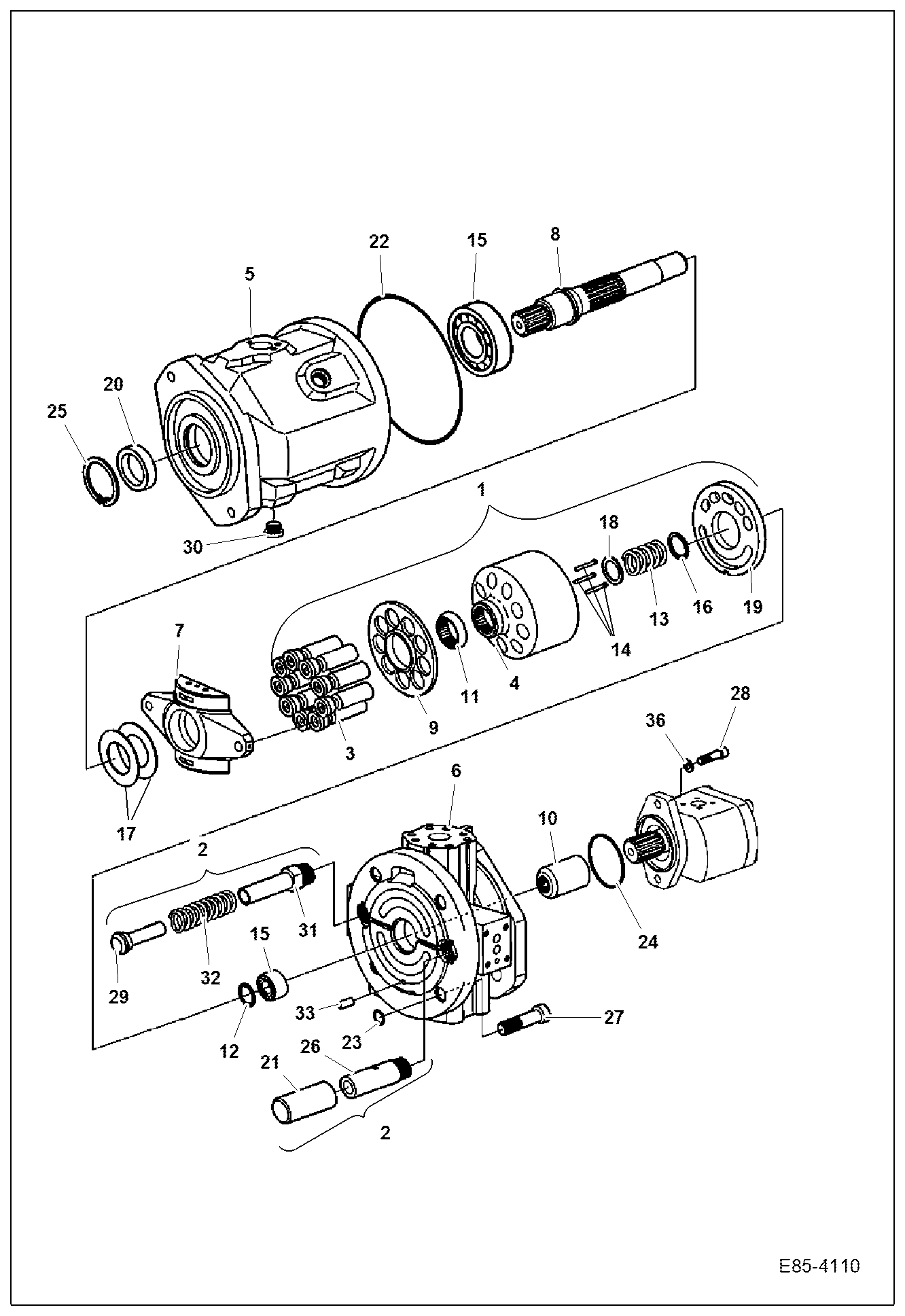

Запчасти Bobcat E85 HYDRAULIC PUMP (Rotary Group) HYDRAULIC SYSTEM

1

7007368

ROTATOR ASSY W/Ref.2-36

2

7007352

HOUSING CONTROL

3

7007355

PISTON ASSY

4

7007371

CYLINDER

5

7007353

HOUSING PUMP

6

7007369

PLATE PORT

7

7007363

PLATE SWASH

8

7007372

SHAFT DRIVE

9

7007366

PLATE RETAINING

10

7007360

COUPLER GEAR SHAFT

11

7007357

BALL RETAINING

12

7007356

SHIM

13

7007341

SPRING

14

7007370

PIN PRESSURE

15

7007359

BEARING SET

16

7007354

RING SEEGER V

17

7007348

SHIM

18

7007342

WASHER THRUST

19

7007367

PLATE DISTRIBUTOR

20

7007343

SEAL SHAFT

21

7007351

PISTON CONTROL

22

7007344

O-RING

23

7007345

O-RING

24

7007339

ORING

25

7007358

RING SAFETY

26

GUIDE :PISTON NLA - Order Ref. 1

27

7007770

SCREW SOCKET

28

7007746

BOLT HEX SOCKET M10X5L

29

7007350

PISTON COUNTER

30

7007365

PLUG

31

GUIDE :PISTON NLA - Order Ref. 1

32

7007347

SPRING

33

7007340

PIN DOWEL

36

7007376

WASHER
