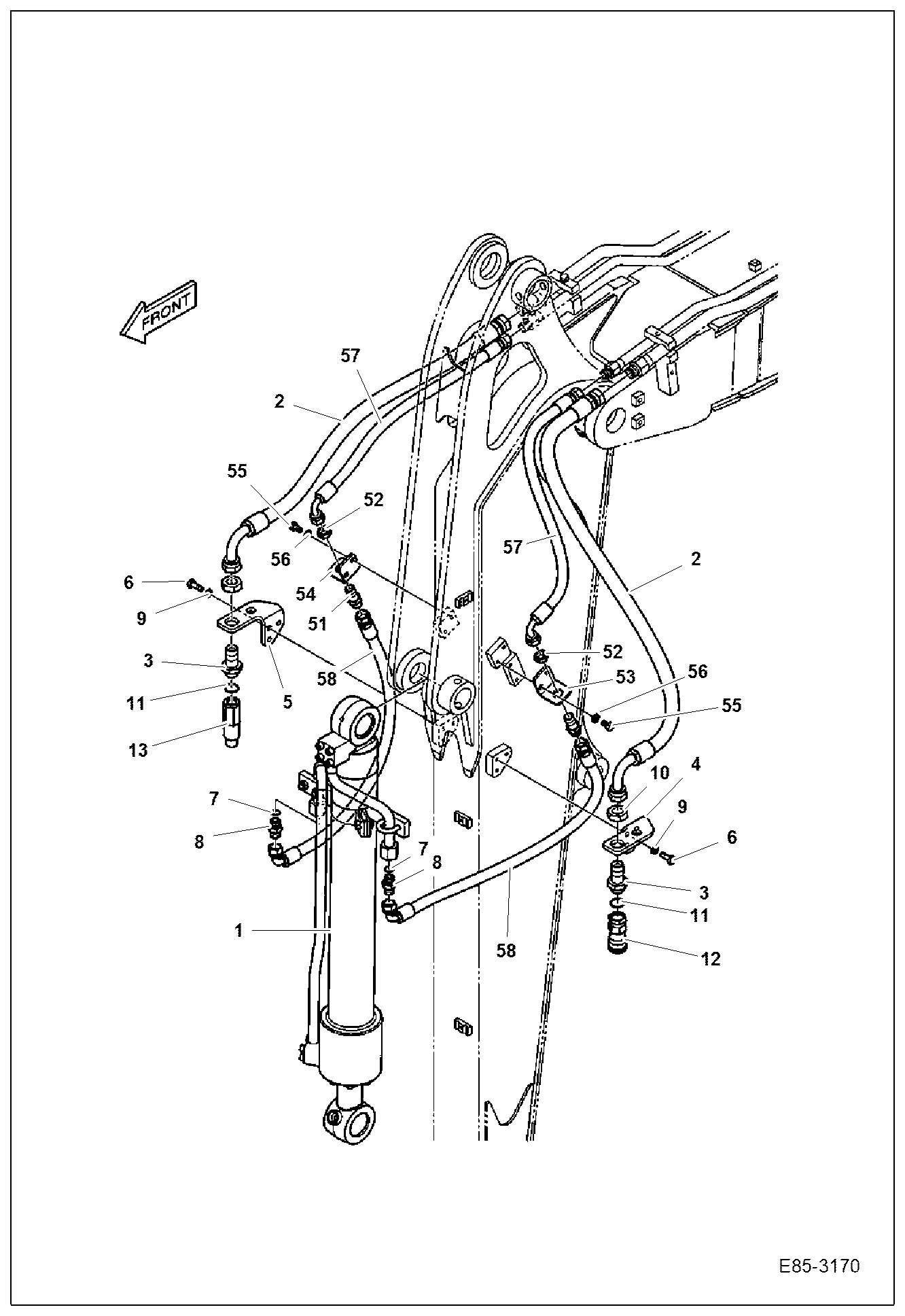

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Arm 2.25 m) HYDRAULIC SYSTEM

1

7028985

CYLINDER, BUCKET

2

7005187

HOSE

3

7015433

ADAPTER

4

7022847

BRACKET

5

7022846

BRACKET

6

7007669

BOLT

7

7007911

O-RING

8

7004699

ADAPTER

9

7007835

WASHER SPRING

10

7015434

NUT

11

7009947

O-RING

12

6672960

COUPLER, FF FEMALE

13

6674688

COUPLER, FF MALE

51

7005566

ADAPTER

52

7003876

NUT

53

7005925

BRACKET LH

54

7005926

BRACKET RH

55

7007626

BOLT

56

7007835

WASHER SPRING

57

7010540

HOSE

58

7010541

HOSE
