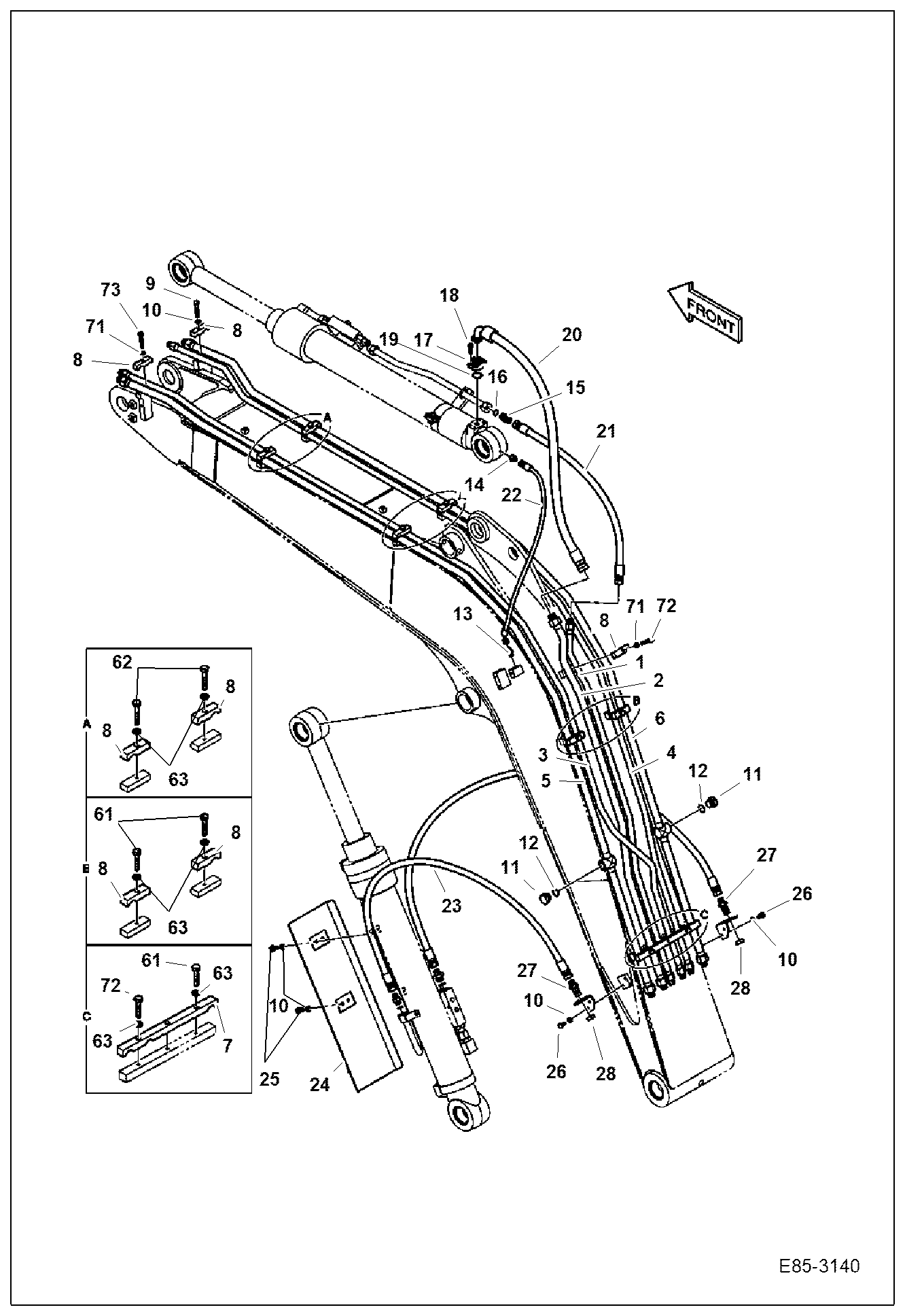

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Boom & Arm Cylinders) HYDRAULIC SYSTEM

1

7028823

TUBELINE HYD

2

7006031

TUBELINE

3

7006032

TUBELINE

4

7006033

TUBELINE

5

7006034

TUBELINE

6

7006035

TUBELINE

7

7006036

CLAMP

8

7006037

CLAMP

9

7007674

BOLT

10

7007835

WASHER SPRING

11

7004733

PLUG

12

7007916

O-RING

13

7004667

ADAPTER

14

7004669

ADAPTER

15

7004699

ADAPTER

16

7007911

O-RING

17

7004777

FLANGE

18

7007748

BOLT SOCKET M10X1.5X30

19

7004631

O-RING

20

7023692

HOSE, HYD

21

7029143

HOSE, HYD

22

7005177

HOSE

23

7015633

HOSE

24

7028933

COVER

25

7007630

BOLT

26

7007626

BOLT

27

7003950

ADAPTER

28

7003876

NUT

61

7007674

BOLT

62

7007672

BOLT

63

7007835

WASHER SPRING

72

7007674

BOLT

73

7007673

BOLT
