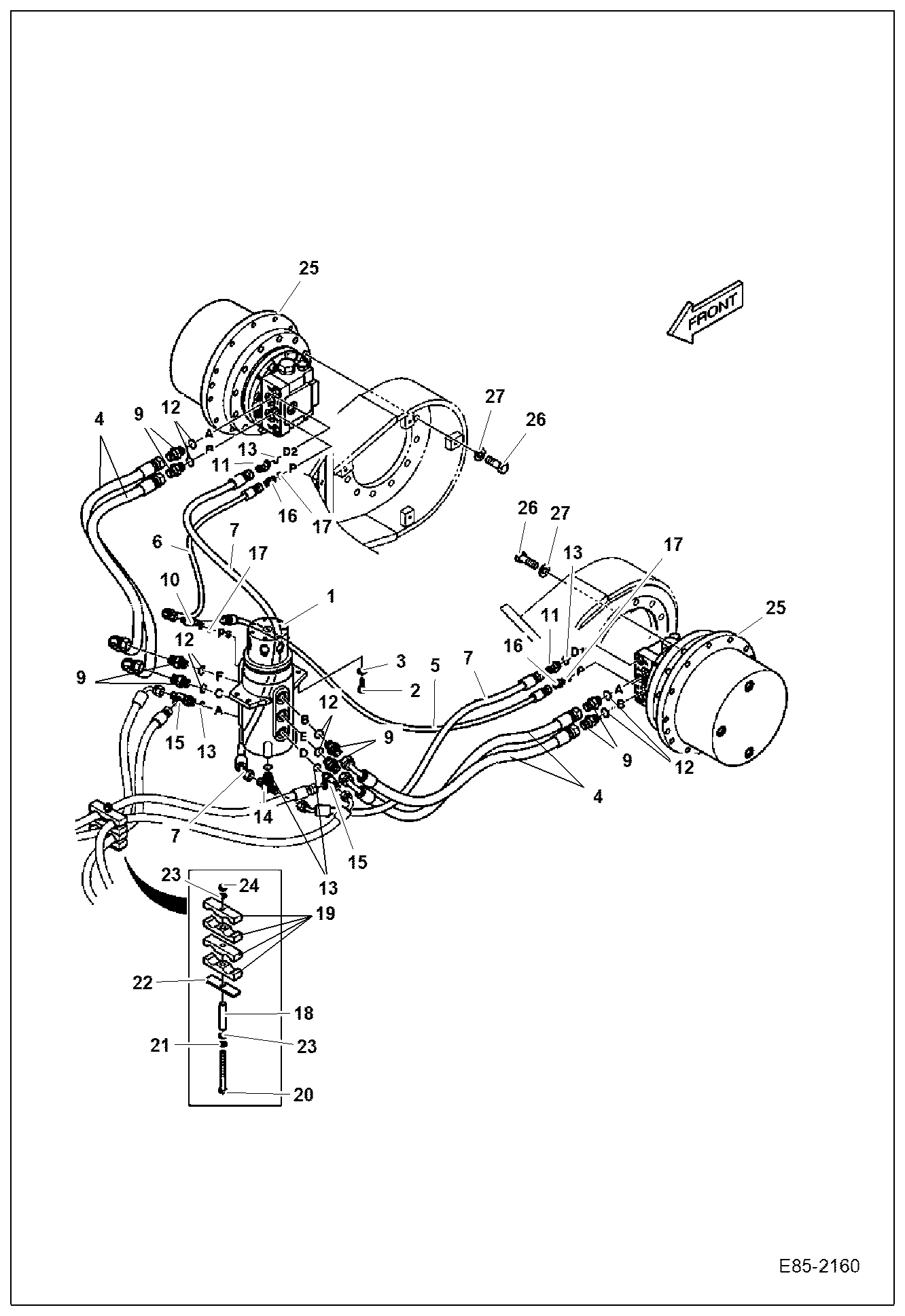

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Travel) HYDRAULIC SYSTEM

1

7006067

SWIVEL, ASSY

2

7007640

BOLT

3

7007836

WASHER SPRING M12

4

7005182

HOSE

5

7005511

HOSE

6

7005445

HOSE PF1/4-1380L

7

7005276

HOSE PF3/8-1300L

9

7004699

ADAPTER

10

7004738

TEE

11

7004700

ADAPTER

12

7007911

O-RING

13

7007909

O-RING

14

7004751

TEE

15

7004741

TEE

16

7004683

ADAPTER

17

7007906

O-RING

18

7029406

SPACER

19

7029346

CLAMP

20

7007680

BOLT

21

7007835

WASHER SPRING

22

7006518

PLATE

23

7007817

WASHER

24

7005682

NUT LOCK

25

7028991

MOTOR, TRAVEL

26

7007650

BOLT

27

7004507

WASHER PLAIN
