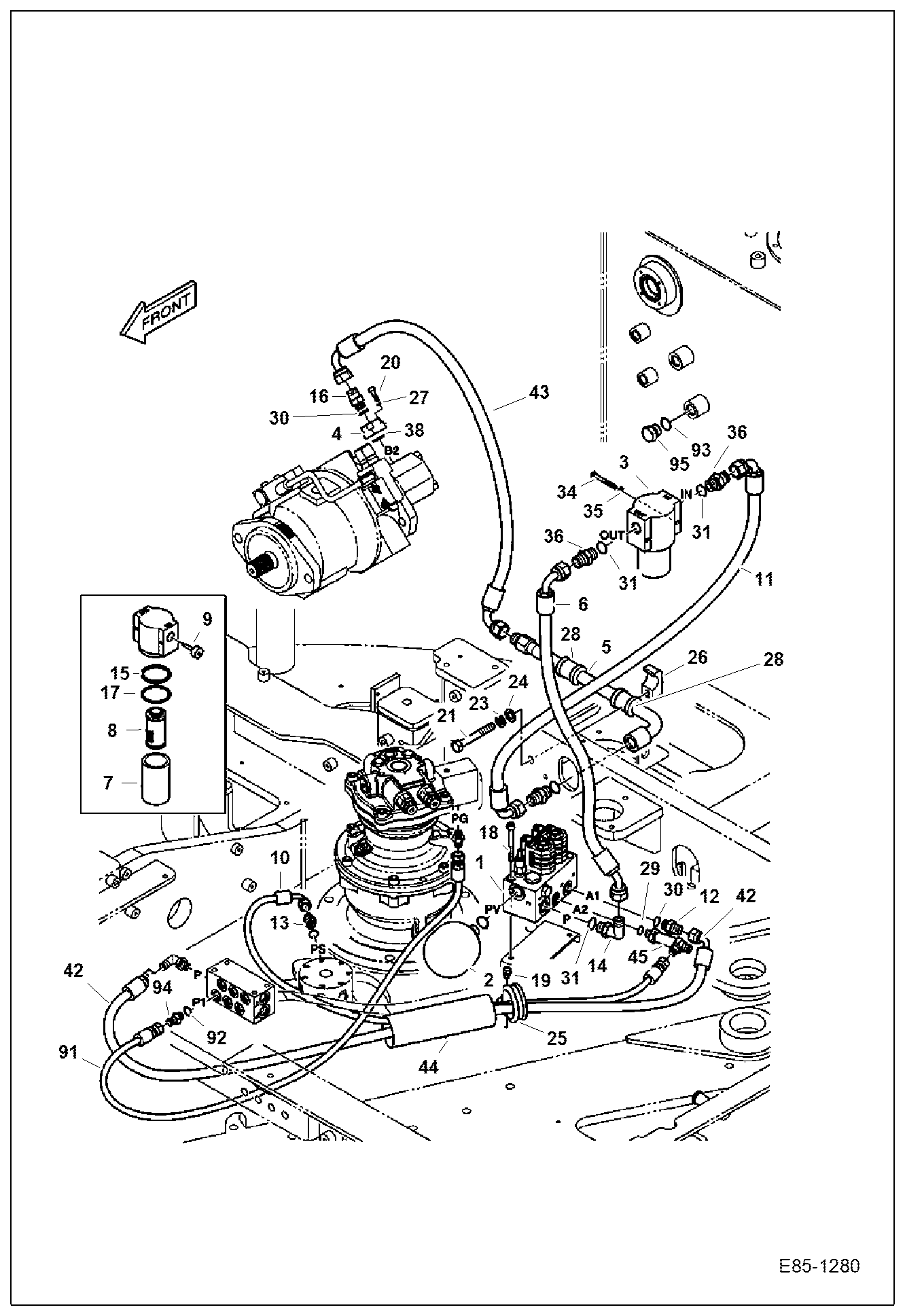

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Pump to Slew Motor) HYDRAULIC SYSTEM

1

7028853

VALVE, PILOT

2

7004876

ACCUMULATOR

3

7004880

FILTER PILOT

4

7004985

BLOCK

5

7024224

TUBELINE, HYD

6

7029134

HOSE, HYD

7

7004881

HOUSING

8

7004879

FILTER PILOT

9

7004869

VALVE BYPASS

10

7005328

HOSE PF1/4-980L

11

7029132

HOSE, HYD

12

7004700

ADAPTER

13

7004683

ADAPTER

14

7004710

ELBOW

15

7008030

RING BACK-UP

16

7004680

ADAPTER

17

7008029

O-RING

18

7007743

BOLT

19

7005629

BOLT

20

7007724

BOLT

21

7007690

BOLT

23

7007836

WASHER SPRING M12

24

7007820

WASHER SPRING

25

7003901

CLIP

26

7006565

CLAMP

27

7008301

WASHER

28

7006563

PAD

29

7007906

O-RING

30

7007909

O-RING

31

7007911

O-RING

34

7007653

BOLT

35

7007833

WASHER, SPRING

36

7004699

ADAPTER

38

7007960

O-RING

42

7029171

HOSE, HYD

43

7029131

HOSE, HYD

44

7006523

GUARD PROTECTOR

45

7004744

TEE

91

7029109

HOSE, HYD

92

7007906

O-RING

93

7007911

O-RING

94

7004683

ADAPTER

95

7029306

PLUG
