Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

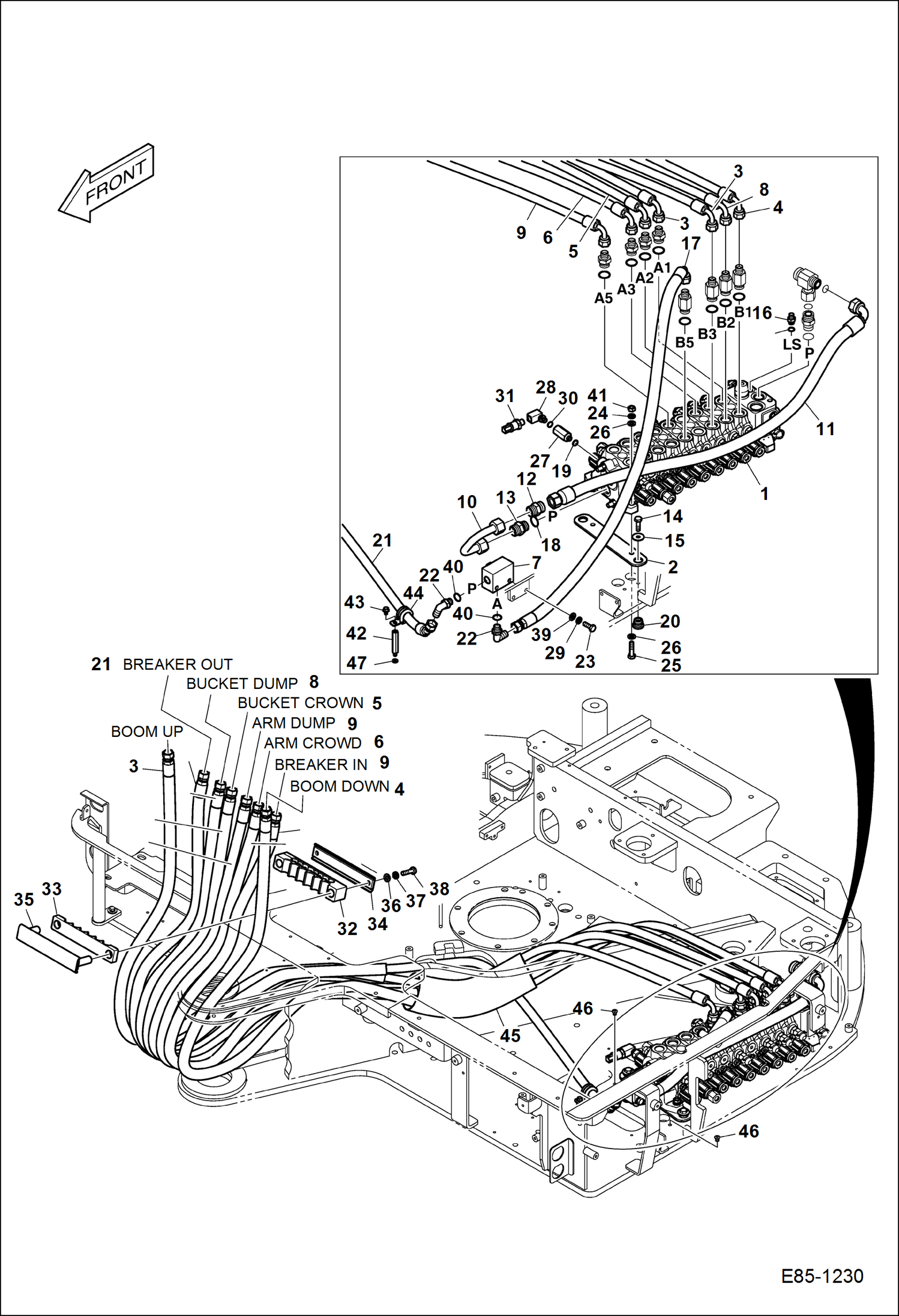

Схема запчастей Bobcat E85 - HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7028852

VALVE, CONTROL

2

7029299

PLATE

3

7029124

HOSE, HYD

4

7029123

HOSE, HYD

5

7029139

HOSE, HYD

6

7029127

HOSE, HYD

7

7004975

VALVE SWITCH

8

7029125

HOSE, HYD

9

7029126

HOSE, HYD

10

7029469

TUBELINE, HYD

11

7029128

HOSE, HYD

12

7029018

FITTING, HYD CONNECTOR

13

7029017

FITTING

14

7007631

BOLT M10X1.5X35

15

7021845

WASHER

16

7004693

ADAPTER

17

7029140

HOSE, HYD

18

7009947

O-RING

19

7007961

O-RING

20

7021821

BUSHING, SPACER

21

7029138

HOSE, HYD

22

7004710

ELBOW

23

7007629

BOLT

24

7029494

WASHER, SPRING

25

7007633

BOLT

26

7029490

WASHER

27

7028675

ADAPTER

28

7029007

FITTING, ELBOW

29

7007835

WASHER SPRING

30

7007906

O-RING

31

7004912

SENSOR PRESSURE

32

7028887

CLAMP, HOSE

33

7028888

CLAMP, HOSE

34

7029298

PLATE

35

7029297

PLATE

36

7007818

WASHER, PLAIN M10

37

7007835

WASHER SPRING

38

7007632

BOLT

39

7007818

WASHER, PLAIN M10

40

7007911

O-RING

41

7029243

NUT M10X1.5

42

7029436

STUD

43

7005629

BOLT

44

7003896

CLIP

Выбрано товаров: 44
