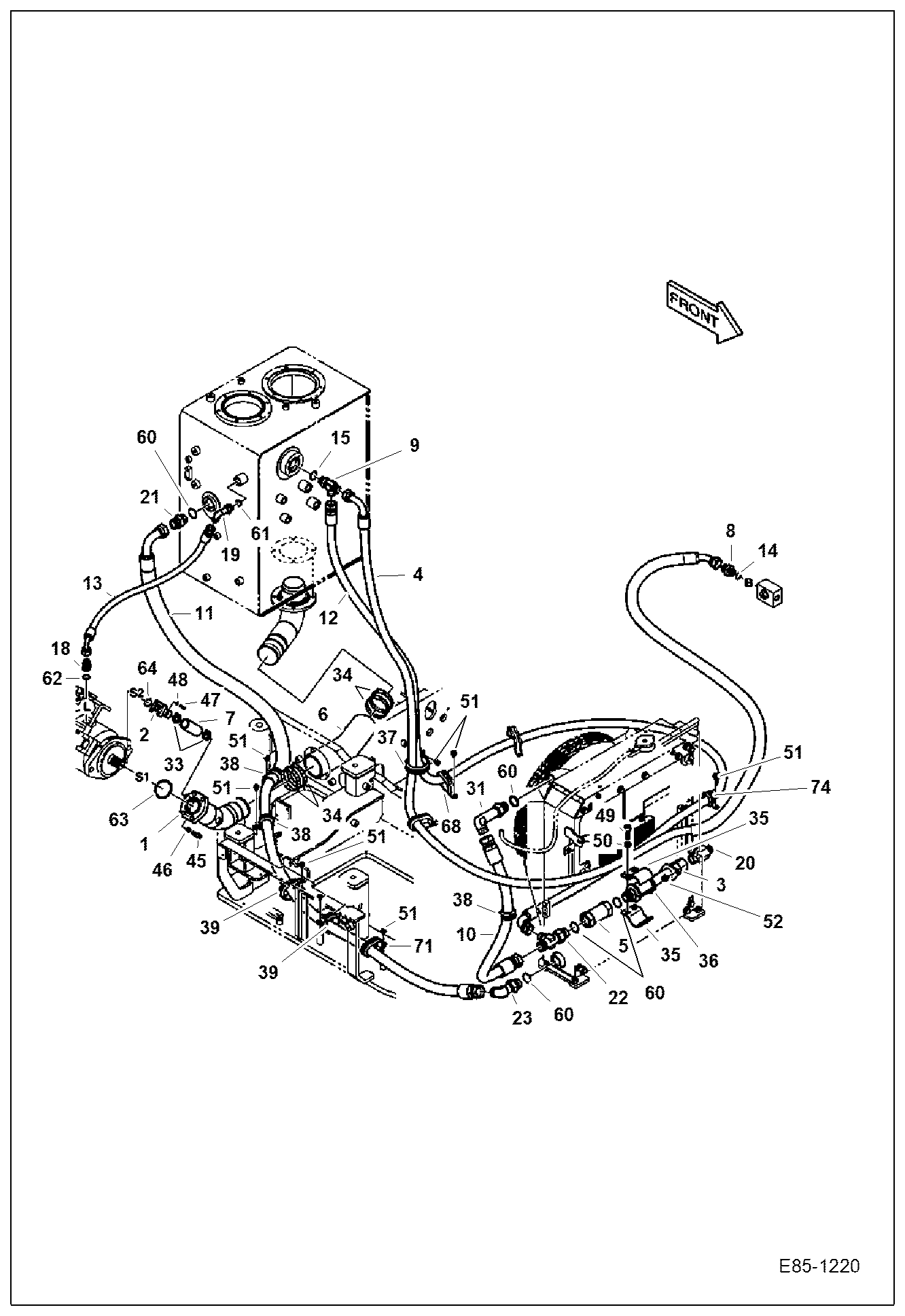

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Supply & Return) HYDRAULIC SYSTEM

1

7029275

PIPE, SUCTION

2

7006408

TUBELINE SUCTION

3

7028826

PIPE, HYDRAULIC COOLER

4

7029164

HOSE, HYD

5

7006757

VALVE BYPASS

6

7029088

HOSE, HYD FORMED

7

7029090

HOSE, RUBBER

8

7028679

ADAPTER

9

7029455

TEE

10

7029163

HOSE, HYD

11

7029162

HOSE, HYD

12

7029165

HOSE, HYD

13

7029141

HOSE, HYD

14

7007911

O-RING

15

7007917

O-RING

18

7004690

ADAPTER

19

7004712

ELBOW

20

7005568

TEE

21

7004687

ADAPTER

22

7004742

TEE

23

7029006

FITTING, ELBOW

31

7021859

FITTING, HYD ELBOW

33

7007976

CLAMP HOSE

34

7007982

CLAMP

35

7003908

CLAMP

36

7003931

PAD

37

7003900

CLIP

38

7003898

CLIP

39

7003901

CLIP

45

7007761

BOLT M12X1.75X35

46

7007845

WASHER SPRING

47

7007726

BOLT

48

7008301

WASHER

49

7007771

BOLT

50

7007837

WASHER

51

7005629

BOLT

52

7005129

BOLT, SET

60

7007920

O-RING

61

7007911

O-RING

62

7007962

O-RING

63

7004633

O-RING

64

7007915

O-RING

68

7028897

CLIP

71

7028912

CLIP, HOSE

74

7003897

CLIP
