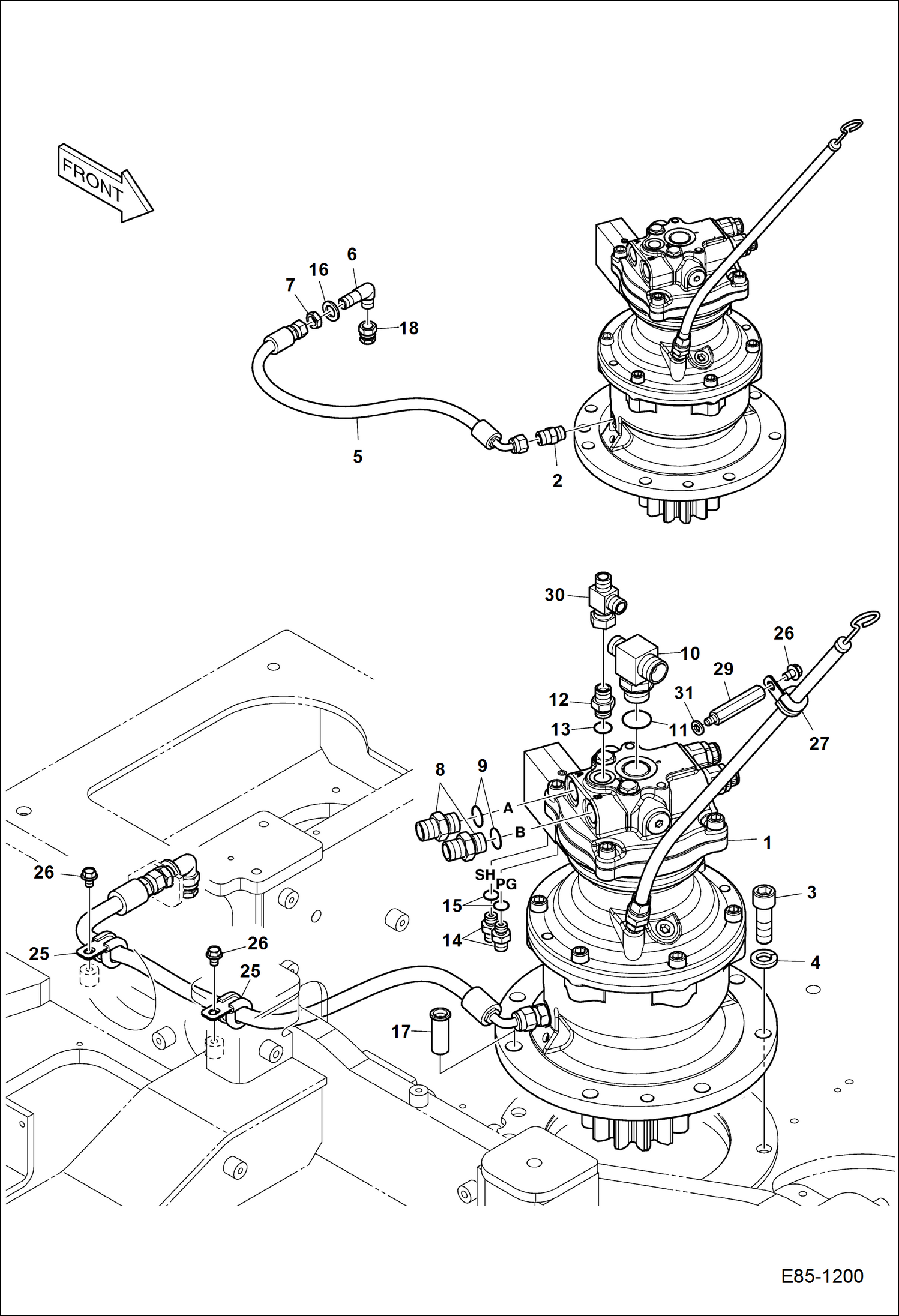

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Slew Motor & Case Drain) HYDRAULIC SYSTEM

1

7028990

MOTOR, SLEW

2

7004668

ADAPTER

3

7007774

BOLT

4

7007839

WASHER SPRING

5

7029179

HOSE, HYD

6

7005570

ELBOW

7

7003875

NUT

8

7004699

ADAPTER

9

7007911

O-RING

10

7029456

TEE

11

7007917

O-RING

12

7004700

ADAPTER

13

7007909

O-RING

14

7004683

ADAPTER

15

7007906

O-RING

16

7007822

WASHER SPRING

17

7006649

PIN

18

7004765

PLUG

25

7003895

CLIP

26

7005629

BOLT

27

7003894

CLIP

29

7029436

STUD

30

7029461

TEE PFO1/2-PF1/2-PF3/8
