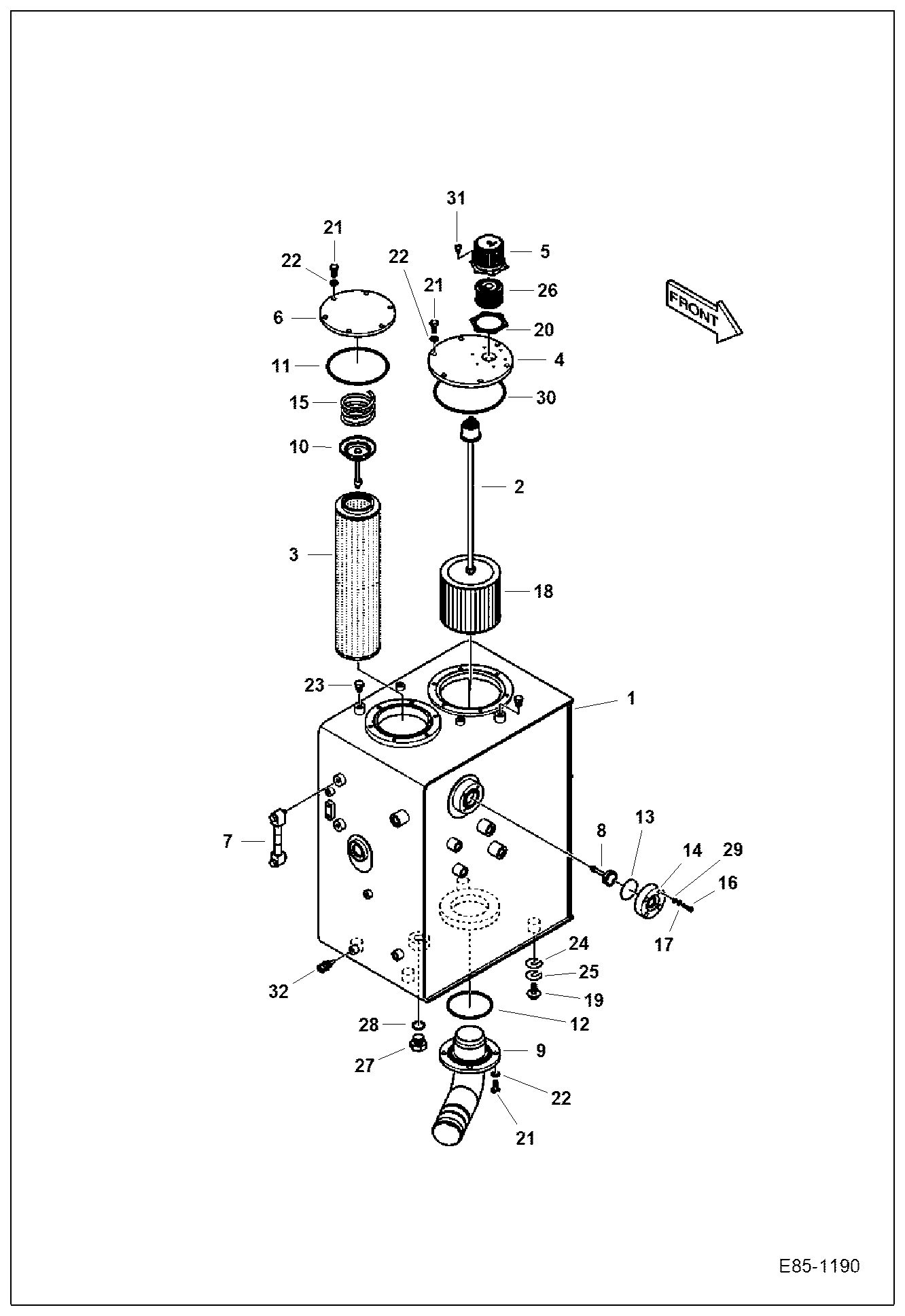

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Oil Tank) HYDRAULIC SYSTEM

1

7028842

TANK, OIL

2

7006462

FILTER SUCTION

3

7004884

FILTER RETURN

4

7004882

COVER

5

7006807

FILTER BREATHER AIR

6

7004997

COVER

7

7003868

GAUGE LEVEL

8

7005679

VALVE BYPASS 2.5K

9

7029276

PIPE, SUCTION

10

7004870

VALVE BYPASS

11

7007955

O-RING

12

7007946

O-RING

13

7007936

O-RING

14

7006061

COVER TANK

15

7004593

SPRING

16

7007726

BOLT

17

7007833

WASHER, SPRING

18

7006811

FILTER STRAINER SUCTION

19

7005122

BOLT SET

20

7006946

GASKET

21

7007628

BOLT

22

7007835

WASHER SPRING

23

7007635

BOLT M12X1.75X16

24

7003859

SHIM

25

7006522

SHIM

26

7006806

FILTER, AIR BREATHER

27

7005575

PLUG

28

7007916

O-RING

29

7007814

WASHER

30

7007956

O-RING

31

7007719

BOLT

32

7029387

SENSOR, HYD OIL TEMP
