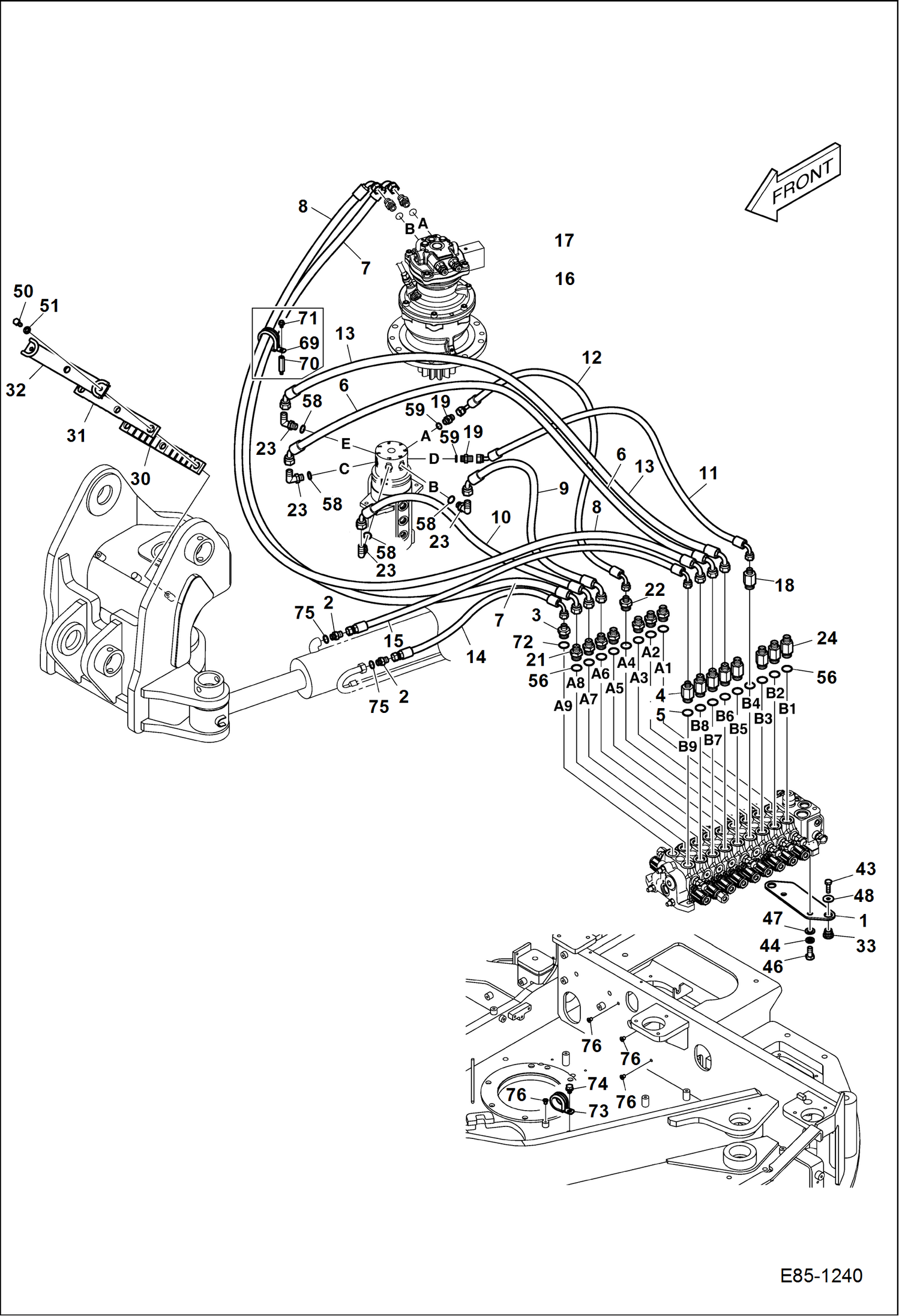

Запчасти Bobcat E85 HYDRAULIC CIRCUITRY (Slew Motor & Valve) HYDRAULIC SYSTEM

1

7029289

PLATE

2

7004700

ADAPTER

3

7004677

ADAPTER

4

7005543

ADAPTER

5

7009947

O-RING

6

7005229

HOSE PF1/2-990L

7

7029135

HOSE, HYD

8

7029136

HOSE, HYD

9

7029121

HOSE, HYD

10

7029199

HOSE, HYD

11

7029182

HOSE, HYD

12

7029181

HOSE, HYD

13

7029092

HOSE, HYD

14

7029178

HOSE, HYD

15

7029180

HOSE, HYD

16

7003899

CLIP

17

7005629

BOLT

18

7005543

ADAPTER

19

7004700

ADAPTER

21

7005542

ADAPTER

22

7004677

ADAPTER

23

7004710

ELBOW

24

7005546

ADAPTER

30

7028890

CLAMP, HOSE

31

7028889

CLAMP, HOSE

32

7029296

PLATE

33

7021821

BUSHING, SPACER

43

7007631

BOLT M10X1.5X35

44

7007837

WASHER

46

7007643

BOLT

47

7007821

WASHER

48

7021845

WASHER

50

7007628

BOLT

51

7007818

WASHER, PLAIN M10

56

7009947

O-RING

58

7007911

O-RING

59

7007909

O-RING

69

7003892

CLIP

70

7029432

STUD

71

7005629

BOLT
