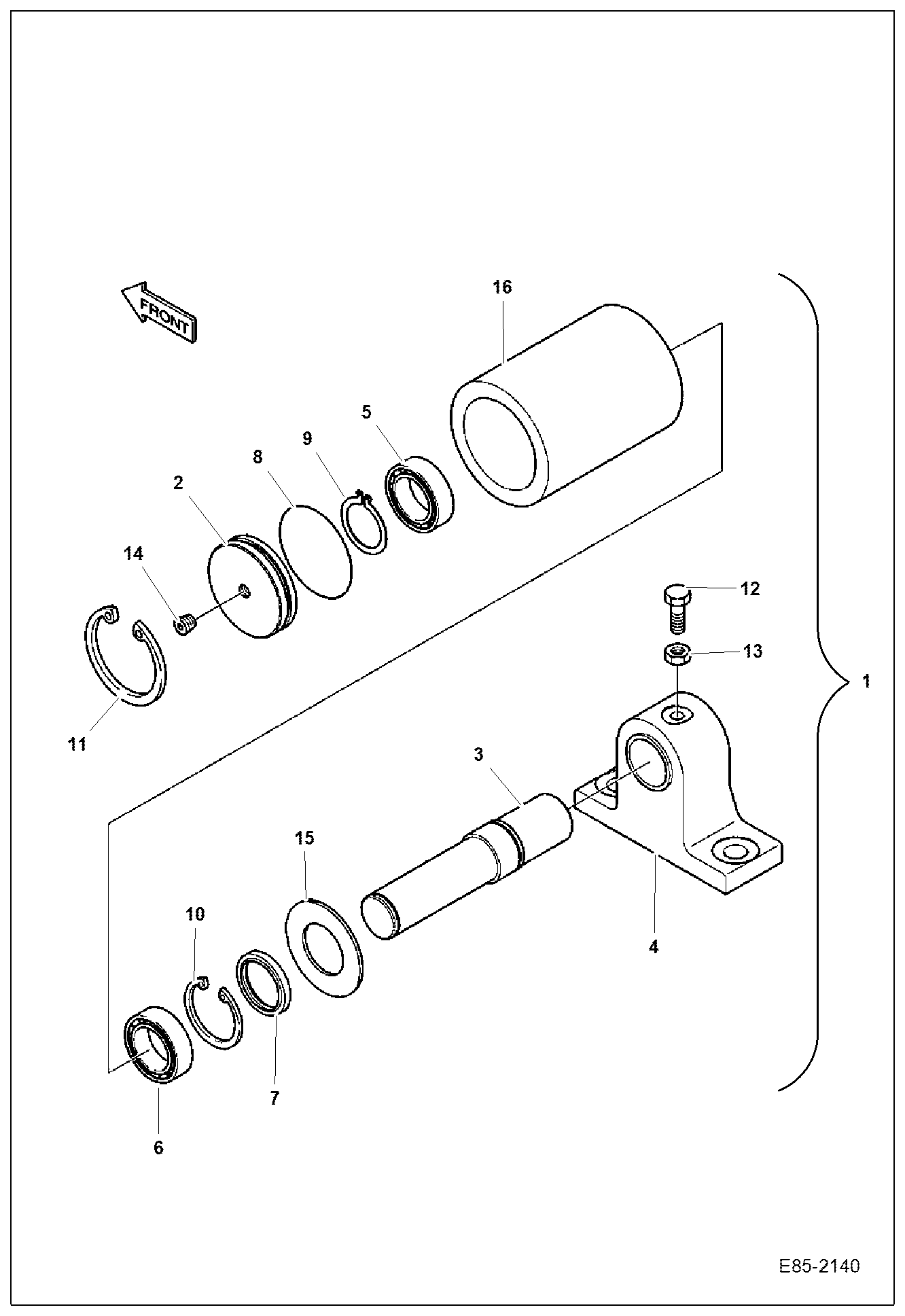

Запчасти Bobcat E85 TRACK ROLLER (Top) UNDERCARRIAGE

1

7012275

ROLLER,UPPER

2

COVER NLA - Order Ref.1

3

SHAFT NLA -Order Ref.1

4

BRACKET NLA - Order Ref.1

5

7007865

BEARING BALL

6

7007866

BEARING BALL

7

7003941

SEAL OIL

8

7007938

O-RING

9

7007876

RING SNAP

10

7007867

RING SNAP

11

7007887

RING SNAP

12

7007639

BOLT

13

7007804

NUT

14

7004671

PLUG PT 1/8

15

7015432

PLATE

16

BODY;ROLLER NLA -Order Ref.1
