TRACK TENSIONER

Запчасти Bobcat E85 TRACK TENSIONER UNDERCARRIAGE

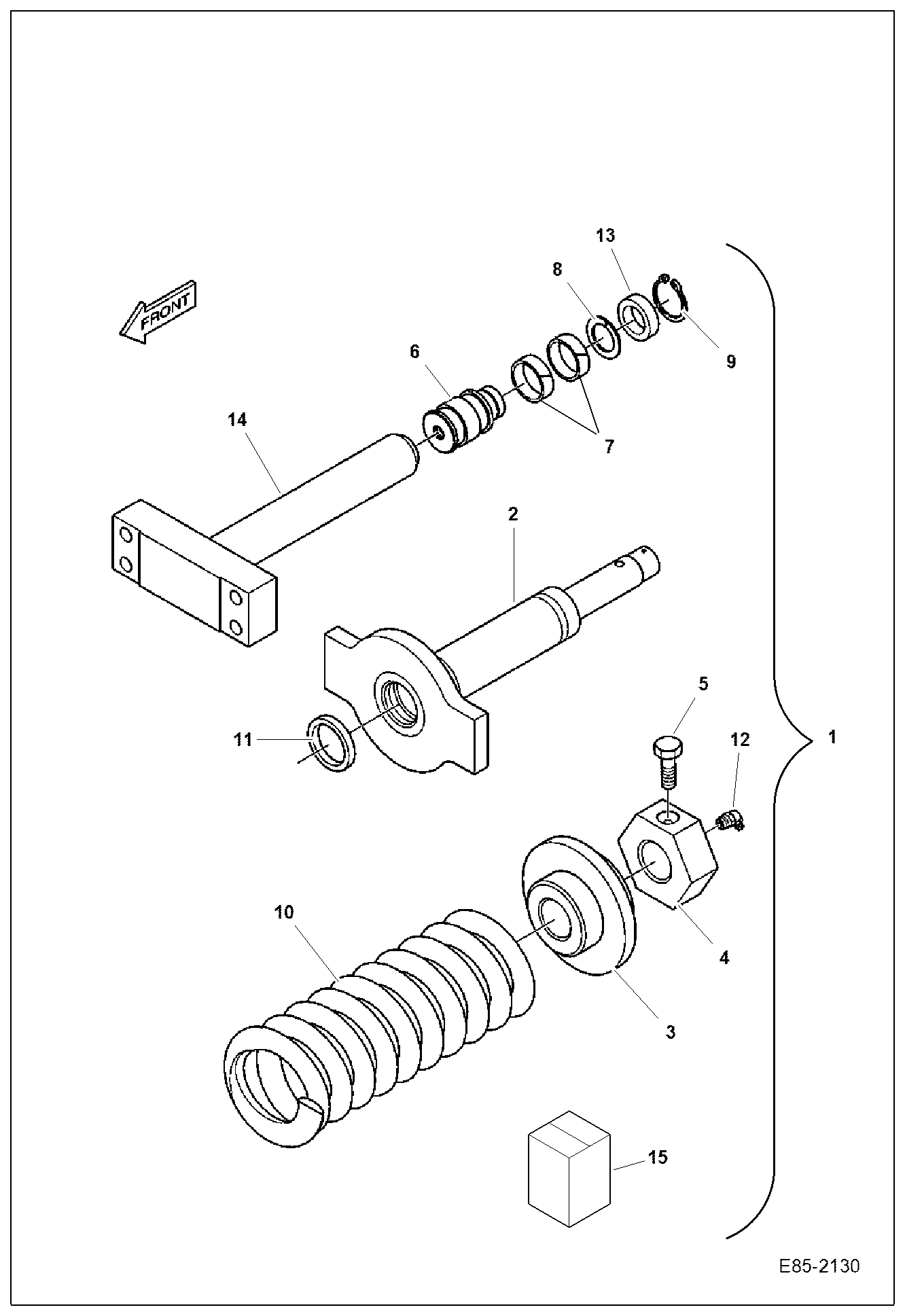

Схема запчастей Bobcat E85 - TRACK TENSIONER UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7029546

TENSIONER, TRACK

2

CYLINDER ASS`Y NLA - Order Ref.1

3

FLANGE NLA - Order Ref.1

4

7004559

NUT

5

7004526

BOLT

6

PISTON NLA - Order Ref.1

7

RING;PISTON NLA - Order Ref.15

8

PACKING NLA - Order Ref.15

9

7007876

RING SNAP

10

7006795

SPRING

11

SEAL NLA - Order Ref.15

12

7004977

VALVE

13

RING:BACK UP NLA - Order Ref.15

14

ROD;PISTON NLA - Order Ref.1

15

7004597

KIT SEAL 7.8.11.13 W/Ref. 7,8,11,13
