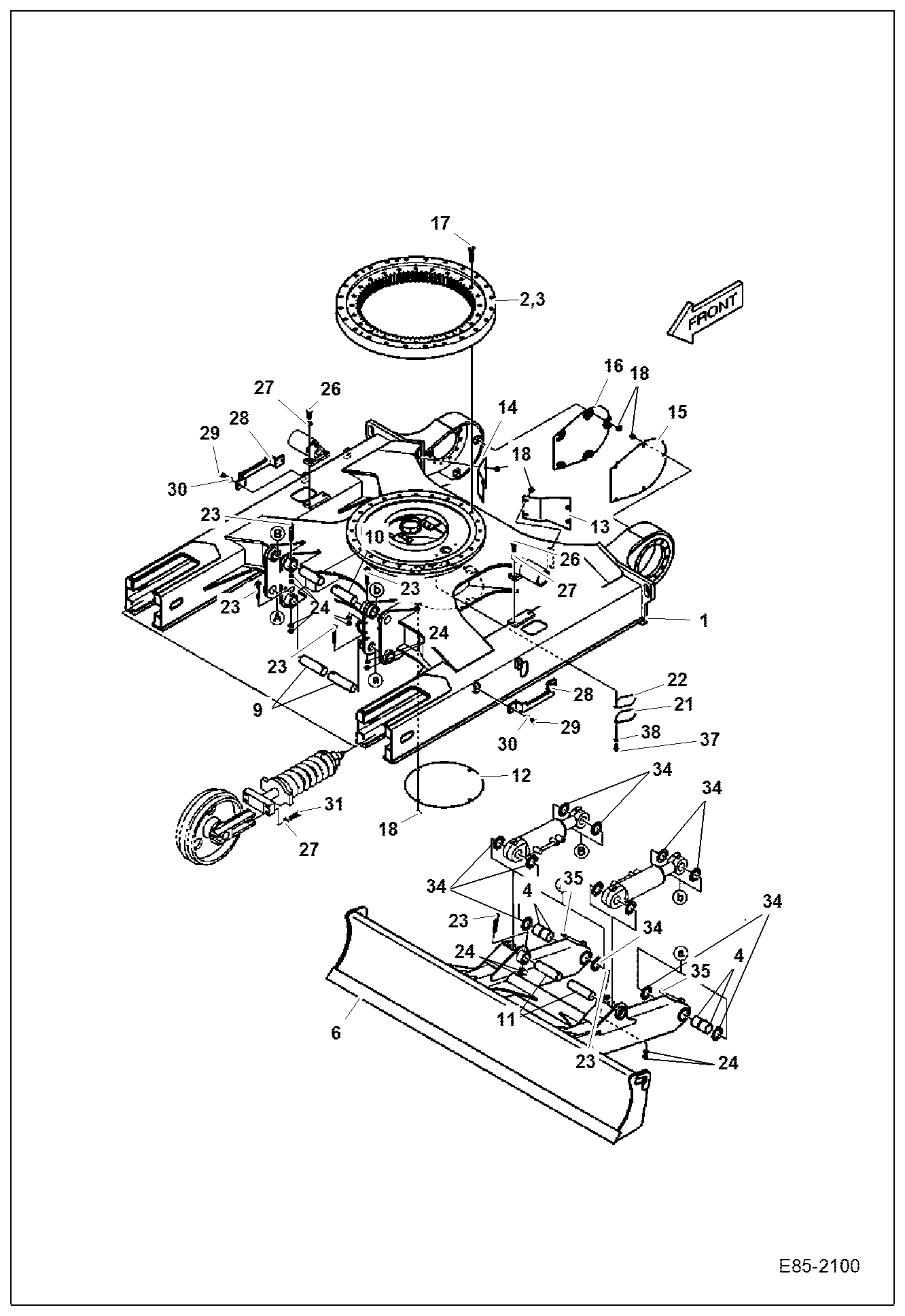

Запчасти Bobcat E85 UNDERCARRIAGE (Track Frame & Blade) UNDERCARRIAGE

1

7029036

FRAME, TRACK

2

7024739

BEARING SWING

3

7024740

SEAL

4

7004456

BUSHING

6

7028695

BLADE, DOZER

9

7022880

PIN

10

7022881

PIN

11

7022882

PIN

12

7004927

COVER

13

7028935

COVER

14

7028936

COVER

15

7004928

COVER LH

16

7004929

COVER RH

17

7007712

BOLT

18

7012244

BOLT,FLANGE

21

7004926

COVER GREASE

22

7004643

SEAL

23

7007698

BOLT

24

7007800

NUT M14

26

7007649

BOLT

27

7029492

WASHER, SPRING

28

7005047

STEP

29

7007640

BOLT

30

7007836

WASHER SPRING M12

31

7007704

BOLT M16X2.0X70

34

7004501

SHIM

35

7007896

FITTING GREASE

37

7007626

BOLT

38

7007835

WASHER SPRING
