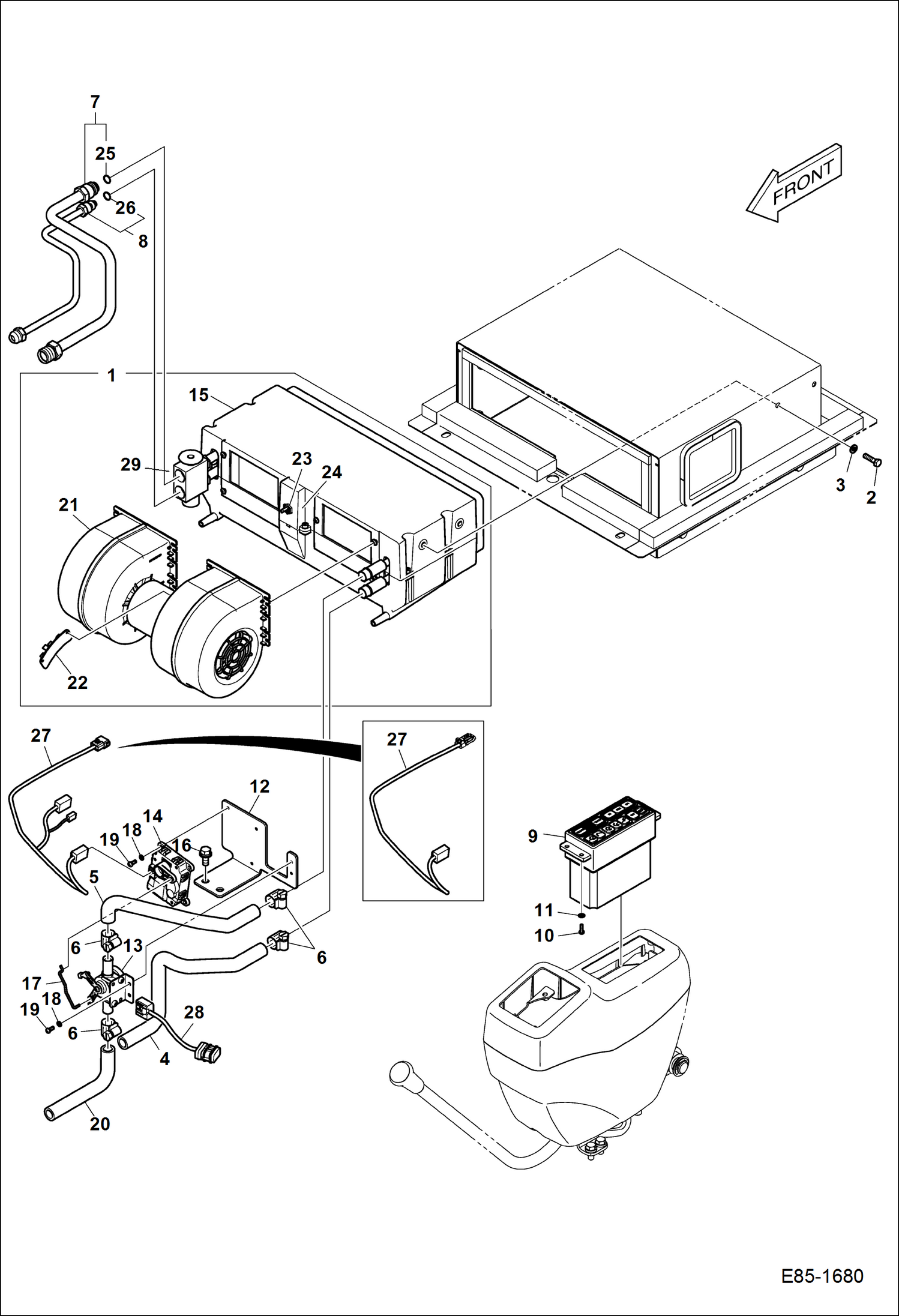

Запчасти Bobcat E85 AIR CONDITIONING (Cab) MAIN FRAME

1

7028922

HVAC ASSY W/Ref.15, 21-24

2

7007609

BOLT

3

7007833

WASHER, SPRING

4

7029195

HOSE, HEATER

5

7029196

HOSE, HEATER FORMED

6

7007974

CLAMP

7

7006594

TUBELINE, A/C SUCTION W/Ref. 25

8

7006597

TUBELINE, A/C LIQUID W/Ref. 26

9

7028927

CONTROL

10

7007777

BOLT

11

7007809

WASHER, PLAIN

12

7028750

BRACKET

13

7029486

VALVE, STEM

14

7029229

VALVE, HEATER CAB

15

7006233

CORE, ASSY

16

7024711

BOLT

17

7029224

ROD, CONTROL

18

7007826

WASHER SPRING

19

7029353

SCREW

20

7029197

HOSE, HEATER FORMED

21

7028698

BLOWER, ASS'Y

22

7006235

RESISTOR, BOX ASSY

23

7022725

THERMOSTAT

24

7028976

COVER, THERMOSTAT

25

7006239

O-RING

26

7006238

O-RING
