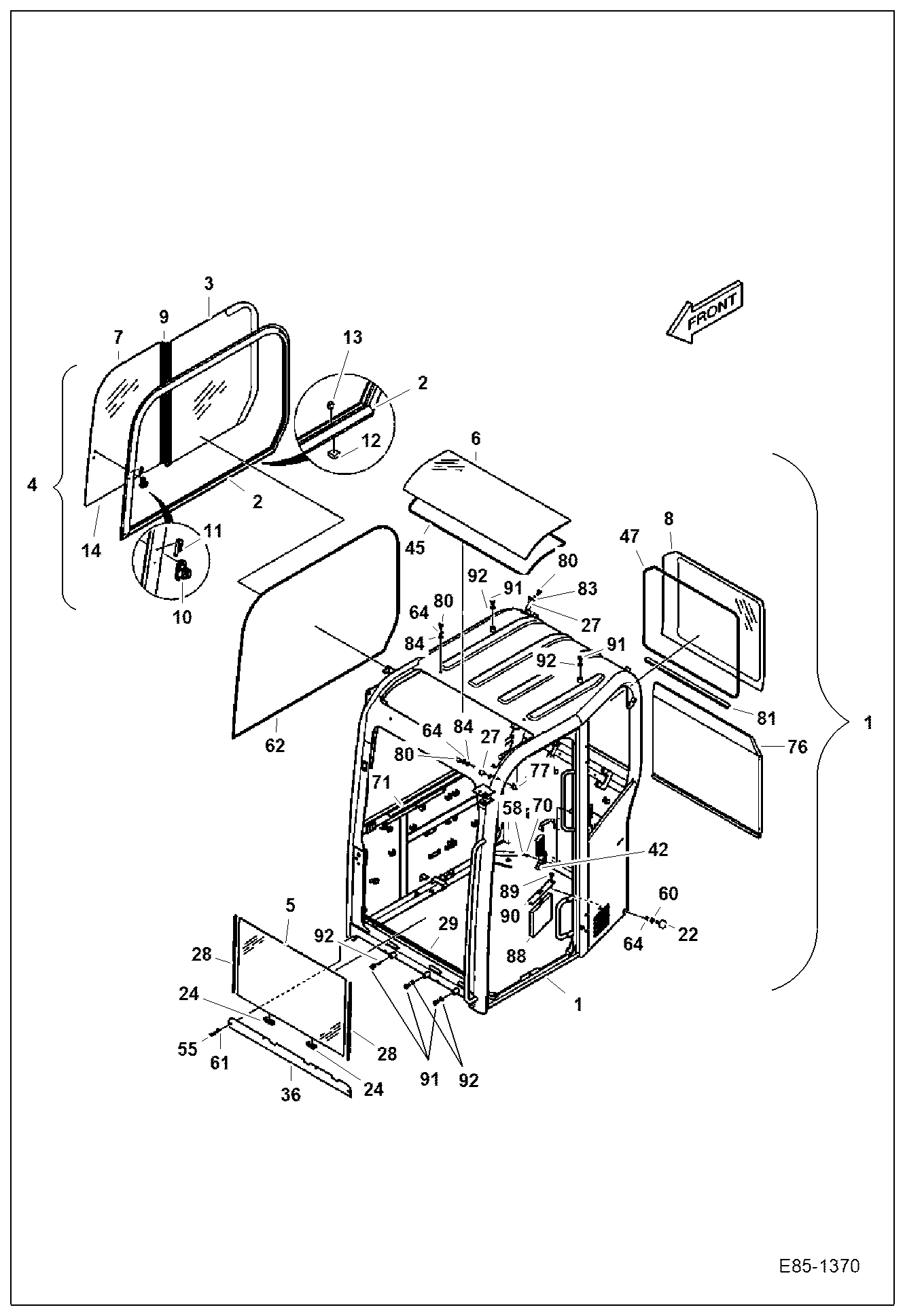

Запчасти Bobcat E85 OPERATOR CAB (Windows) MAIN FRAME

1

7028858

CAB, ASSY W/Ref.2-84

2

FRAME NLA -Order Ref. 4

3

7029058

WINDOW, CAB SIDE FIXED

4

7029348

WINDOW, RH W/Ref. 2,3,7,9-14

5

7006172

GLASS, LOWER

6

7006173

GLASS, UPPER

7

7006782

GLASS

8

7006175

GLASS, REAR

9

7004623

STRIP

10

7004584

LOCK

11

7003867

LOCK, STOP

12

7005046

STOP, RUBBER

13

7004627

STOP, GLASS

14

7004931

BAR

22

7003928

STOP, SLIDE DOOR

24

7004624

STOP, RUBBER

27

7004620

BUSHING, RUBBER

28

7006183

EDGE, RUBBER

29

7005857

SEAL, EXTRUSION

36

7028950

COVER, FRONT

42

7004838

TOOL HAMMER

45

7006192

DAMPER

47

7006194

DAMPER

55

7004546

BOLT

58

7004540

BOLT

60

7004563

NUT

61

7004515

WASHER

62

7006278

DAMPER

64

7004512

WASHER, PLAIN

70

7007808

WASHER

71

7006246

FOAM, POLYURETHANE

76

7006291

FOAM

77

7005588

BUSHING, RUBBER

80

7004544

BOLT

81

7006716

FOAM

83

7004509

WASHER

84

7010377

PAD, RUBBER

88

7029015

FILTER, AIR FRESH

89

7006282

BOLT

90

7029285

PLATE

91

7028712

BOLT

92

7004518

WASHER, PLAIN
