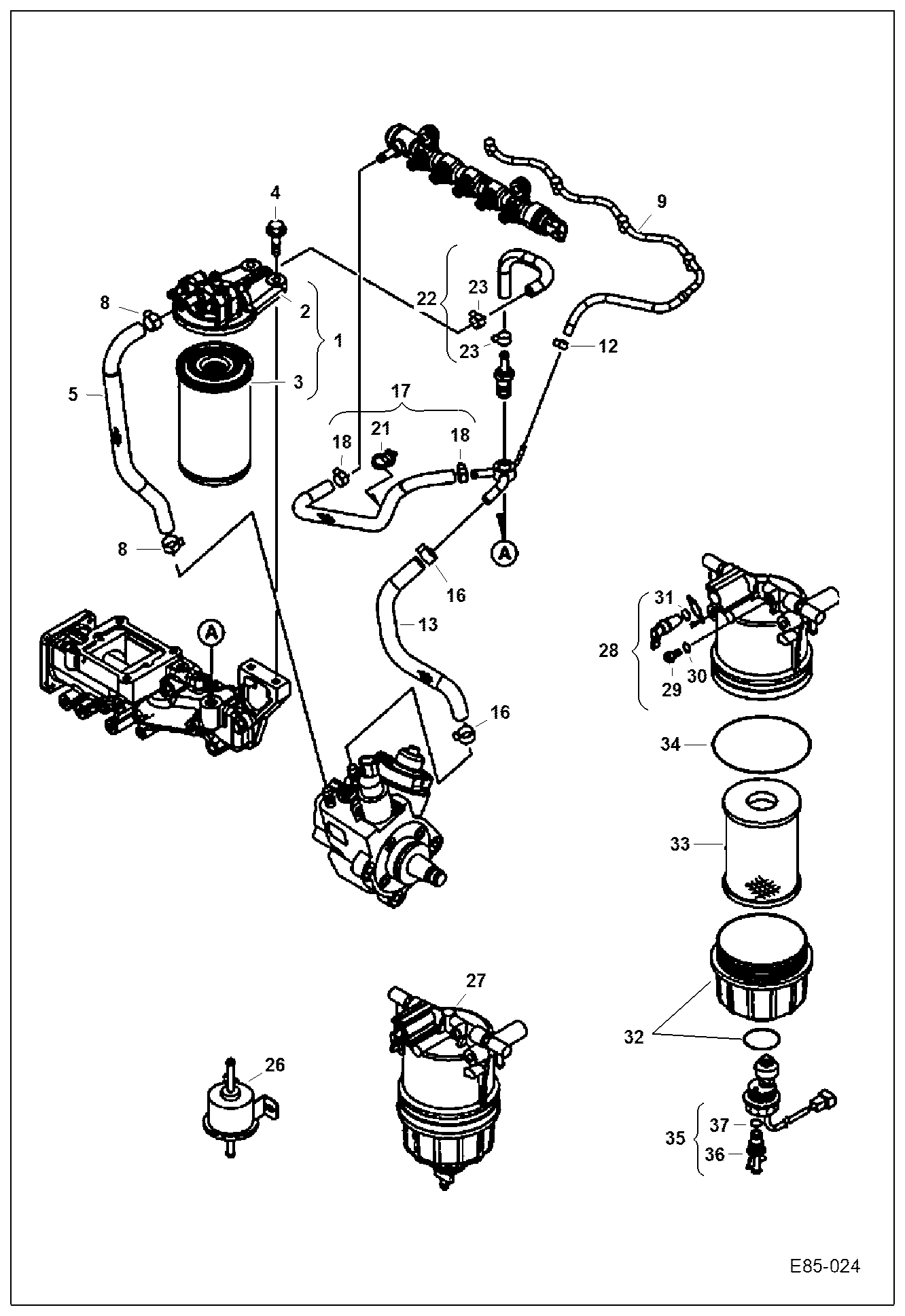

Запчасти Bobcat E85 FUEL SYSTEM POWER UNIT

1

7029014

FILTER, FUEL ASSY W/Ref. 2-3

2

7028811

HEAD, FILTER

3

7029016

FILTER, FUEL

4

7004088

BOLT M8X30

5

7029098

HOSE FUEL W/Ref. 8

8

7028894

CLAMP, HOSE

9

7029261

TUBELINE W/Ref. 12

12

7028893

CLAMP, HOSE

13

7029099

HOSE FUEL W/Ref. 16

16

7028894

CLAMP, HOSE

17

7029100

HOSE FUEL W/Ref. 18,21

18

7028899

CLIP

21

7028880

CLAMP

22

7029101

HOSE FUEL W/Ref.23

23

7028899

CLIP

26

7006899

PUMP FUEL FEED

27

7028834

SEPARATOR, WATER W/Ref. 28-37

28

7028699

HOUSING FILTER W/Ref.29-31

29

7029309

PLUG

30

7029329

O-RING

31

7029330

O-RING

32

7028982

COVER W/ O-RING

33

7029012

FILTER, FUEL

34

7029328

O-RING

35

7029388

SENSOR, LEVEL W/Ref. 36,37

36

7028831

PLUG, DRAIN

37

7029334

O-RING
