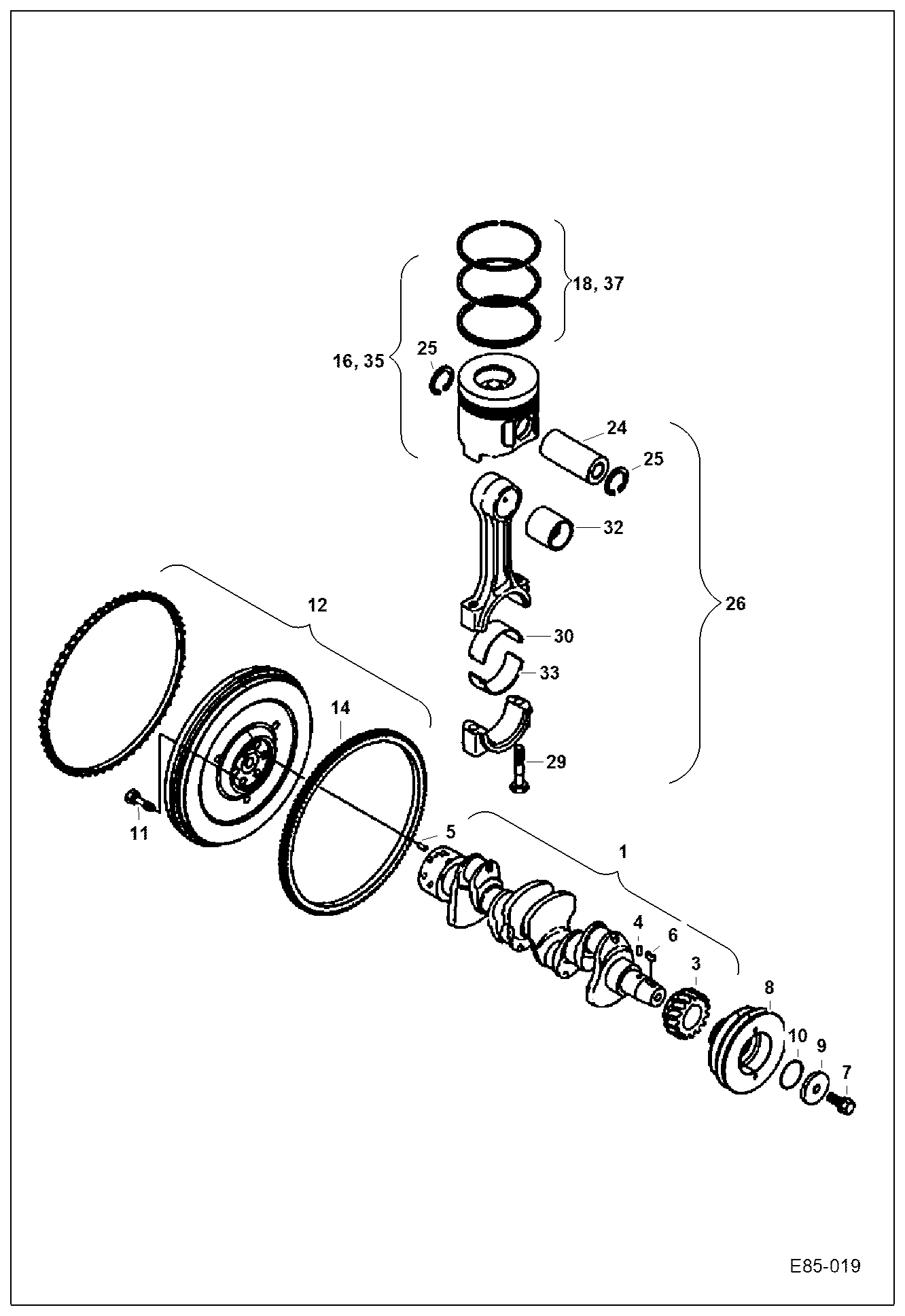

Запчасти Bobcat E85 CRANKSHAFT POWER UNIT

1

7028981

CRANKSHAFT, ENG W/Ref. 3-6

3

7029056

GEAR, CRANKSHAFT

4

7005102

PIN PARALLEL

5

7005103

PIN PARALLEL

6

7004003

KEY

7

7004144

BOLT V-PULLEY

8

7003980

PULLEY V

9

7004018

WASHER

10

7004226

O-RING

11

7005104

BOLT FLYWHEEL

12

7029024

FLYWHEEL, ENG ASSY W/Ref. 14

14

7004358

GEAR RING

16

7029279

PISTON, ASSY W/Ref. 18

18

7029324

RING, PISTON

24

7005072

PIN PISTON

25

7004062

RING SNAP

26

7006842

ROD CONNECTING ASSY W/Ref. 29-32

29

7005073

BOLT ROD

30

7005105

BEARING ASSY STD.

32

7005074

BUSHING PISTON PIN

33

7005106

BEARING CON ROD 0.25

35

7029280

PISTON, ASSY W/Ref. 37

37

7029325

RING, PISTON
