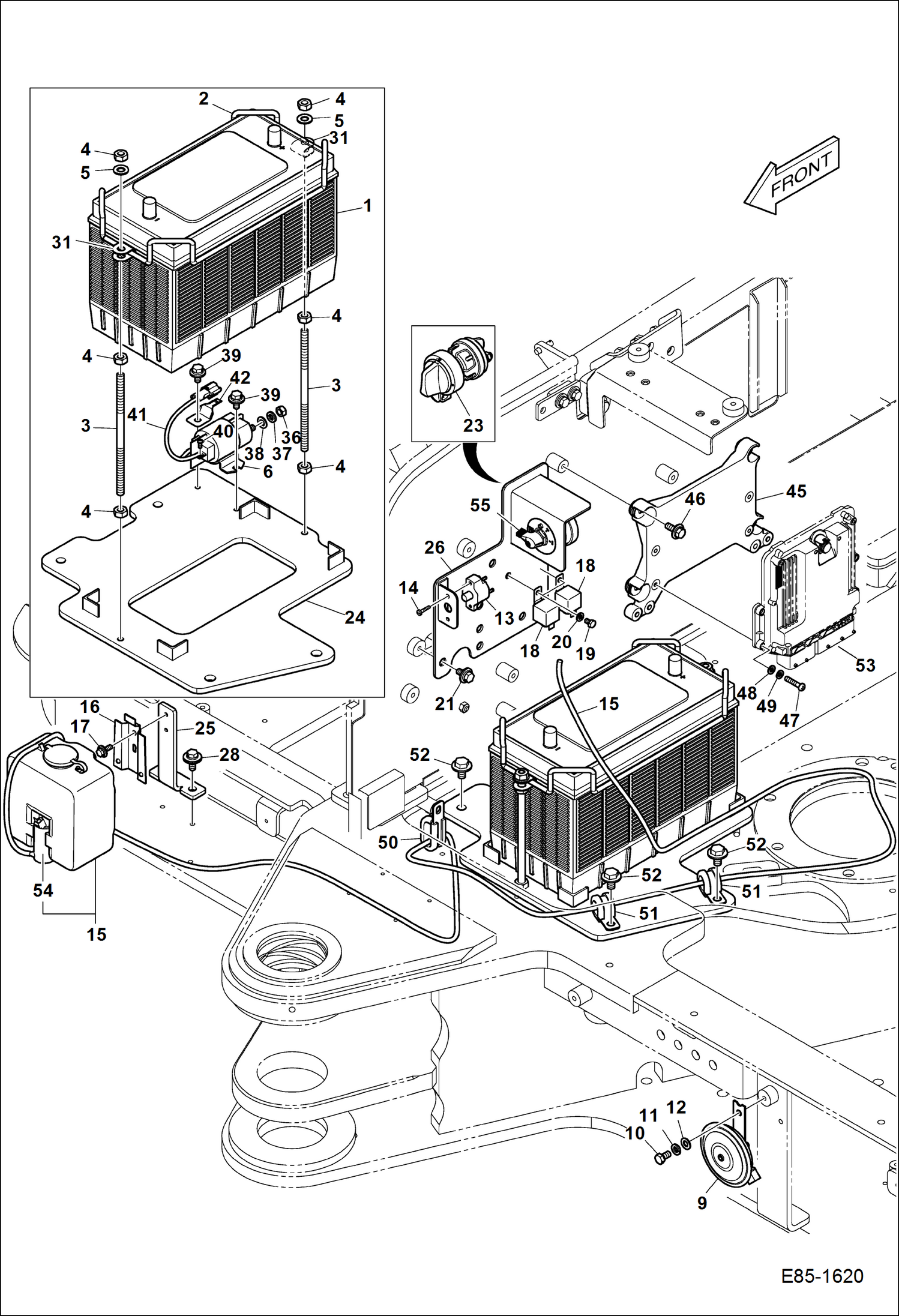

Запчасти Bobcat E85 ELECTRICAL (Battery, Washer Pump, Horn, Relays) ELECTRICAL SYSTEM

1

7028690

BATTERY

2

7010546

BRACKET, BATTERY

3

7010547

BOLT

4

7007798

NUT, M1X1.5

5

7007818

WASHER, PLAIN M10

6

7029320

RELAY

9

7017381

HORN, HIGH

10

7007615

BOLT

11

7007834

WASHER SPRING

12

7007816

WASHER

13

7004898

BREAKER CIRCUIT

14

7004527

BOLT

15

7004961

TANK WINDOW WASHER

16

7004823

BRACKET

17

7005139

BOLT M6X1.0X20

18

7015611

RELAY 70A

19

7007602

BOLT

20

7007833

WASHER, SPRING

21

7005129

BOLT, SET

23

7029447

SWITCH, DISCONNECT

24

7028755

BRACKET, BATTERY

25

7028763

BRACKET, TANK

26

7028752

BRACKET

28

7005128

BOLT, SET

31

7010548

CLIP

36

7007796

NUT

37

7007834

WASHER SPRING

38

7007816

WASHER

39

7005129

BOLT, SET

40

7029353

SCREW

41

7029079

HARNESS, RELAY SWITCH

42

7004826

BRACKET, HOUSING

44

7028925

CONTROLLER, ECU SERVICE

45

7028756

BRACKET, GUIDE ASSY

46

7005137

BOLT M8X1.25X25

47

7029355

SCREW

48

7007811

WASHER PLAIN

49

7007828

WASHER SPRING

50

7003906

CLIP

51

7028913

CLIP

52

7028721

BOLT
