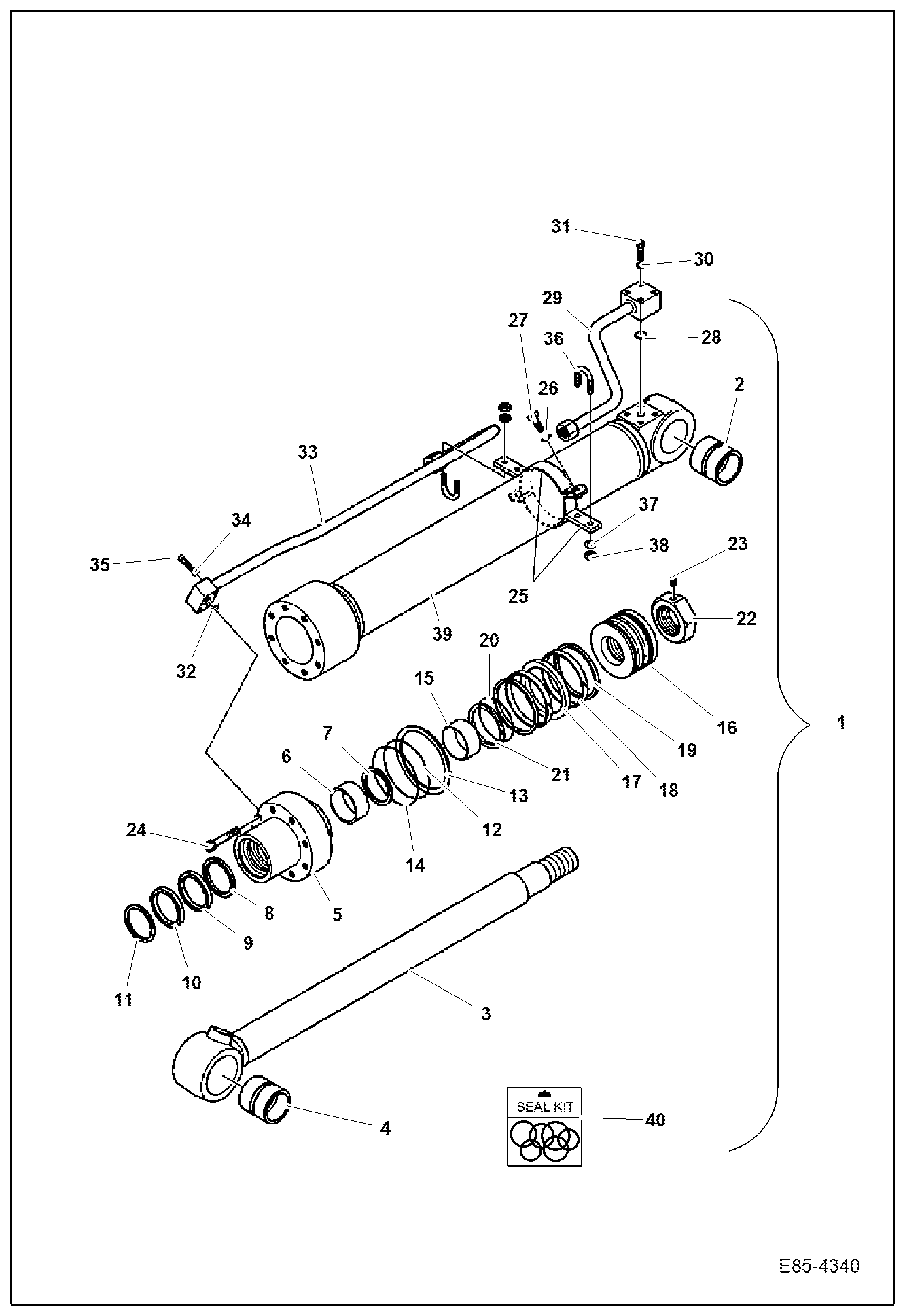

Запчасти Bobcat E85 BUCKET CYLINDER HYDRAULIC SYSTEM

1

7028985

CYLINDER, BUCKET W/Ref.2-39

2

7028765

BUSHING

3

7029343

CLYLINDER, BUCKET

4

7028766

BUSHING

5

7028965

HEAD, CYL HYD

6

7007333

BUSHING DU

7

7003723

RING RETAINING

8

SEAL BUFFER NLA- Order Ref. 40

9

SEAL NLA - Order Ref. 40

10

WIPER DUST NLA - Order Ref. 40

11

7003864

RING RETAINING

12

O-RING NLA - Order Ref. 40

13

RING, BACK UP NLA - Order Ref. 40

14

O-RING NLA - Order Ref. 40

15

7003727

RING CUSHION

16

7028827

PISTON

17

RING, WEAR NLA - Order Ref. 40

18

WEAR RING NLA - Order Ref. 40

19

SEAL, DUST NLA - Order Ref. 40

20

ORING NLA - Order Ref. 40

21

RING, BACKUP NLA - Order Ref. 40

22

7015684

NUT,PISTON

23

7015685

SCREW,SET

24

7007772

BOLT HEX SOCKET

25

7028885

CLAMP, CYL

26

7007830

WASHER SPRING

27

7007668

BOLT

28

7007912

O-RING

29

7029271

TUBELINE

30

7007829

WASHER

31

7010488

BOLT,HEX SOCKET

32

7007912

O-RING

33

7029272

TUBELINE

34

7007829

WASHER

35

7007740

BOLT SOCKET M8X45

36

7007505

U-BOLT

37

7007829

WASHER

38

7007796

NUT

39

7029467

TUBELINE, HYD

40

7029549

KIT, SEAL W/Ref.8-10,12-14,17-21
