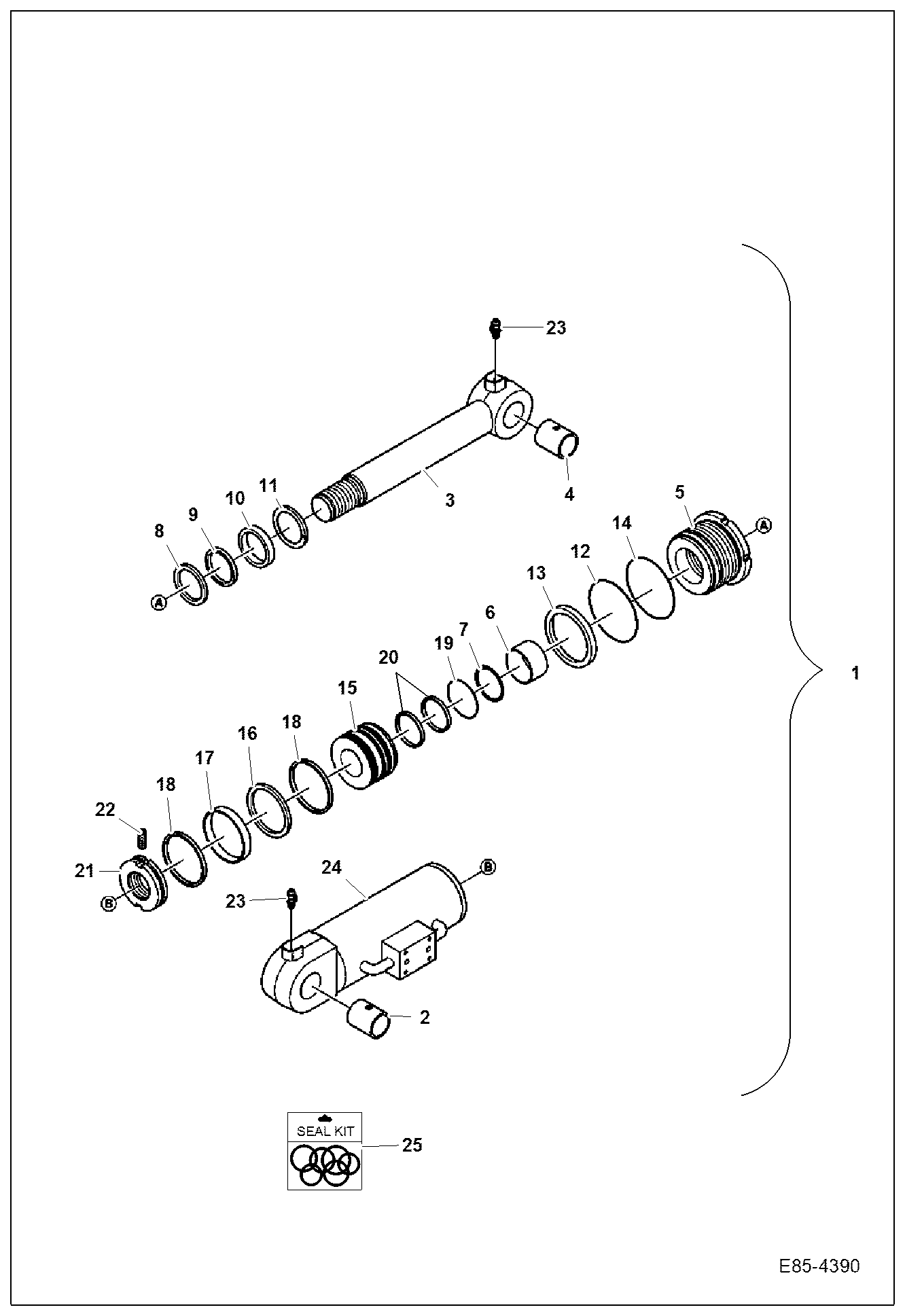

Запчасти Bobcat E85 BLADE CYLINDER (RH W/Lock Valve) HYDRAULIC SYSTEM

1

7006548

CYLINDER BLADE RH W/Ref.2-24

2

7003706

BUSHING

3

7007517

ROD ASSY

4

7003706

BUSHING

5

7007518

COVER ROD

6

7007333

BUSHING DU

7

7003730

RING RETAINING

8

7003787

SEAL BUFFER

9

7003761

SEAL

10

7003865

WIPER DUST

11

7003864

RING RETAINING

12

7007944

O-RING

13

7003772

RING BACK-UP

14

7007945

O-RING

15

7007519

PISTON

16

7003947

SEAL SLIPPER

17

7006827

RING WEAR

18

7006828

RING DUST

19

7007935

O-RING

20

7007970

RING BACK-UP

21

7003736

NUT

22

7007792

SCREW SET

23

7007893

FITTING GREASE

24

7007520

TUBELINE ASSY RH

25

7007414

KIT, SEAL W/Ref. 8-10,12-14,16-20
