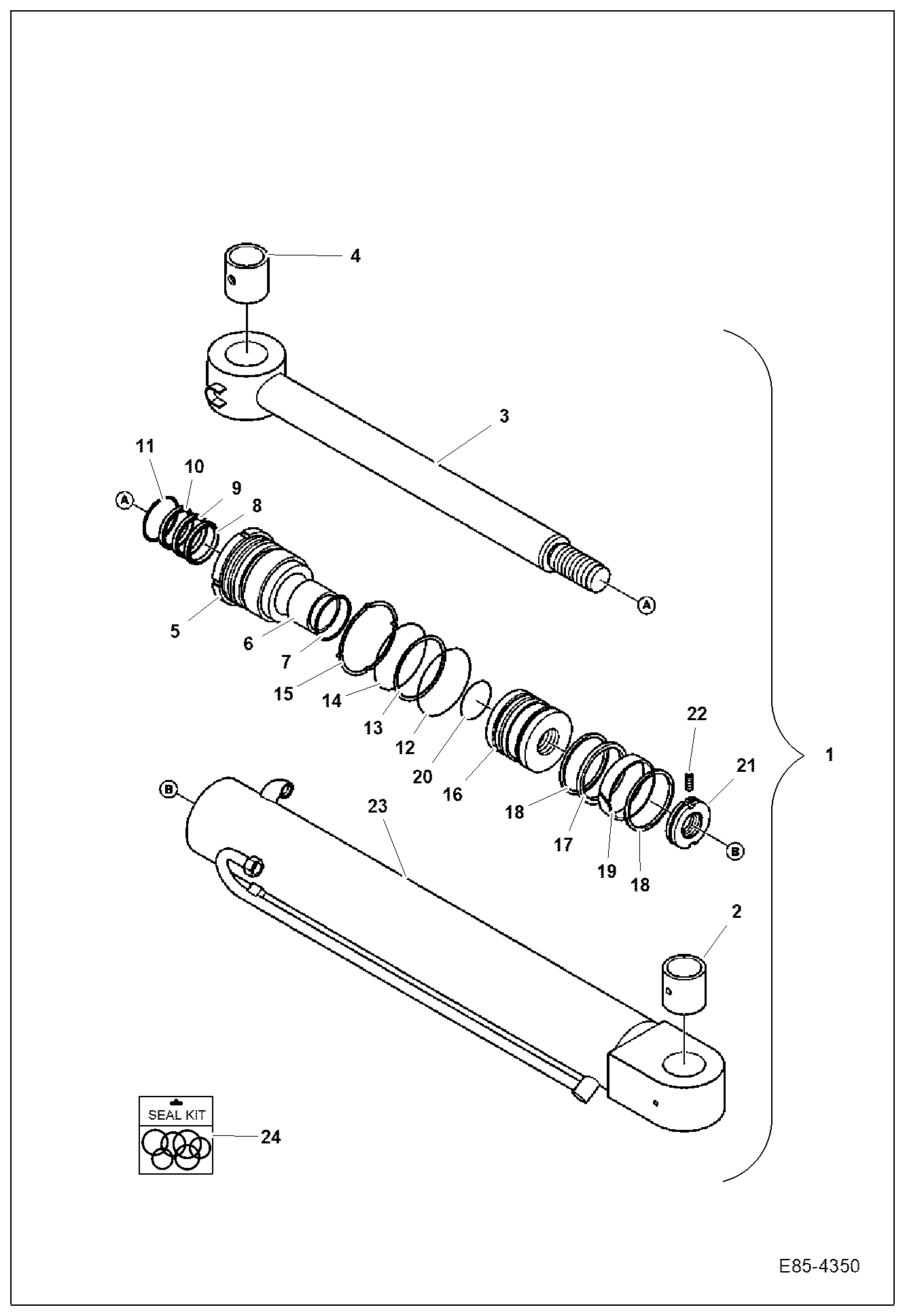

Запчасти Bobcat E85 BOOM SLEW CYLINDER HYDRAULIC SYSTEM

1

7006155

CYLINDER BOOM SWING W/Ref.2-23

2

7003705

BUSHING

3

7007548

ROD ASSY

4

7003705

BUSHING

5

7007549

COVER ROD

6

7007551

BUSHING DU

7

7003730

RING RETAINING

8

7003787

SEAL BUFFER

9

7003761

SEAL

10

7003865

WIPER DUST

11

7003864

RING RETAINING

12

7007948

O-RING

13

7003762

RING BACK-UP

14

7007950

O-RING

15

7003717

WASHER

16

7007550

PISTON

17

7003776

RING GLYD

18

7003795

RING DUST

19

7003796

RING WEAR

20

7007935

O-RING

21

7003736

NUT

22

7007792

SCREW SET

23

7007547

TUBELINE ASSY

24

7004994

KIT SEAL W/Ref.8-10,12-14,17-20
