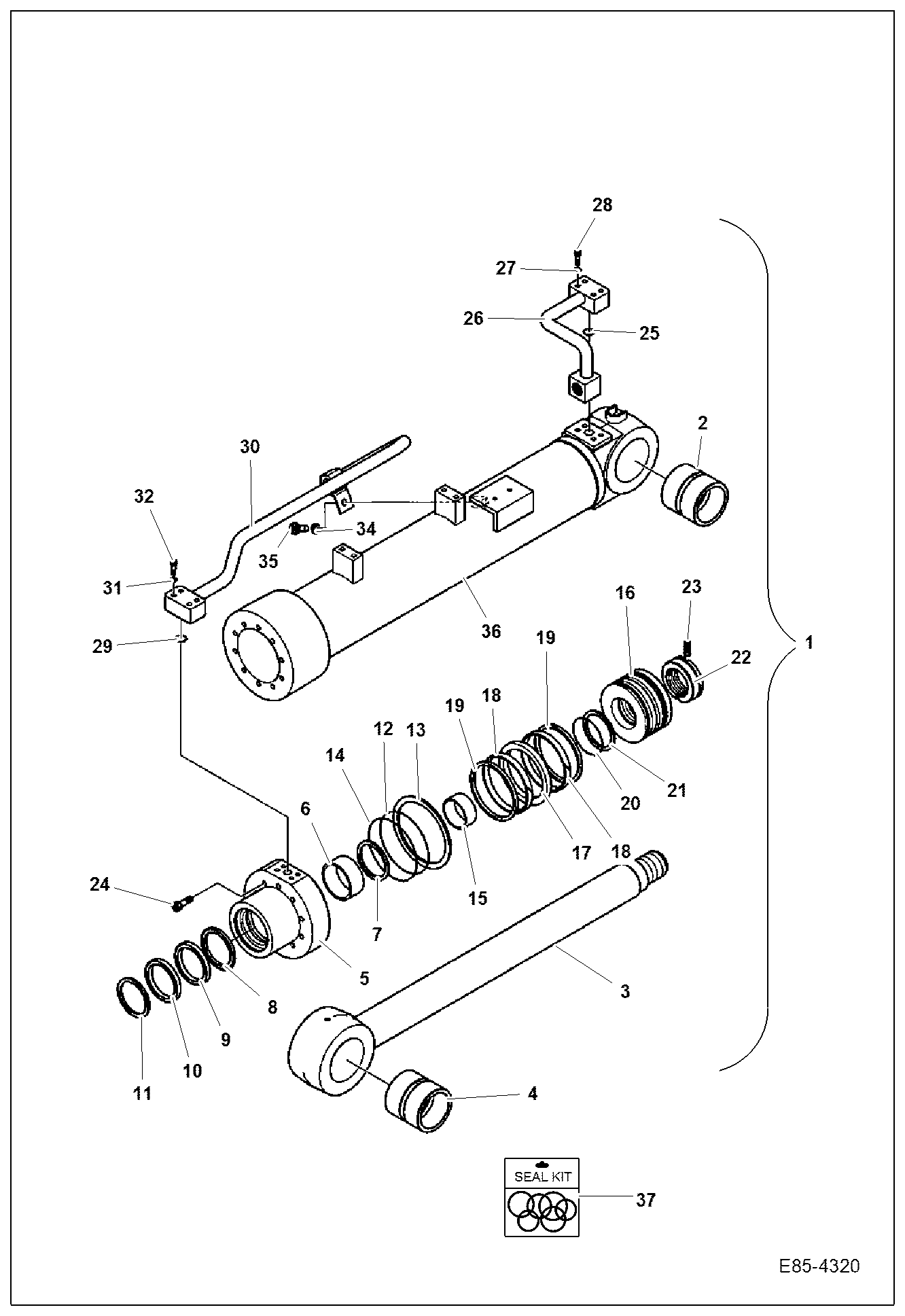

Запчасти Bobcat E85 BOOM CYLINDER (W/Lock Valve) HYDRAULIC SYSTEM

1

7028984

CYLINDER, BOOM W/Ref.2-36

2

7028764

BUSHING MOUNT

3

7029340

ROD, CYL

4

7028764

BUSHING MOUNT

5

7028964

HEAD, CYL HYD

6

7003708

BUSHING DD

7

7003864

RING RETAINING

8

7003948

SEAL BUFFER

9

7003797

SEAL

10

7003789

WIPER DUST

11

7006832

RING RETAINING

12

7007950

O-RING

13

7006833

RING BACK-UP

14

7007951

O-RING

15

7006933

RING CUSHION

16

7007512

PISTON

17

7003779

RING GLYD

18

7003783

RING WEAR

19

7006834

RING DUST

20

7003754

O-RING

21

7003765

RING BACK-UP

22

7022907

NUT

23

7022908

SCREW

24

7007775

BOLT HEX SOCKET

25

7007919

O-RING

26

7022909

TUBELINE HYDRAULIC

27

7007830

WASHER SPRING

28

7022910

BOLT

29

7007912

O-RING

30

7022911

TUBELINE HYDRAULIC

31

7007829

WASHER

32

7007742

BOLT SOCKET

34

7007830

WASHER SPRING

35

7007625

BOLT

36

7029466

TUBELINE, HYD

37

7004992

KIT SEAL W/Ref. 8-10,12-14,17-20
