Запчасти Bobcat E85 JOYSTICK VALVES (Dozer) HYDRAULIC SYSTEM

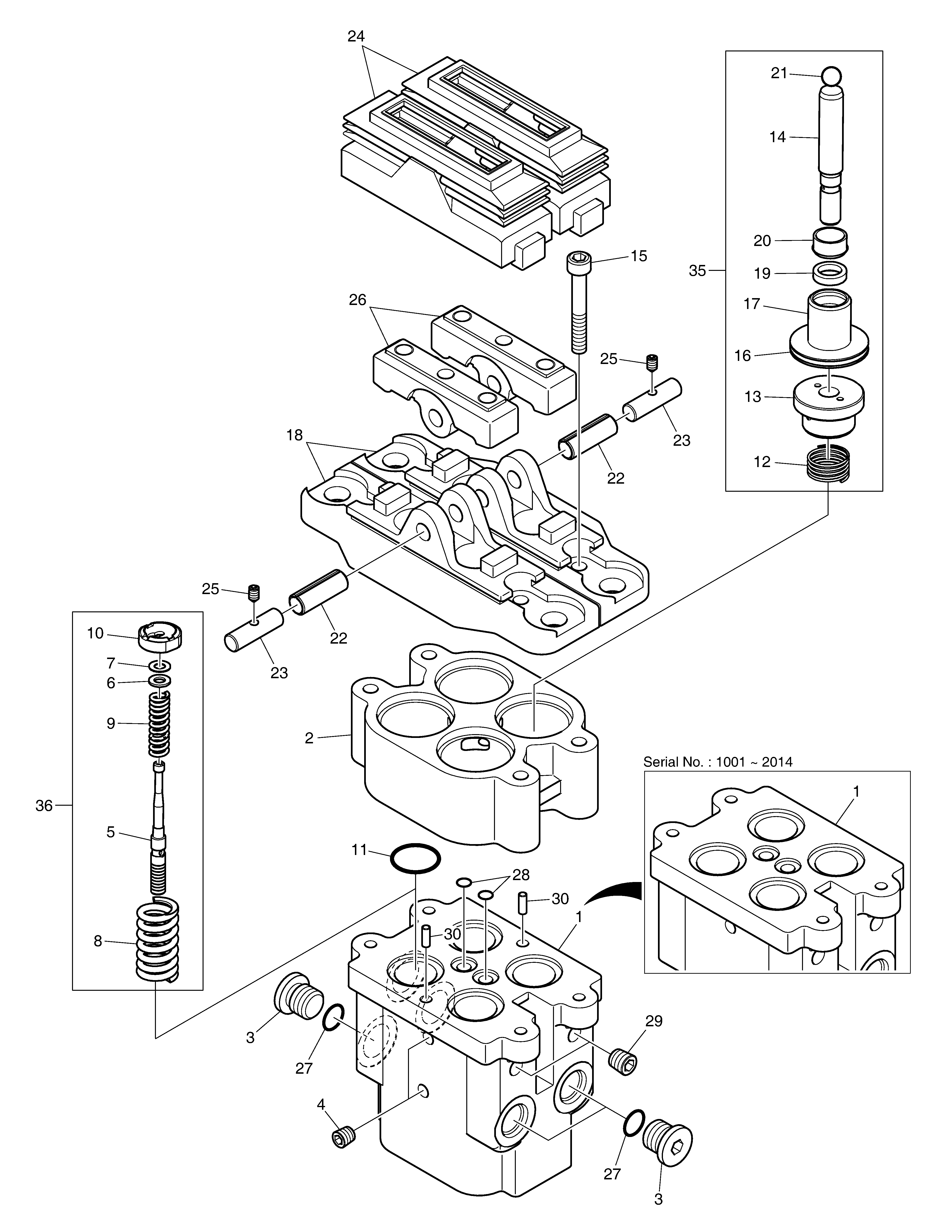

Схема запчастей Bobcat E85 - JOYSTICK VALVES (Dozer) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7028854

VALVE, PEDAL

2

CASING(2) NLA - Order Ref.1

3

7004727

PLUG

4

7003955

PLUG

5

SPOOL NLA - Order Ref.36

6

WASHER NLA - Order Ref.36

7

WASHER NLA - Order Ref.36

8

SPRING NLA - Order Ref.36

9

SPRING NLA - Order Ref.36

10

CLIP NLA - Order Ref.36

11

7007912

O-RING

12

SPRING NLA - Order Ref.35

13

PISTON NLA - Order Ref.35

14

PUSHROD NLA - Order Ref.35

15

7007730

BOLT SOCKET

16

7004663

O-RING NLA - Order Ref.35

17

PLUG NLA - Order Ref.35

18

7008285

COVER

19

PIN NLA - Order Ref.1

19

SEAL NLA - Order Ref.35

20

CAP NLA - Order Ref.35

21

BALL NLA - Order Ref.35

22

7004457

BUSHING

23

7007040

SHAFT CAM

24

7007041

DIAPHRAGM BELLOWS

25

7007791

BOLT

26

7028862

CAM

27

7007906

O-RING

28

7007903

O-RING

29

7004673

PLUG

30

CASING(1) NLA - Order Ref.1

35

7029312

KIT, PLUG

36

7029409

SPOOL, ACTUATOR ASSY

Выбрано товаров: 33
