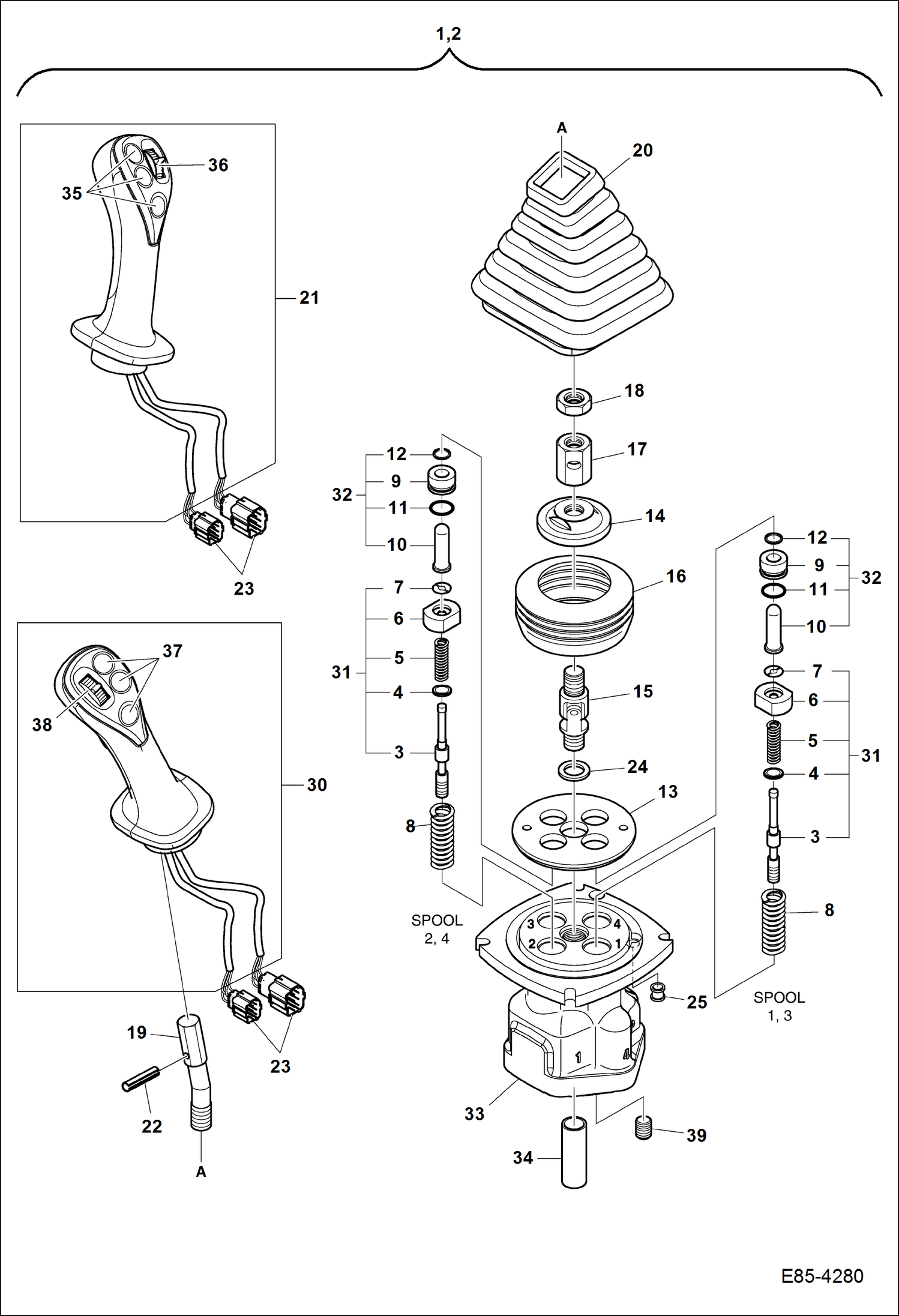

Запчасти Bobcat E85 JOYSTICK VALVES HYDRAULIC SYSTEM

1

7028847

VALVE, JOYSTICK (L.H)

2

7028848

VALVE, JOYSTICK (R.H)

3

SPOOL NLA - Order Ref.1

4

SHIM NLA - Order Ref.1

5

SPRING NLA - Order Ref.1

6

7003837

SEAT SPRING

7

7003927

STOP

8

7029413

SPRING

9

PLUG NLA - Order Ref.1

10

7003840

ROD PUSH

11

7007912

O-RING

12

7006819

SEAL ROD

13

7029288

PLATE

14

7029303

PLATE

15

7028816

JOINT, ASSY

16

7028733

BOOT, RUBBER

17

7003733

NUT HEX

18

7029242

NUT

19

7029391

SHAFT

20

7028731

BOOT, RUBBER

21

7029217

JOYSTICK, LH W/Ref.35,36

22

7007859

PIN SPRING

23

7028923

CONNECTER ASSY

25

7003711

BUSHING

30

7029218

JOYSTICK, RH W/Ref.37,38

31

7029408

KIT, SPOOL W/Ref.3-7

32

7029311

KIT, PLUG W/Ref.9-12,15,16

33

CASE NLA - Order Ref.1

34

7028772

BUSHING

35

7029513

SWITCH, PUSH-BUTTON

36

7029452

SWITCH, PRESS

37

7029513

SWITCH, PUSH-BUTTON

38

7029452

SWITCH, PRESS
