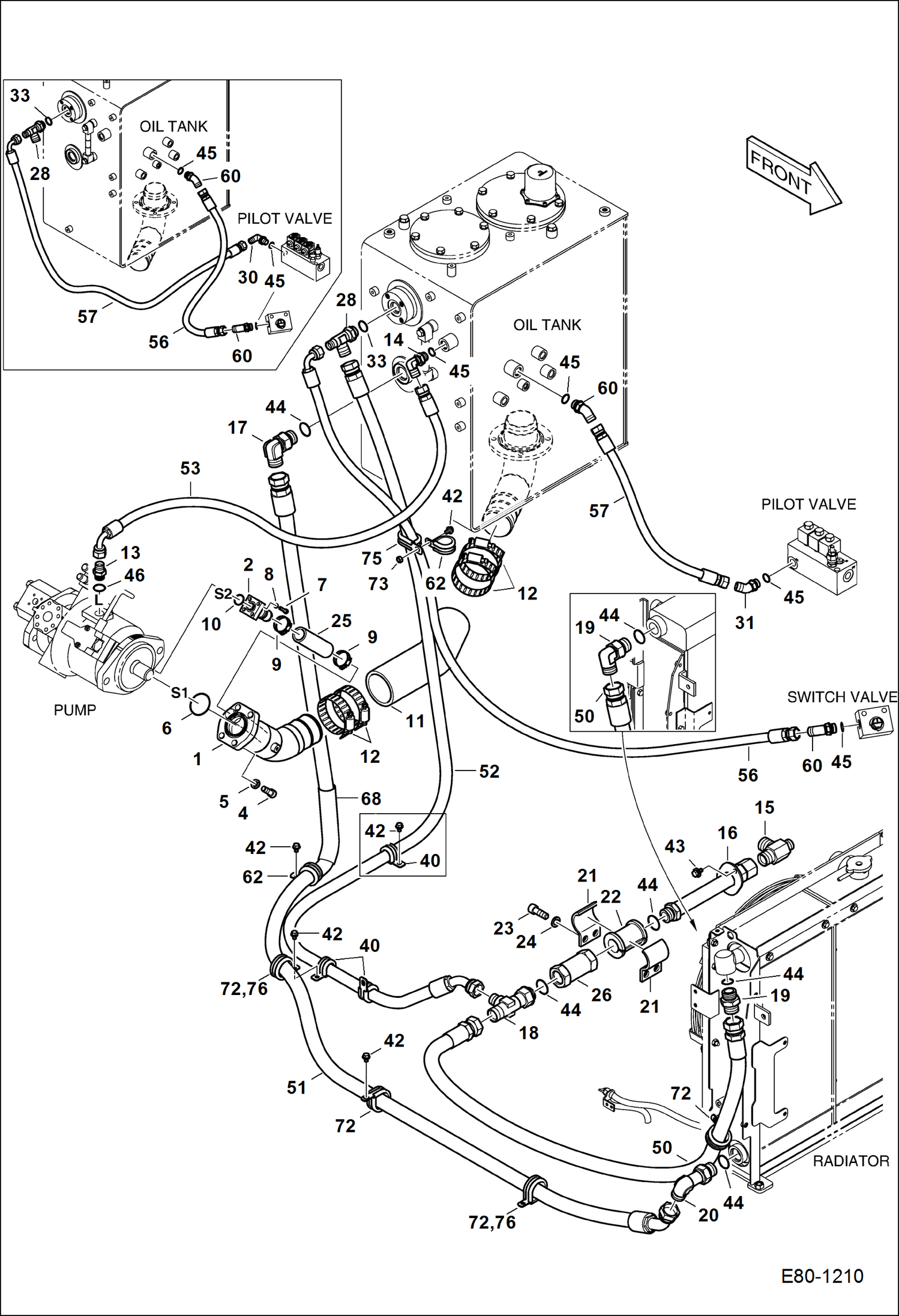

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Supply & Return) HYDRAULIC SYSTEM

1

7006305

TUBELINE SUCTION

2

7006408

TUBELINE SUCTION

4

7007761

BOLT M12X1.75X35

5

7007845

WASHER SPRING

6

7004633

O-RING

7

7007726

BOLT

8

7008301

WASHER

9

7007976

CLAMP HOSE

10

7007915

O-RING

11

7023170

HOSE DRAIN Was 7006294 - B

12

7007982

CLAMP

13

7004690

ADAPTER

14

7004717

ELBOW

15

7005568

TEE

16

7006425

TUBELINE

17

7004708

ELBOW

18

7004742

TEE

19

7004725

ELBOW

20

7005560

ELBOW

21

7003908

CLAMP

22

7003931

PAD

23

7007771

BOLT

24

7007837

WASHER

25

7004783

HOSE

26

7006757

VALVE BYPASS

28

7005565

TEE

30

7004710

ELBOW

33

7007916

O-RING

40

7003896

CLIP

42

7005629

BOLT

43

7005129

BOLT, SET

44

7007920

O-RING

45

7007911

O-RING

46

7007962

O-RING

50

7005154

HOSE

51

7005175

HOSE

52

7005176

HOSE

53

7005204

HOSE

56

7005163

HOSE

57

7005447

HOSE

60

7004757

ELBOW

62

7003897

CLIP

68

7006523

GUARD PROTECTOR
