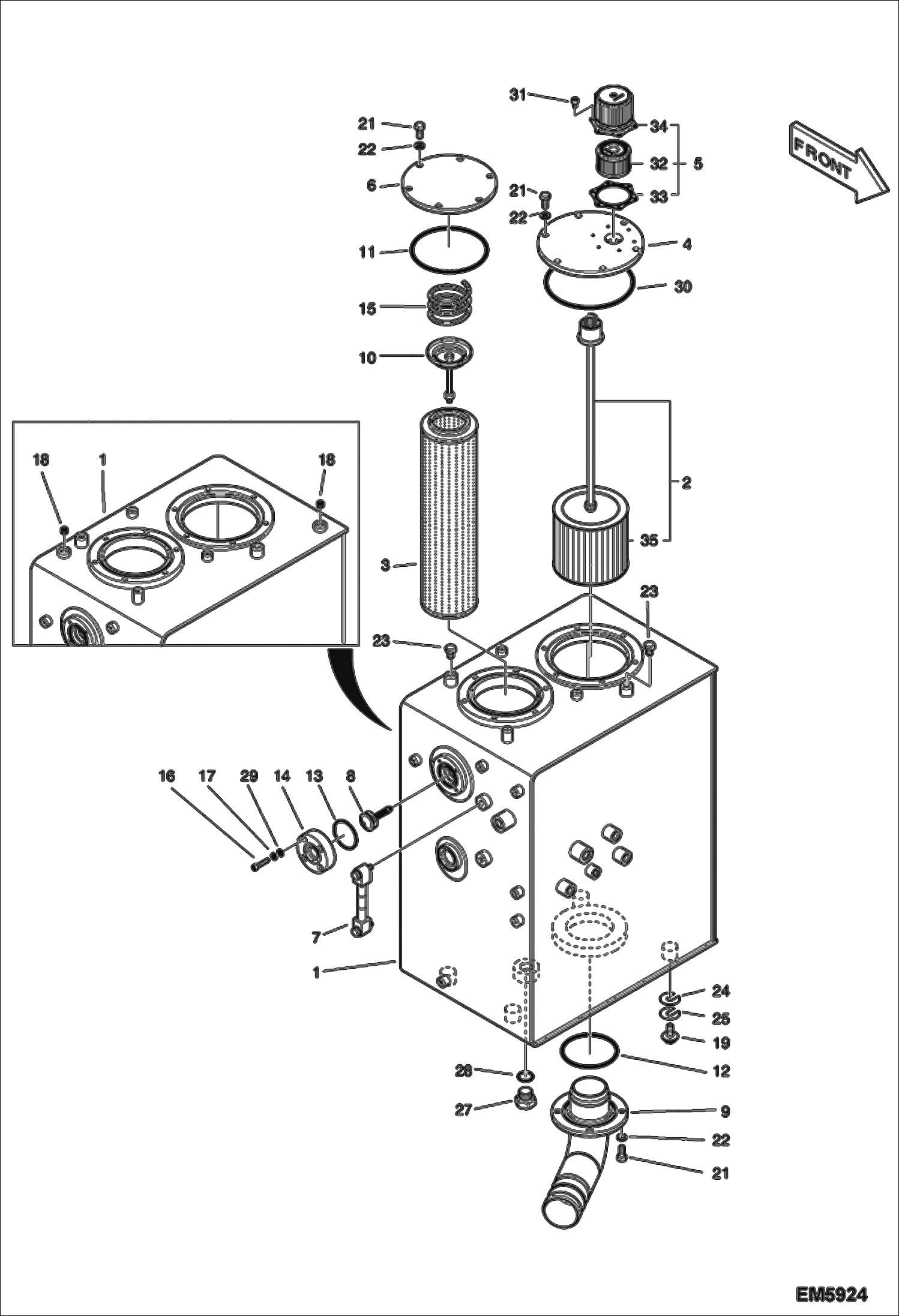

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Oil Tank) HYDRAULIC SYSTEM

1

7012254

TANK,OIL Was 7006124 - A

2

7006462

FILTER SUCTION W/Ref. 35

3

7004884

FILTER RETURN

4

7004882

COVER

5

7006807

FILTER BREATHER AIR W/Ref. 32-34

6

7004997

COVER

7

7003868

GAUGE LEVEL

8

7005679

VALVE BYPASS 2.5K 2.5K

9

7006140

TUBELINE SUCTION

10

7004870

VALVE BYPASS

11

7007955

O-RING

12

7007946

O-RING

13

7007936

O-RING Was 7007926 - A

14

7006061

COVER TANK

15

7004593

SPRING

16

7007728

BOLT SOCKET

17

7007833

WASHER, SPRING

18

7004673

PLUG use W/Ref. 7006124 tank

19

7005122

BOLT SET

21

7007628

BOLT

22

7007835

WASHER SPRING

23

7007635

BOLT M12X1.75X16

24

7003859

SHIM

25

7006522

SHIM

27

7005575

PLUG

28

7007916

O-RING

29

7007814

WASHER

30

7007956

O-RING

31

7007719

BOLT

32

7006806

FILTER, AIR BREATHER Was 7006808 - A

33

7006946

GASKET

34

CAP NSS - Order Ref. 5

35

7006811

FILTER STRAINER SUCTION
