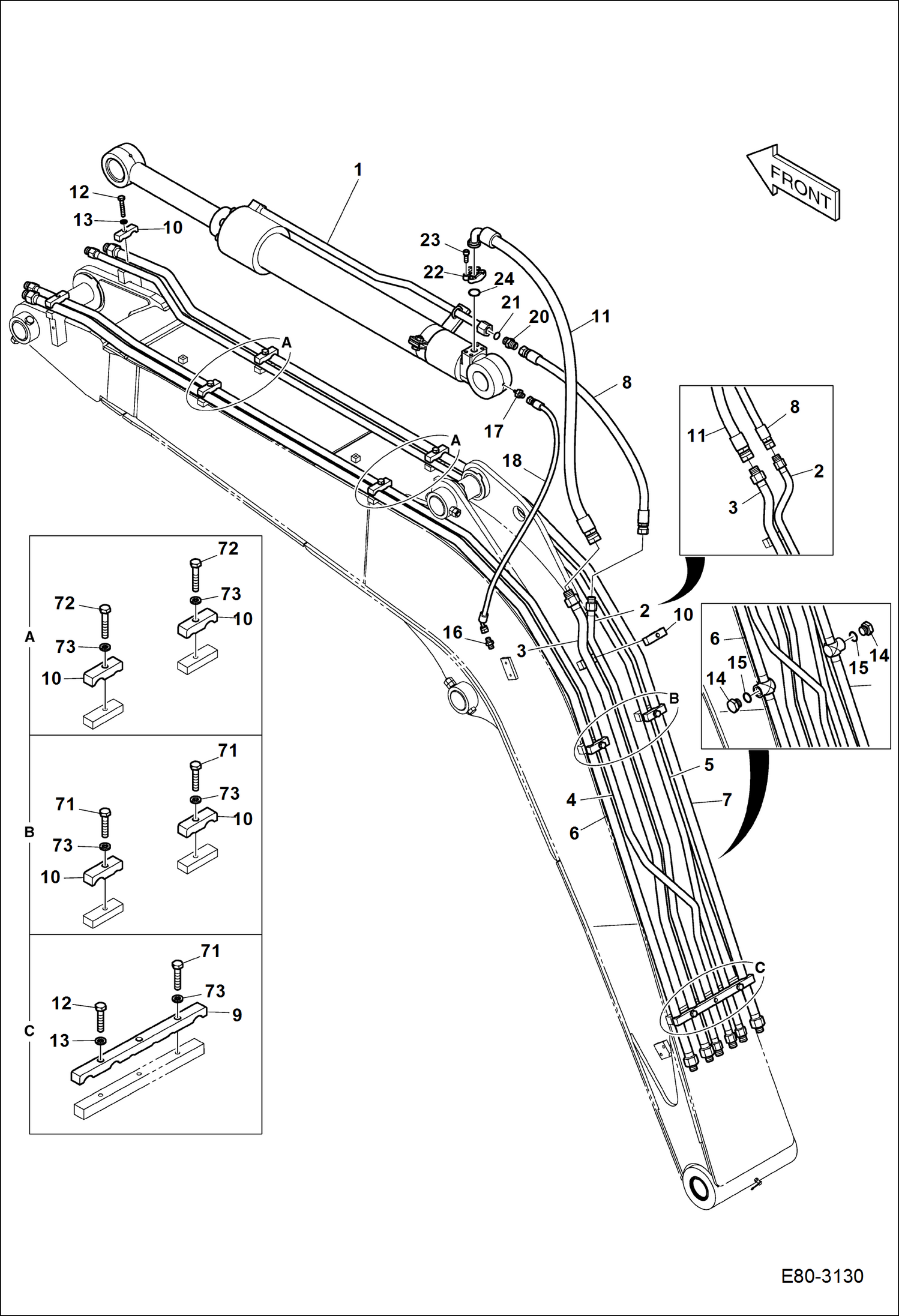

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Boom) (Arm Cylinder) HYDRAULIC SYSTEM

1

7023693

CYLINDER, ARM Was 7006028 - B

1

7012247

CYLINDER;ARM See Illustration ARM CYLINDER/ E80-4330

2

7006030

TUBELINE

3

7006031

TUBELINE

4

7006032

TUBELINE

5

7006033

TUBELINE

6

7006034

TUBELINE

7

7006035

TUBELINE

8

7023691

HOSE, HYD Was 7005151 - A

9

7006036

CLAMP

10

7006037

CLAMP

11

7023692

HOSE, HYD Was 7005150 - A

12

7007674

BOLT

13

7007835

WASHER SPRING

14

7004733

PLUG

15

7007916

O-RING

16

7004667

ADAPTER

17

7004669

ADAPTER

18

7005177

HOSE

20

7004699

ADAPTER

21

7007911

O-RING

22

7004777

FLANGE

23

7007748

BOLT SOCKET M10X1.5X30

24

7004631

O-RING

71

7007674

BOLT

72

7007672

BOLT

73

7007835

WASHER SPRING
