HYDRAULIC CIRCUITRY (Arm 1.7 m) (3rd Auxiliary/Clamshell)

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Arm 1.7 m) (3rd Auxiliary/Clamshell) HYDRAULIC SYSTEM

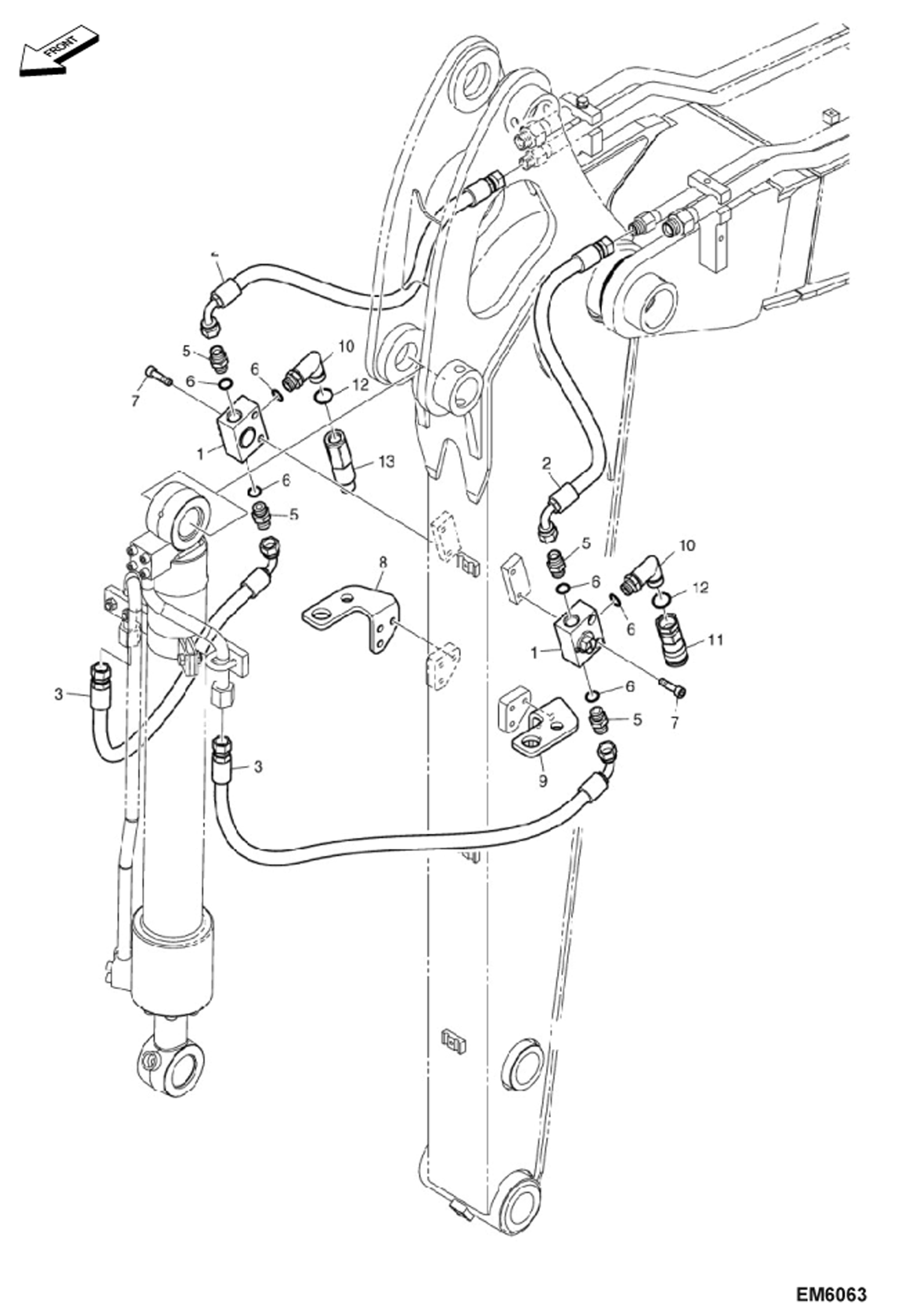

Схема запчастей Bobcat E80 - HYDRAULIC CIRCUITRY (Arm 1.7 m) (3rd Auxiliary/Clamshell) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7004981

VALVE SWITCH

2

7005444

HOSE

3

7005462

HOSE

5

7004699

ADAPTER

6

7007911

O-RING

7

7007751

BOLT, SOCKET M10X1.5X40

8

BRACKET NLA Was 7009946 - A

8

7022846

BRACKET

9

BRACKET NLA Was 7009945 - A

9

7022847

BRACKET

10

7009943

ELBOW

11

6672960

COUPLER, FF FEMALE

12

7009947

O-RING

13

6674688

COUPLER, FF MALE
