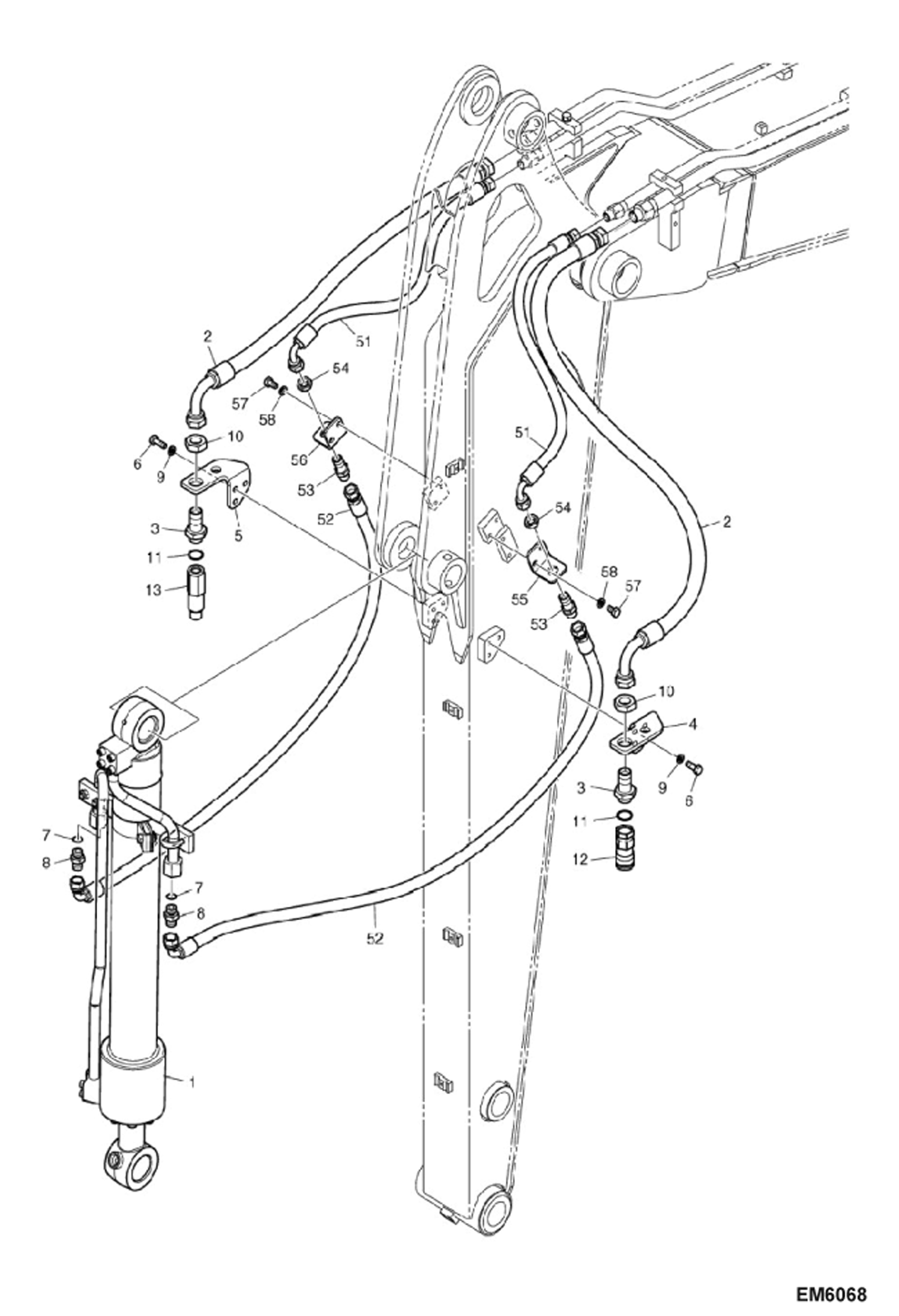

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Arm 2.25 m) HYDRAULIC SYSTEM

1

7012249

CYLINDER;BUCKET

2

7005187

HOSE

3

7015433

ADAPTER

4

BRACKET NLA Was 7009945 - A

4

7022847

BRACKET

5

BRACKET NLA Was 7009946 - A

5

7022846

BRACKET

6

7007669

BOLT

7

7007911

O-RING

8

7004699

ADAPTER

9

7007835

WASHER SPRING

10

7015434

NUT

11

7009947

O-RING

12

6672960

COUPLER, FF FEMALE

13

6674688

COUPLER, FF MALE

51

7010540

HOSE

52

7010541

HOSE

53

7005566

ADAPTER

54

7003876

NUT

55

7005925

BRACKET LH

56

7005926

BRACKET RH

57

7007626

BOLT

58

7007835

WASHER SPRING
