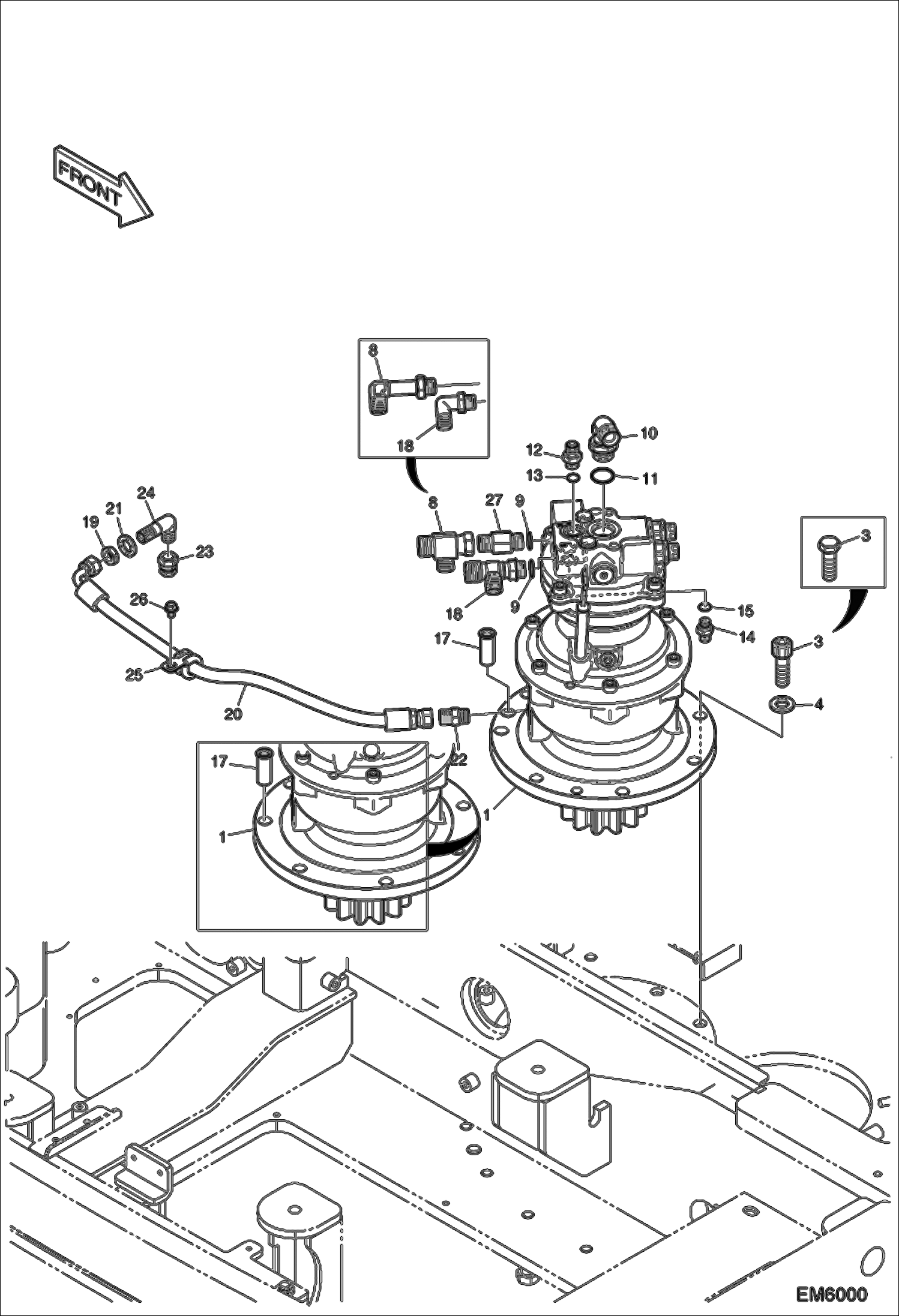

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Slew Motor & Case Drain) HYDRAULIC SYSTEM

1

MOTOR, SLEW See Illustration SLEW MOTOR/ E80-4120 NLA Was 7021369 - A

1

7023984

MOTOR, SLEW See Illustration SLEW MOTOR/ EM9541 Was 7024784 - A

3

7007703

BOLT

3

7007774

BOLT

4

7004507

WASHER PLAIN

4

7007839

WASHER SPRING

8

7004718

ADAPTER

8

7024782

FITTING, ELBOW

9

7007911

O-RING

10

7004723

ELBOW

10

7004706

ELBOW

11

7007916

O-RING

11

7007917

O-RING

12

7004700

ADAPTER

13

7007909

O-RING

14

7004683

ADAPTER

15

7007906

O-RING

17

7006649

PIN

18

7004710

ELBOW

18

7024783

FITTING, ELBOW

19

7010969

NUT Was 7003875 - A

20

7005363

HOSE PF3/8-630L

21

7007822

WASHER SPRING

22

7004668

ADAPTER

23

7004765

PLUG

24

7005570

ELBOW

25

7003895

CLIP

26

7005629

BOLT

27

7004691

ADAPTER
