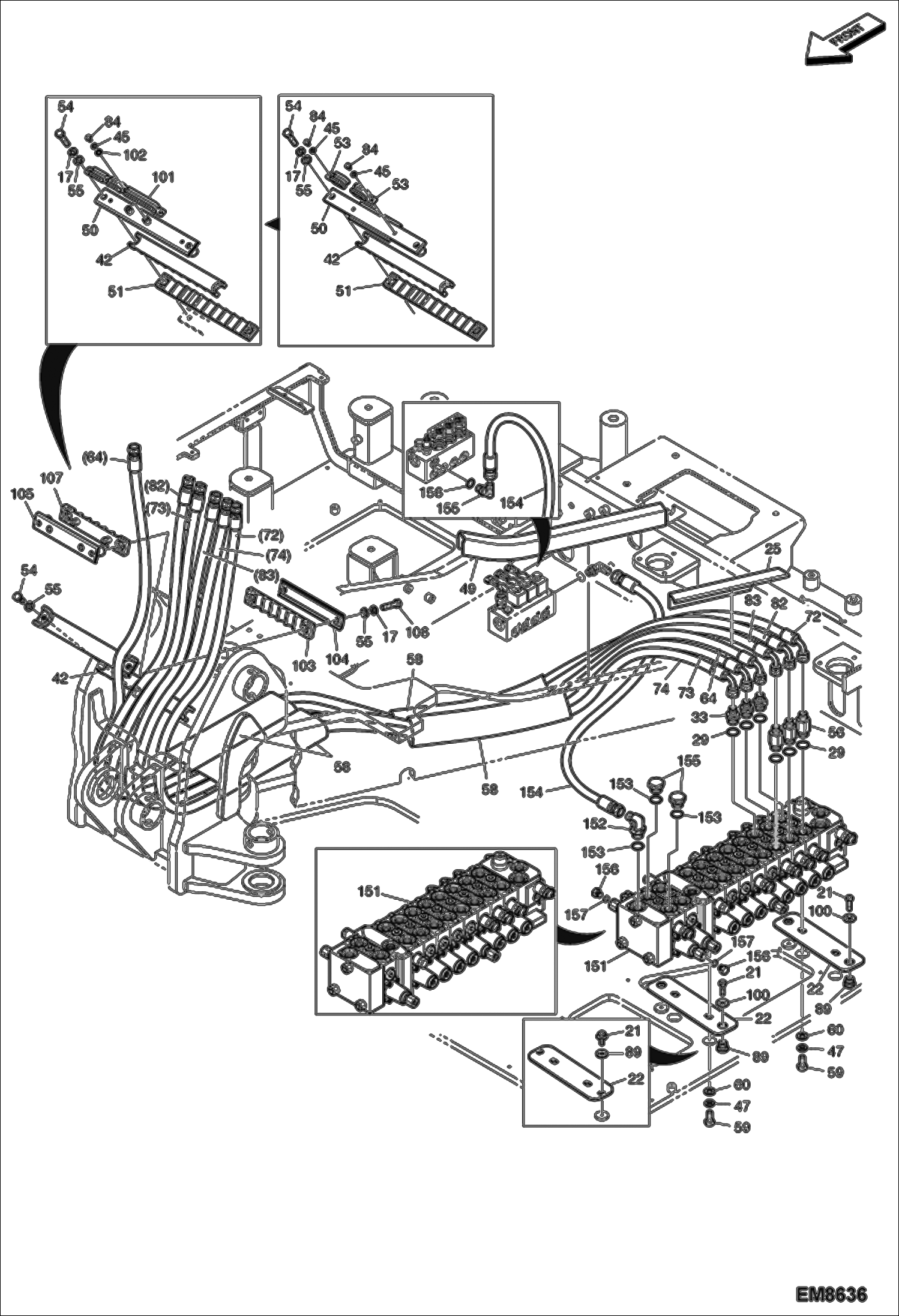

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Work Hoses) (Arm, Boom, Bucket) HYDRAULIC SYSTEM

17

7007836

WASHER SPRING M12

21

7005120

BOLT, SET

21

7007631

BOLT M10X1.5X35

22

7006277

PLATE

22

7021861

PLATE

25

7006601

PAD

29

7004628

O-RING

33

7005542

ADAPTER

42

CLAMP, HOSE NLA Was 7006541 - A

42

7021809

CLAMP, HOSE

45

7007829

WASHER

45

7007829

WASHER

47

7007837

WASHER

49

7006438

PAD

50

PLATE NLA Was 7008225 - A

50

PLATE NLA Was 7021832 - A

50

7021833

PLATE

51

CLAMP, HOSE NLA Was 7006542 - A

51

7021808

CLAMP, HOSE

53

7003902

CLIP

54

7007686

BOLT Was 7007685 - B

55

7007820

WASHER SPRING

55

7007820

WASHER SPRING

56

7005546

ADAPTER

58

7005639

GUARD

58

7005639

GUARD

59

7007643

BOLT

60

7007821

WASHER

64

7011040

VALVE, BPV Was 7005423 - C

72

7011045

HOSE, HYD Was 7005424 - C

73

7011042

HOSE, HYD Was 7005425 - C

73

7020968

HOSE HYDRAULIC ASSY PF1/2-3320L

74

7011043

HOSE, HYD Was 7005427 - C

74

7011046

HOSE, HYD

82

HOSE, HYD NLA Was 7005426 - A

82

HOSE, HYD NLA Was 7021855 - A

82

HOSE, HYD NLA Was 7011045 - A

82

7020969

HOSE HYDRAULIC ASSY PF1/2-3380L

83

7011046

HOSE, HYD Was 7005428 - C

83

7016123

HOSE, HYD

84

7007612

BOLT

84

7007612

BOLT

89

7006765

PLATE SHEET ANTI VIBRATION

89

7021821

BUSHING, SPACER

100

7021845

WASHER

101

7021814

CLIP

102

7007816

WASHER

103

7020687

CLAMP,HOSE

104

7020688

PLATE

105

7020689

PLATE

106

7007686

BOLT Was 7007685 - A

107

7020690

CLAMP,HOSE

151

7012018

MAIN CONTROL VALVE See Illustration CONTROL VALVE/ E80-4420 Was 7006686 - D

152

7008144

ELBOW

153

7004628

O-RING

153

7004628

O-RING

154

7008146

HOSE, PF1/2-1100L

154

7015951

HOSE

155

7004710

ELBOW

155

7021824

PLUG

156

7007911

O-RING

156

7004735

PLUG

157

7007961

O-RING
