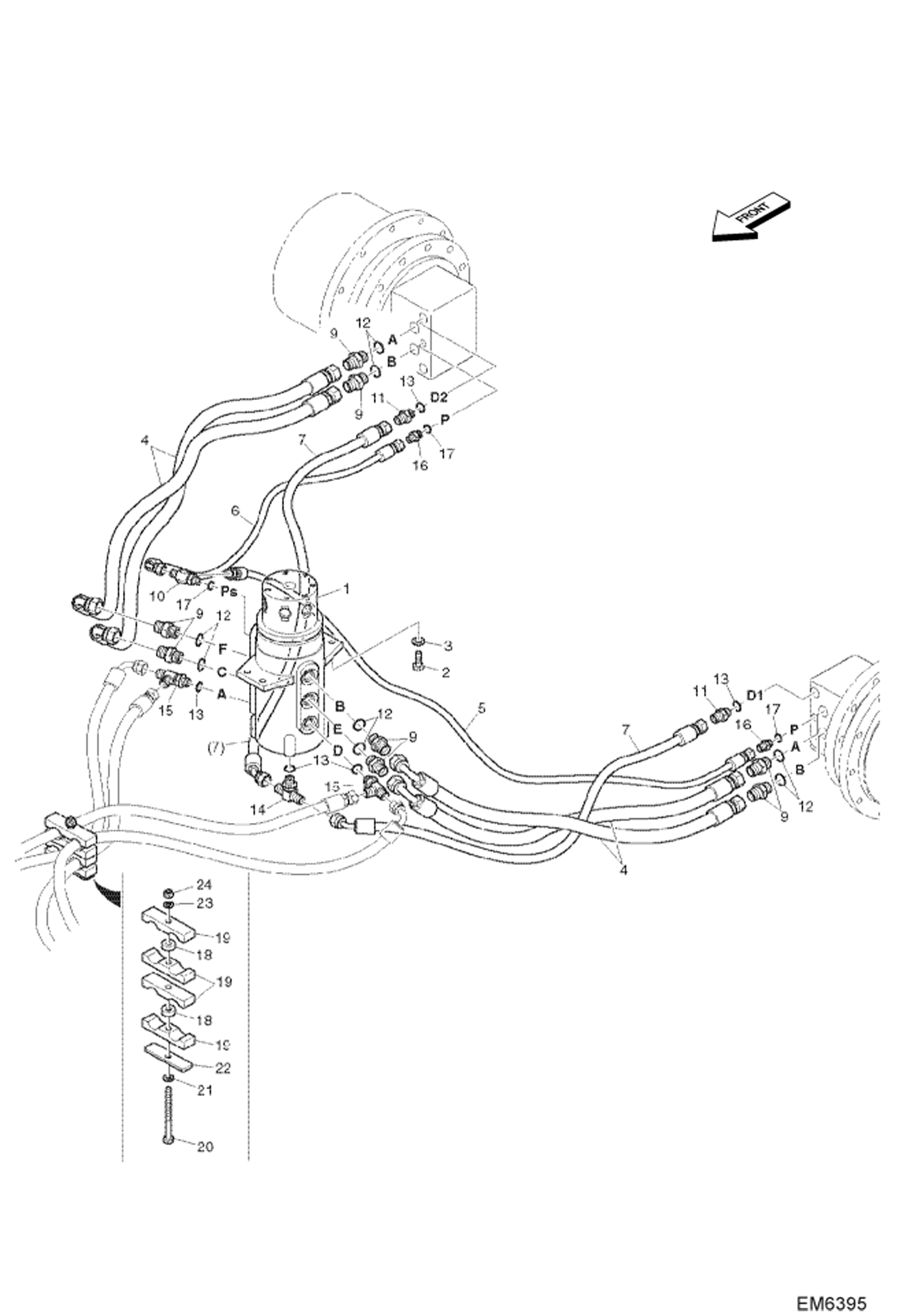

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Lower) (Drive) HYDRAULIC SYSTEM

1

7006067

SWIVEL, ASSY See Illustration SWIVEL JOINT/ E80-4280

2

7007669

BOLT

3

7007836

WASHER SPRING M12

4

7005182

HOSE

5

7005511

HOSE

6

7005445

HOSE PF1/4-1380L

7

7005276

HOSE PF3/8-1300L

9

7004699

ADAPTER

10

7004738

TEE

11

7004700

ADAPTER

12

7007911

O-RING

13

7007909

O-RING

14

7004751

TEE

15

7004741

TEE

16

7004683

ADAPTER

17

7007906

O-RING

18

7003860

SPACER

19

7004587

CLAMP

20

7007680

BOLT

21

7007835

WASHER SPRING

22

7006518

PLATE

23

7013265

WASHER, PLAIN Was 7007825 - A

24

7005682

NUT LOCK
